ANDREWS

485 Bolt-In Cam

Gyártói kód217485
TermékkódCHM-ANDREWS-217485
  • Highest lift bolt-in chain drive cam available for use with stock valve springs
  • Bolt-in cam for 107” engines and larger

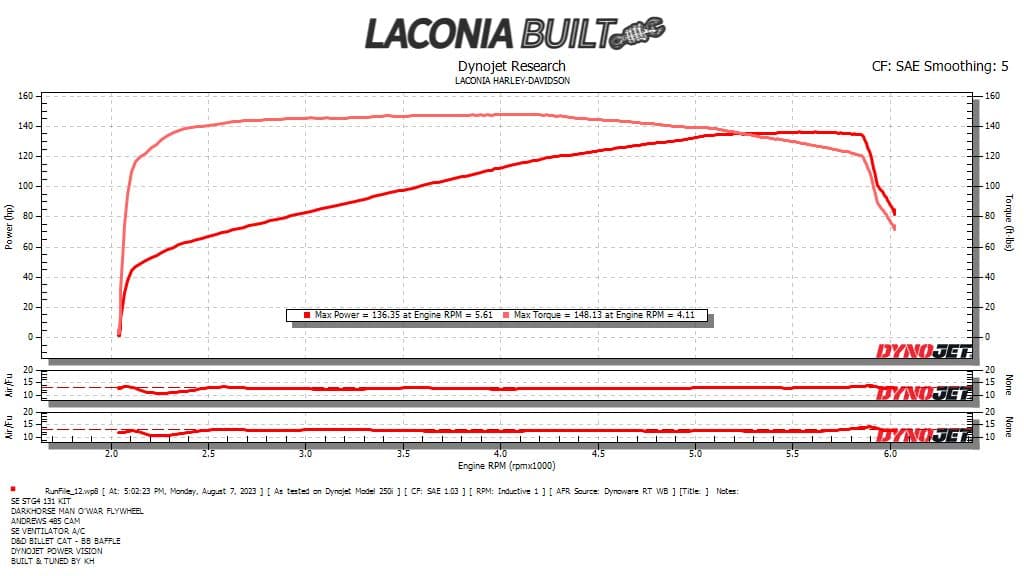

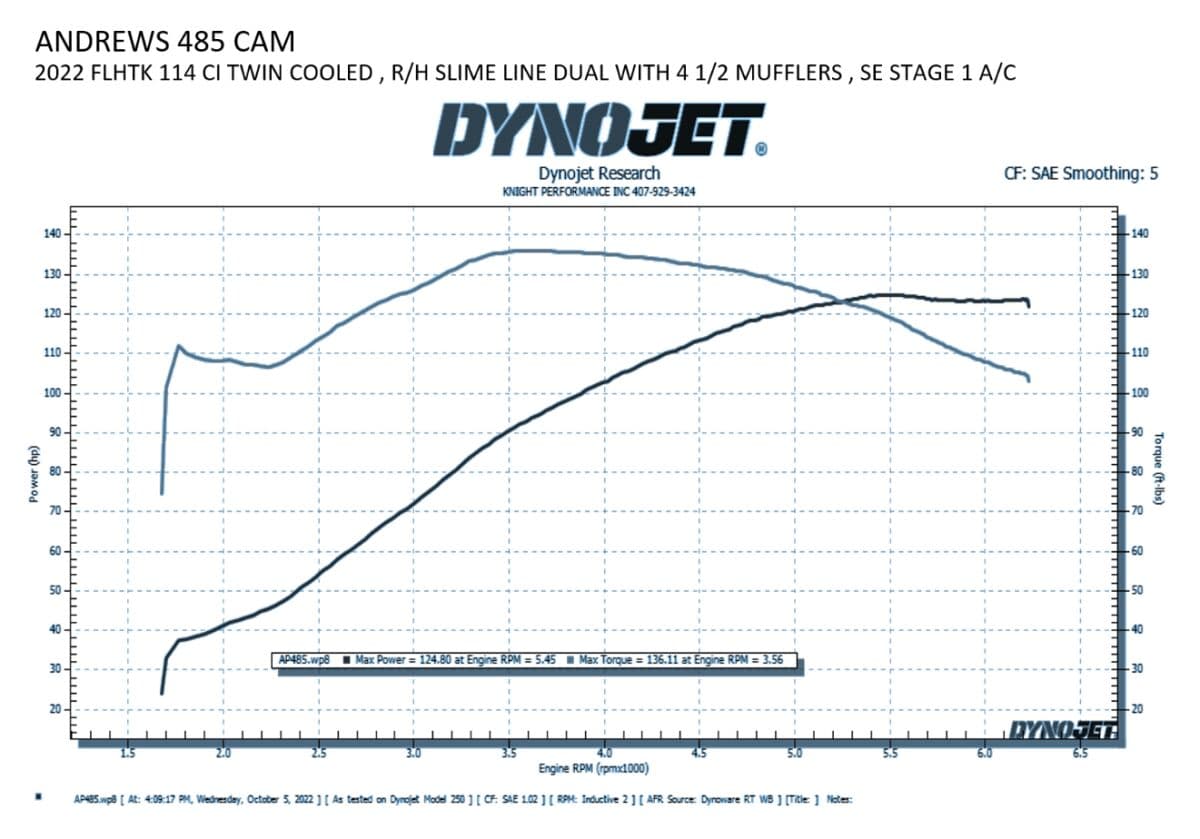

  • Excellent low to mid rpm power (1500 - 5600+ rpm)
  • Cam Specs are measured in the engine on the lifter @ 0.050" using a 1.61 rockearm ratio.


    • Jármű-kompatibilitás

    Válaszd ki a járműved a felső sávban, hogy ellenőrizd, illik-e ez az alkatrész.

    Ez az alkatrész 69 motorkerékpár-modellel kompatibilis.
    • HARLEY DAVIDSON FLDE 1750 ABS2018–2020
    • HARLEY DAVIDSON FLFB 1750 ABS2018–2020
    • HARLEY DAVIDSON FLFBS 1868 ABS2018–2024
    • HARLEY DAVIDSON FLFBS 1923 ABS2025
    • HARLEY DAVIDSON FLH 1868 ABS2021
    • HARLEY DAVIDSON FLHC 1750 ABS2018–2022
    • HARLEY DAVIDSON FLHCS 1868 ABS2018–2024
    • HARLEY DAVIDSON FLHCS 1923 ABS2025
    • HARLEY DAVIDSON FLHR 17502017–2019
    • HARLEY DAVIDSON FLHR 1750 ABS2017–2022
    • HARLEY DAVIDSON FLHRC 1750 ABS2017–2019
    • HARLEY DAVIDSON FLHRXS 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHRXS 1868 ABS2019–2024
    • HARLEY DAVIDSON FLHT 1750 ABS2019–2022
    • HARLEY DAVIDSON FLHTCU 1750 ABS2017–2019
    • HARLEY DAVIDSON FLHTCUTG 17502017–2018
    • HARLEY DAVIDSON FLHTCUTG 1750 ABS2019
    • HARLEY DAVIDSON FLHTCUTG 1868 ABS2020–2024
    • HARLEY DAVIDSON FLHTCUTGSE 1923 ABS2020–2022
    • HARLEY DAVIDSON FLHTK 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHTK 1868 ABS2019–2024
    • HARLEY DAVIDSON FLHTKL 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHTKL 1868 ABS2019
    • HARLEY DAVIDSON FLHTKSE 1868 ABS2017
    • HARLEY DAVIDSON FLHTKSE 1923 ABS2018–2021
    • HARLEY DAVIDSON FLHX 17502017–2019
    • HARLEY DAVIDSON FLHX 1750 ABS2017–2023
    • HARLEY DAVIDSON FLHX 1923 ABS2025
    • HARLEY DAVIDSON FLHXS 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHXS 1868 ABS2019–2023
    • HARLEY DAVIDSON FLHXSE 1868 ABS2017
    • HARLEY DAVIDSON FLHXSE 1923 ABS2018–2022
    • HARLEY DAVIDSON FLHXST 1923 ABS2022–2023
    • HARLEY DAVIDSON FLRT 17502017–2018
    • HARLEY DAVIDSON FLRT 1750 ABS2019
    • HARLEY DAVIDSON FLRT 1868 ABS2020–2024
    • HARLEY DAVIDSON FLSB 1750 ABS2018–2024
    • HARLEY DAVIDSON FLSL 1750 ABS2018–2021
    • HARLEY DAVIDSON FLSTFI 1923 ABS2025
    • HARLEY DAVIDSON FLTRK 1868 ABS2020–2024
    • HARLEY DAVIDSON FLTRKSE 1923 ABS2022–2023
    • HARLEY DAVIDSON FLTRT 1868 ABS2023–2024
    • HARLEY DAVIDSON FLTRU 1750 ABS2017–2018
    • HARLEY DAVIDSON FLTRU 1868 ABS2019
    • HARLEY DAVIDSON FLTRX 17502017–2019
    • HARLEY DAVIDSON FLTRX 1750 ABS2017–2023
    • HARLEY DAVIDSON FLTRX 1923 ABS2025
    • HARLEY DAVIDSON FLTRXS 1750 ABS2017–2018
    • HARLEY DAVIDSON FLTRXS 1868 ABS2019–2023
    • HARLEY DAVIDSON FLTRXSE 1923 ABS2018–2022
    • HARLEY DAVIDSON FLTRXST 1923 ABS2022–2023
    • HARLEY DAVIDSON FXBB 1750 ABS2018–2020
    • HARLEY DAVIDSON FXBB 1923 ABS2025
    • HARLEY DAVIDSON FXBBS 18682021
    • HARLEY DAVIDSON FXBBS 1868 ABS2021–2024
    • HARLEY DAVIDSON FXBR 1750 ABS2018–2020
    • HARLEY DAVIDSON FXBR 1923 ABS2023, 2025
    • HARLEY DAVIDSON FXBRS 1868 ABS2018–2022
    • HARLEY DAVIDSON FXD 1923 ABS2026
    • HARLEY DAVIDSON FXDR 1868 ABS2019
    • HARLEY DAVIDSON FXDRS 1868 ABS2020
    • HARLEY DAVIDSON FXFB 1750 ABS2018–2019, 2021
    • HARLEY DAVIDSON FXFBS 1868 ABS2018–2023
    • HARLEY DAVIDSON FXLR 1750 ABS2018–2020
    • HARLEY DAVIDSON FXLRS 1868 ABS2020–2021
    • HARLEY DAVIDSON FXLRS 1923 ABS2022–2023, 2025
    • HARLEY DAVIDSON FXLRST 1923 ABS2022–2023, 2025
    • HARLEY DAVIDSON FXST 17502021
    • HARLEY DAVIDSON FXST 1750 ABS2020–2024
    Készleten
    15 db készleten
    Szállítás 1-3 munkanapon belül
    RON 1,594.68
    • Biztonságos online fizetésA kártyás fizetéseket biztonságosan a Stripe dolgozza fel.
      stripe
    • Fizess részletekben a KlarnávalVálaszd a Klarnát a fizetésnél.
      Klarna.

    Specificații

    Specificații

    TypeBolt-In
    Grind485
    UnitsEach
    Intake Lift0,485"
    Intake Open7,5°
    Exhaust Lift0,485"
    Exhaust Open52,5°
    Intake Close29,5°
    Product NameCam
    Riding StyleStreet
    Exhaust Close14,5°
    Research ValueLevel 2
    Intake Duration217°
    Exhaust Duration247°
    Intake Lift at TDC0,116"
    Exhaust Lift at TDC0,145"
    Intake Lift Imperial0.485"
    Intake Open Imperial7.5°
    Exhaust Lift Imperial0.485"
    Exhaust Open Imperial52.5°
    Intake Close Imperial29.5°
    Exhaust Close Imperial14.5°
    Intake Lobe Centerline101°
    Exhaust Lobe Centerline109°
    Intake Duration Imperial217°
    Exhaust Duration Imperial247°
    Intake Lift at TDC Imperial0.116"
    Exhaust Lift at TDC Imperial0.145"
    Intake Lobe Centerline Imperial101°
    Exhaust Lobe Centerline Imperial109°
