KOSO NORTH AMERICA

HD-03X | TFT Gauge Set

Gyártói kódBA064930
TermékkódCHM-KOSONORT-BA064930
  • Plug and play
  • Color customization with daytime and nighttime modes
  • Features a smartphone integration that gives full control of dashboard directly from the device
  • Connects gauges to phone with the KOSO K Link app and monitor real-time data of the bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance, horsepower, tire pressure and more
  • Can see vehicle’s location on the app and never have to search for it again in crowded places

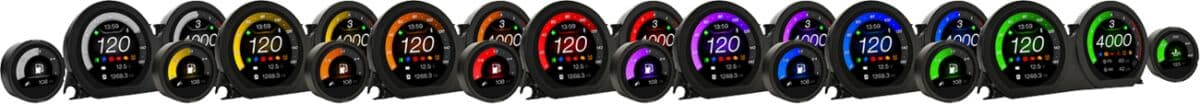

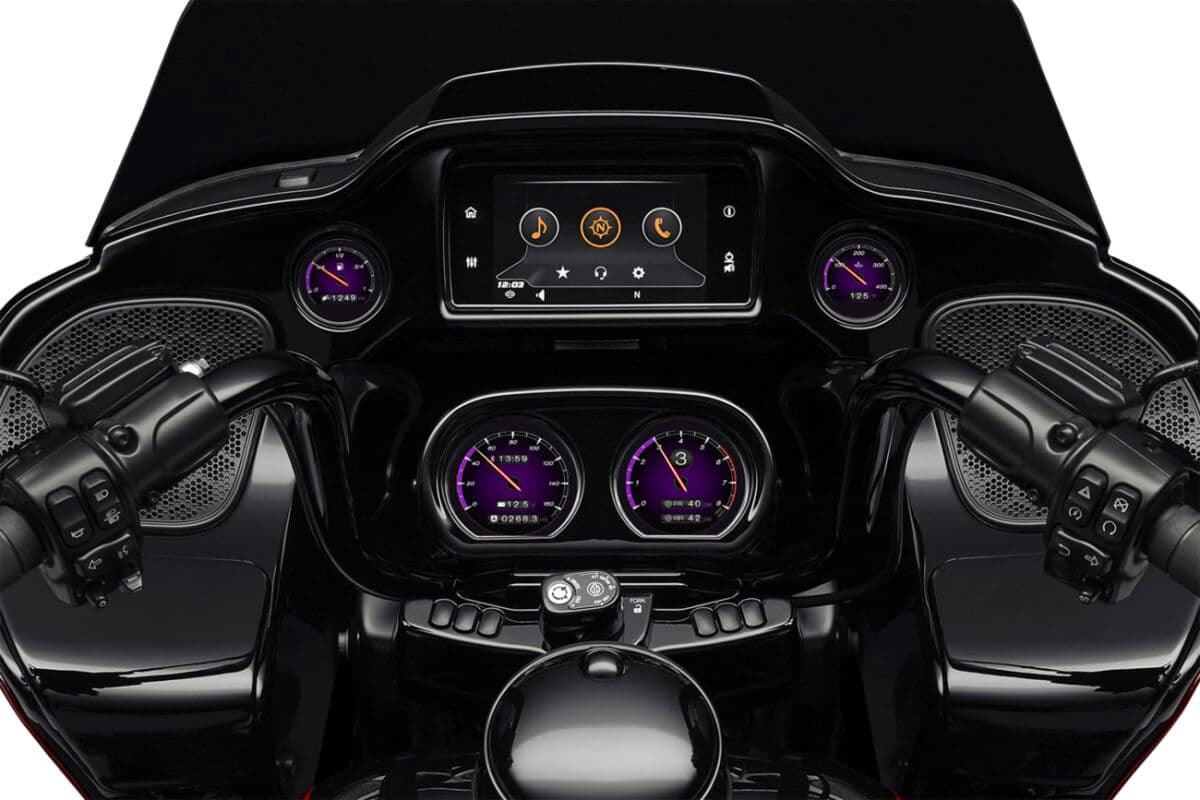

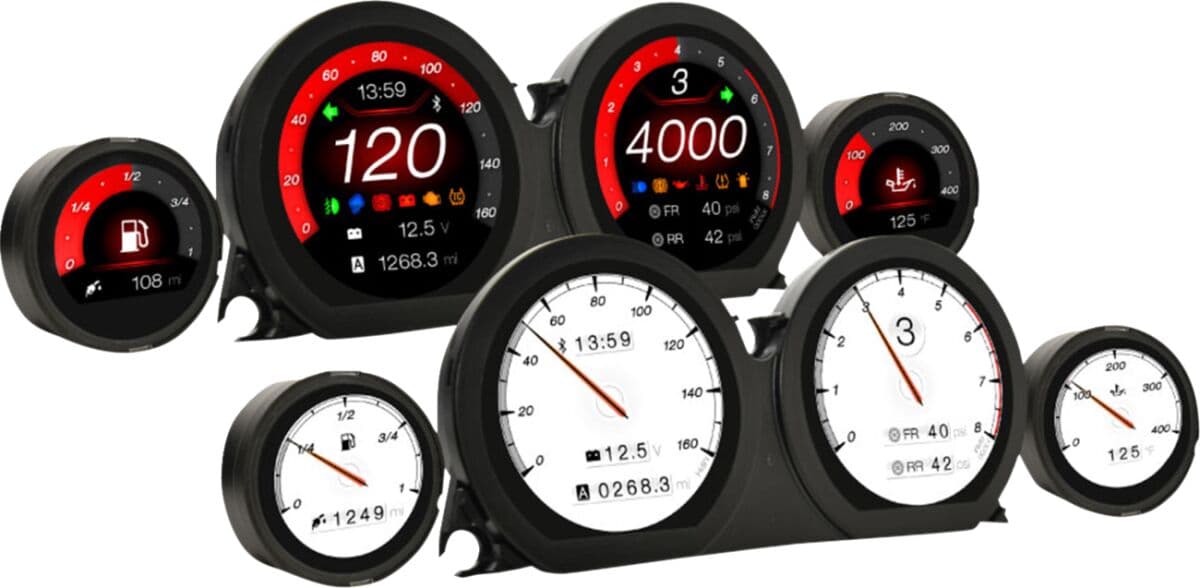

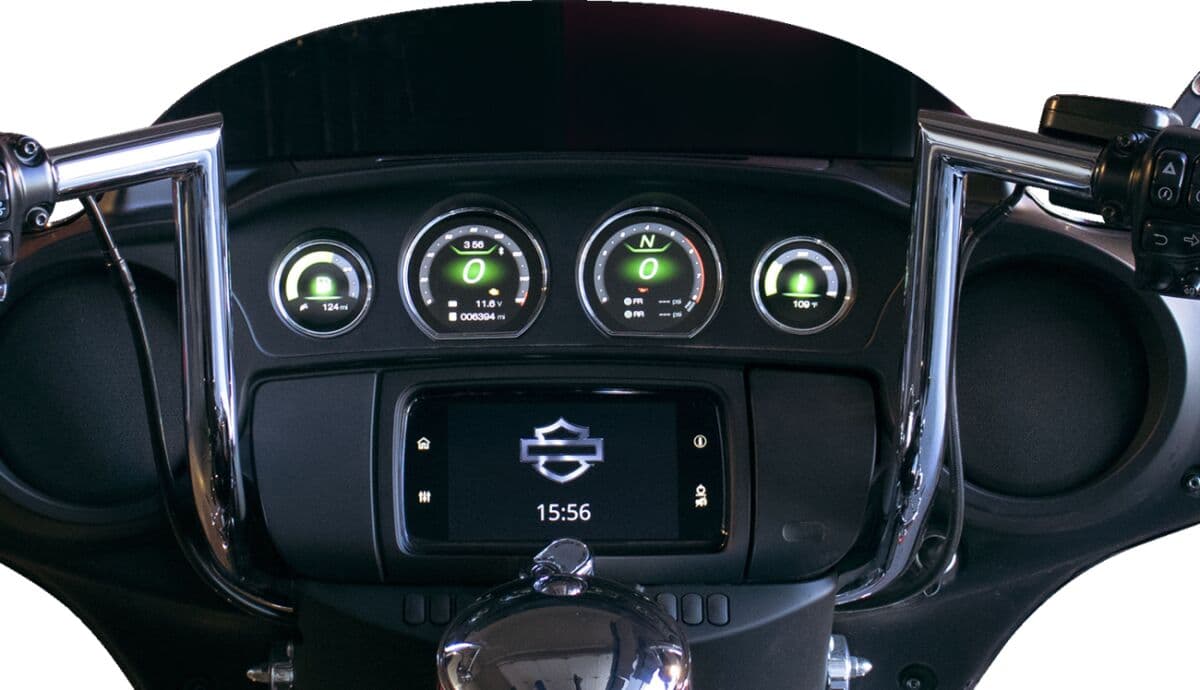

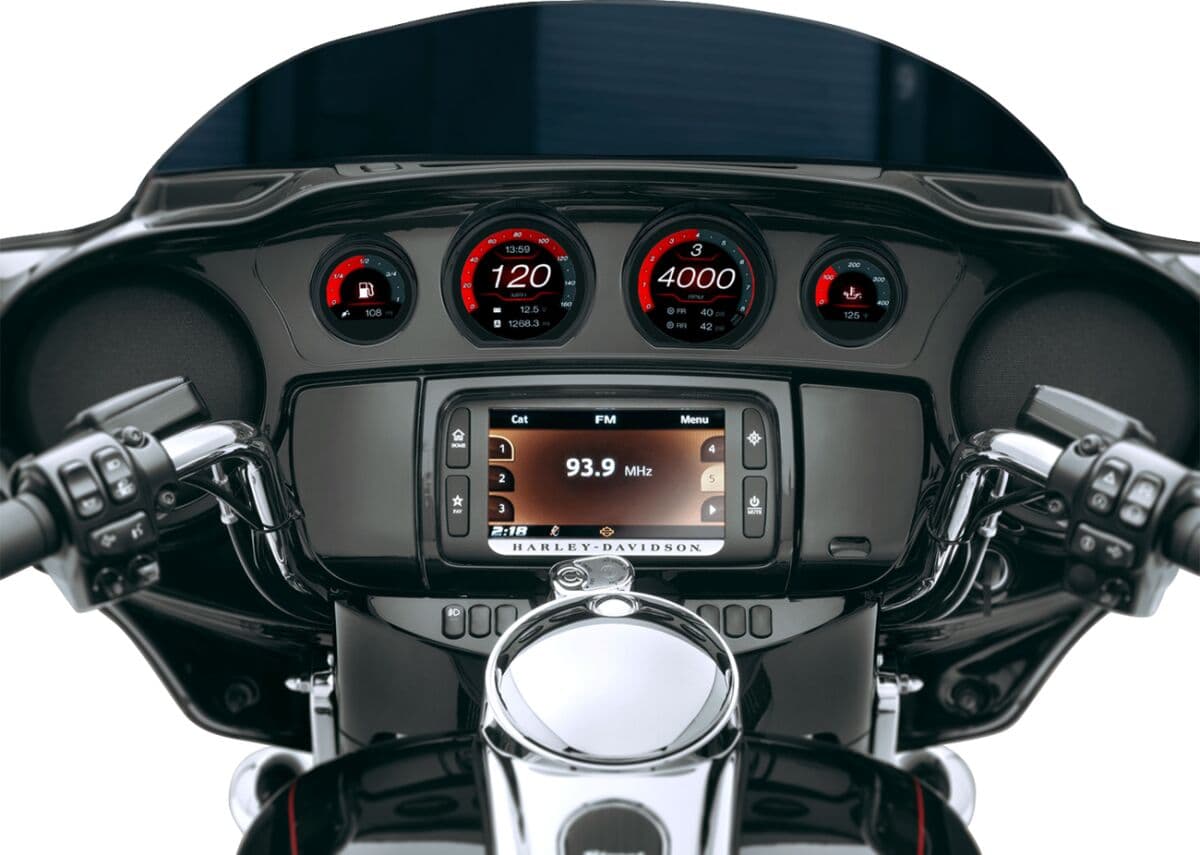

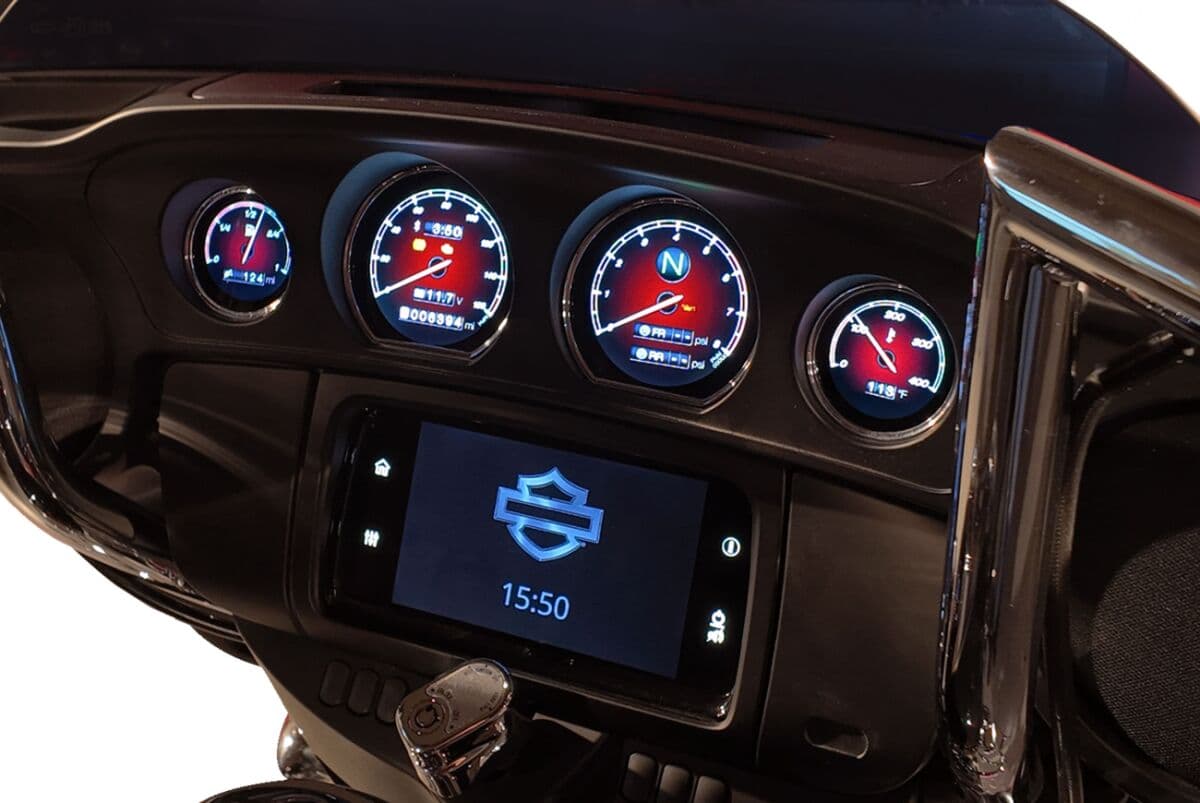

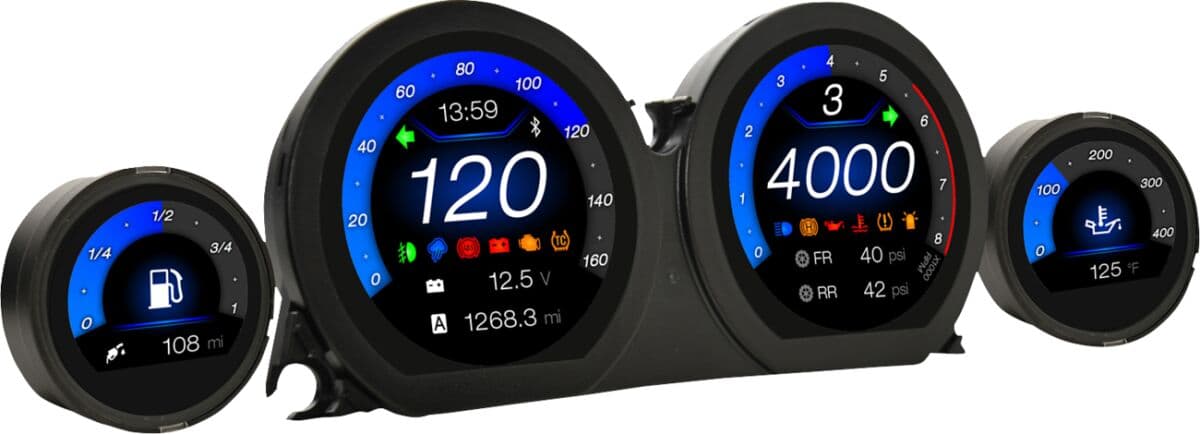

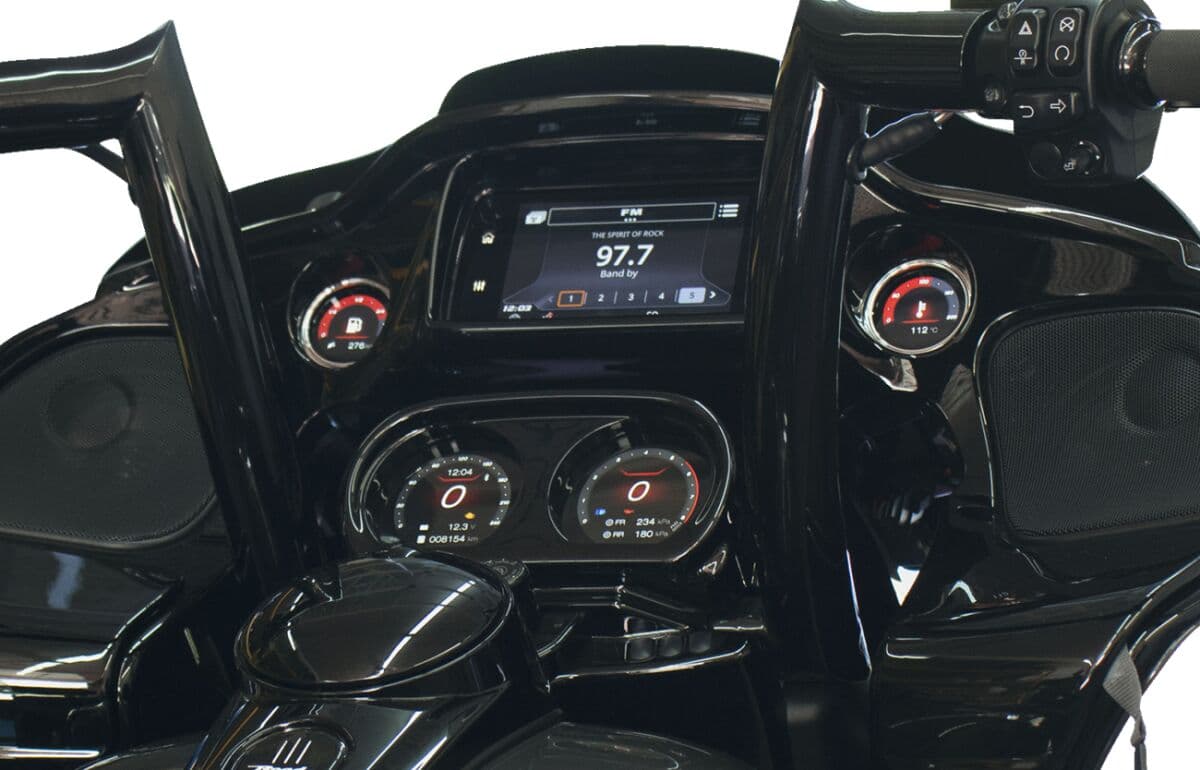

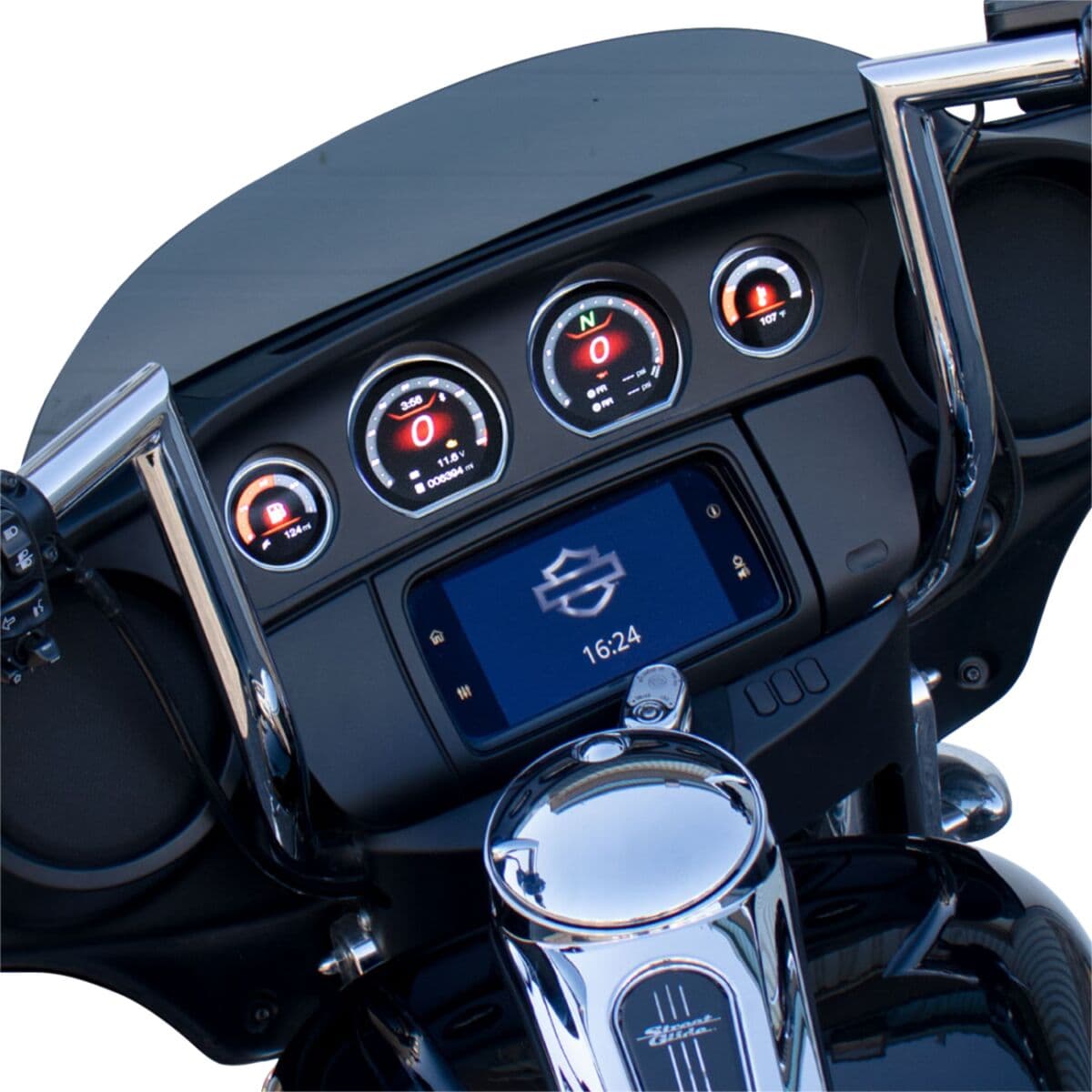

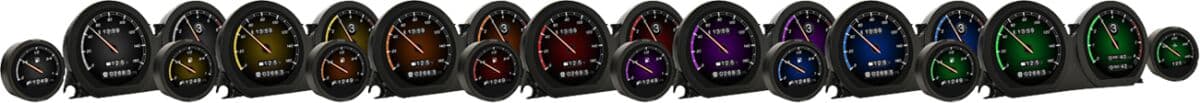

  • Match your motorcycle’s style by instantly changing between the analog and digital interface, as well as seven different backlight colors, providing up to 14 unique display combinations
  • K Link app also allows to check system health and maintenance with its diagnostics feature
  • Optional air pressure sensor for models equipped with air suspension is available separately
  • Specifications:
  • Tachometer (0 - 8,000), RPM Shift Light (1,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM)
  • Speedometer (0 - 199 MPH), Maximum Speed Record (0 - 199 MPH), Overspeed Warning (20 - 199 MPH)
  • Odometer (0 - 999,999 miles), Tripmeter A/B (0 - 9,999 miles), Mileage Maintenance (300 - 10,000 miles)
  • Engine Temperature (40°F - 572°F), Oil Temperature Meter (32°F - 248°F), Maximum Oil Temperature Record (40°F - 572°F) Effective Temperature Range (-4°F - 140°F)
  • Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)
  • To access settings on CVO models, must turn on the run/stop switch so that the bike will not turn off. Then make adjustments to the settings on the gauge.


    • Optional air pressure sensor kit sold separately (part # 2212-0901).

    Jármű-kompatibilitás

    Válaszd ki a járműved a felső sávban, hogy ellenőrizd, illik-e ez az alkatrész.

    Ez az alkatrész 28 motorkerékpár-modellel kompatibilis.
    • HARLEY DAVIDSON FLHTCU 1690 ABS2014–2016
    • HARLEY DAVIDSON FLHTCU 1750 ABS2017–2019
    • HARLEY DAVIDSON FLHTCUL 1690 ABS2015–2016
    • HARLEY DAVIDSON FLHTCUTG 16902014–2016
    • HARLEY DAVIDSON FLHTCUTG 17502017–2018
    • HARLEY DAVIDSON FLHTCUTG 1750 ABS2019
    • HARLEY DAVIDSON FLHTCUTG 1868 ABS2020–2024
    • HARLEY DAVIDSON FLHTK 1690 ABS2014–2016
    • HARLEY DAVIDSON FLHTK 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHTK 1868 ABS2019–2023
    • HARLEY DAVIDSON FLHTKL 1690 ABS2016
    • HARLEY DAVIDSON FLHTKL 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHTKL 1868 ABS2019
    • HARLEY DAVIDSON FLHX 16902014–2016
    • HARLEY DAVIDSON FLHX 1690 ABS2014–2016
    • HARLEY DAVIDSON FLHX 17502017–2019
    • HARLEY DAVIDSON FLHX 1750 ABS2017–2023
    • HARLEY DAVIDSON FLHXS 1690 ABS2014–2016
    • HARLEY DAVIDSON FLHXS 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHXS 1868 ABS2019–2023
    • HARLEY DAVIDSON FLTRT 1868 ABS2023–2024
    • HARLEY DAVIDSON FLTRX 16902015–2016
    • HARLEY DAVIDSON FLTRX 1690 ABS2015–2016
    • HARLEY DAVIDSON FLTRX 17502017–2019
    • HARLEY DAVIDSON FLTRX 1750 ABS2017–2023
    • HARLEY DAVIDSON FLTRXS 1690 ABS2015–2016
    • HARLEY DAVIDSON FLTRXS 1750 ABS2017–2018
    • HARLEY DAVIDSON FLTRXS 1868 ABS2019–2023
    Készleten
    15 db készleten
    Szállítás 1-3 munkanapon belül
    RON 6,506.20
    • Biztonságos online fizetésA kártyás fizetéseket biztonságosan a Stripe dolgozza fel.
      stripe
    • Fizess részletekben a KlarnávalVálaszd a Klarnát a fizetésnél.
      Klarna.

    Specificații

    Specificații

    TypeMulti-Function
    Depth44,45 mm (1-3/4")| 51 mm (2")
    ModelHD-03X
    StyleElectronic
    UnitsKit
    Width70 mm (2-3/4")| 95 mm (3-3/4")
    Length27 cm (10-5/8")| 70 mm (2-3/4")
    Depth Metric44.45 mm| 51 mm
    Product NameGauge
    Riding StyleStreet
    Width Metric70 mm| 95 mm
    Housing ColorBlack
    Length Metric27 mm| 70 mm
    Depth Imperial1-3/4"| 2"
    Research ValueFinalized
    Width Imperial2-3/4"| 3-3/4"
    Length Imperial10-5/8"| 2-3/4"
