LEGEND SUSPENSION

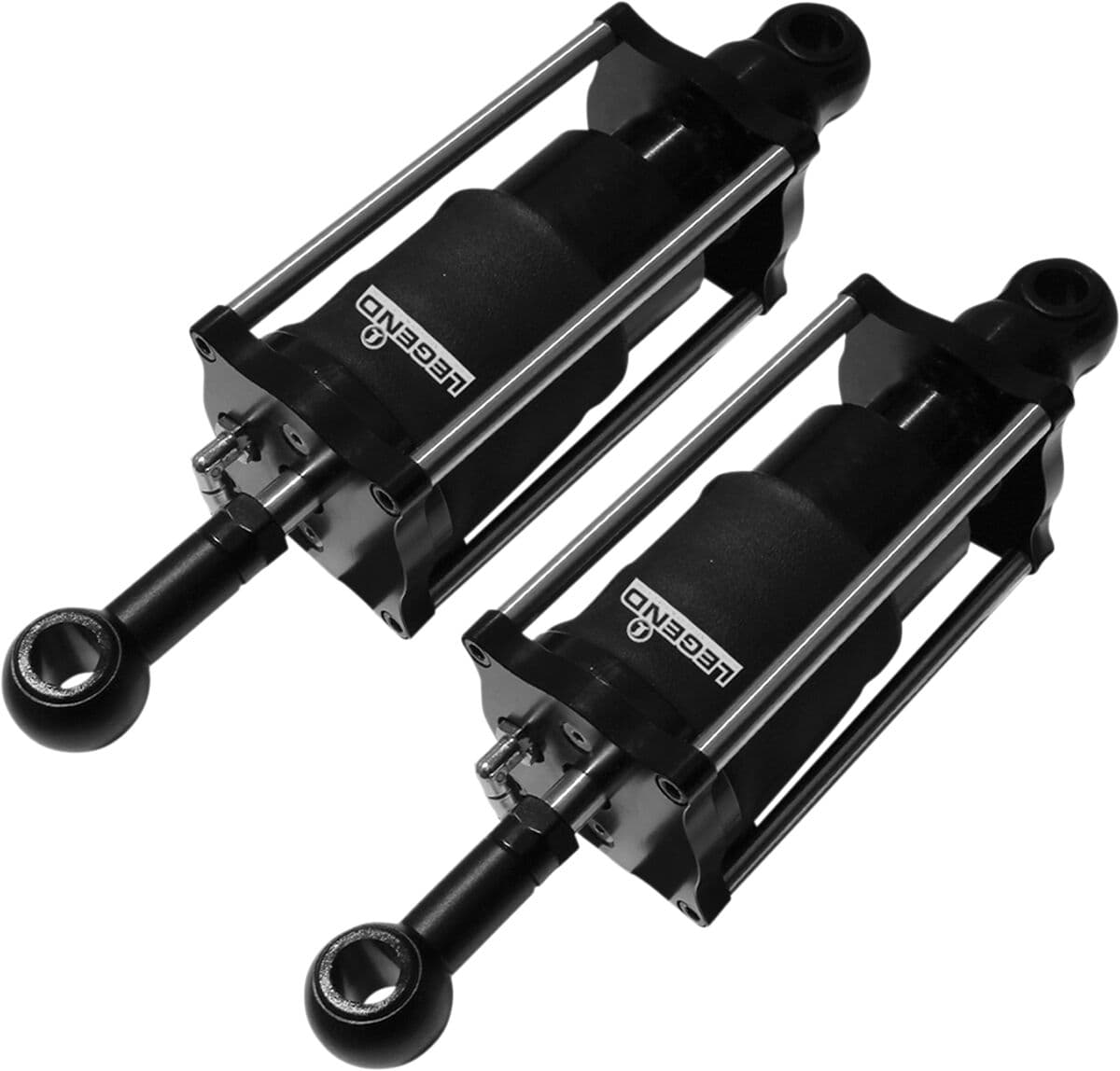

Legend Air Suspension For Softail Models

Gyártói kód1311-0144
TermékkódCHM-LEGENDSU-1311-0144
  • Legend AIR Suspensions systems sets the high mark in ultimate ride quality
  • Exclusive Aramid Fiber air spring technology provides spring rate adjustability
  • Air springs maximize wheel travel and adjust to any desired ride height
  • Type III hard-coat black anodized CNC machined aluminum bodies
  • Low friction sealing system and slide bearings for improved performance and feel
  • High flow piston reacts quickly for improved fluid flow management
  • Deflective disc valving self-adjusts to frequency and ensures controlled performance

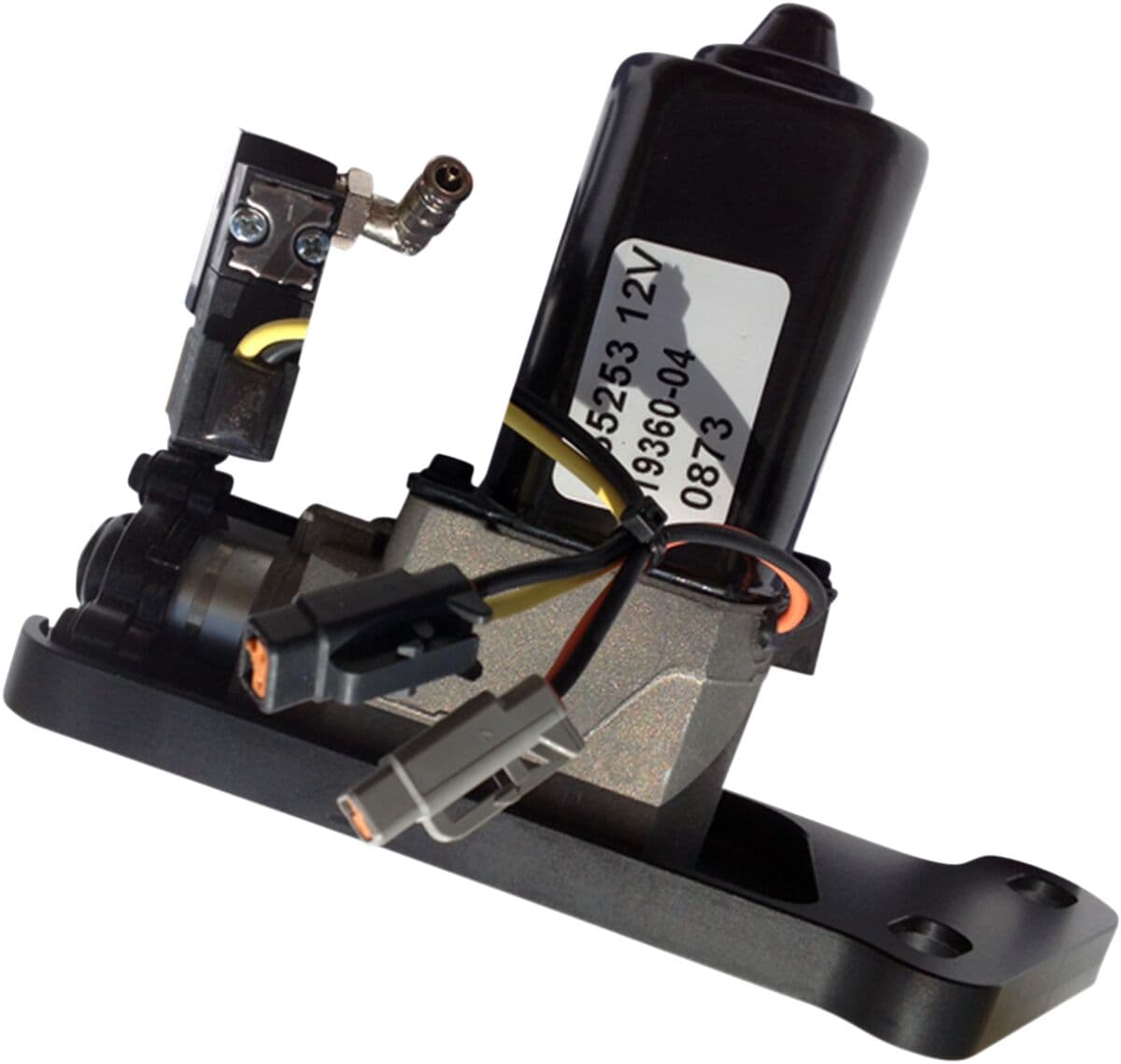

  • Includes prewired air compressor with model specific mounting

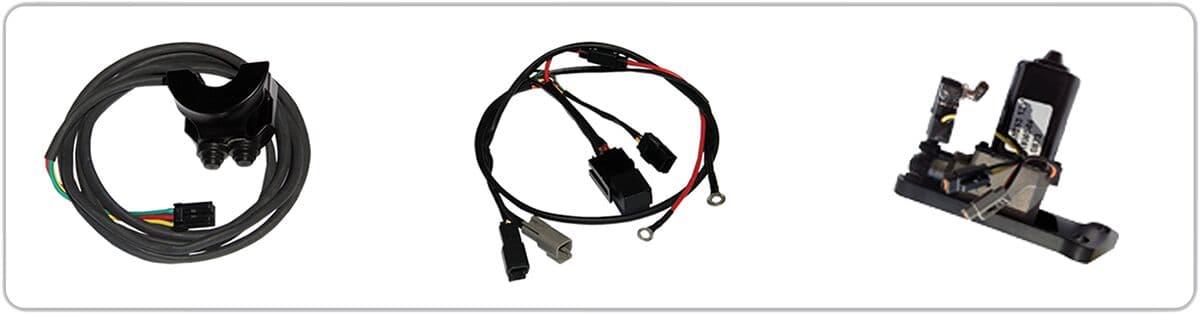

  • Complete wire harness installed with three easy Deutsch connections
  • Includes OEM-looking black handlebar mounted control for easy "on-the-go" adjustability
  • Optional chrome handlebar mounted control sold separately (Part # 0616-0207)
  • Made by hand in Sturgis, South Dakota, USA


  • Compressed Length: 11.00"

    Jármű-kompatibilitás

    Válaszd ki a járműved a felső sávban, hogy ellenőrizd, illik-e ez az alkatrész.

    Ez az alkatrész 10 motorkerékpár-modellel kompatibilis.
    • HARLEY DAVIDSON FLST 13401989–1990
    • HARLEY DAVIDSON FLSTC 13401989–1999
    • HARLEY DAVIDSON FLSTF 13401990–1999
    • HARLEY DAVIDSON FLSTN 13401993–1996
    • HARLEY DAVIDSON FLSTS 13401997–1999
    • HARLEY DAVIDSON FXST 13401989–1990, 1999
    • HARLEY DAVIDSON FXSTB 13401998–1999
    • HARLEY DAVIDSON FXSTC 13401989–1999
    • HARLEY DAVIDSON FXSTS 13401989–1999
    • HARLEY DAVIDSON FXSTSB 13401995–1997
    Készleten
    6 db készleten
    Szállítás 1-3 munkanapon belül
    RON 12,190.26
    • Biztonságos online fizetésA kártyás fizetéseket biztonságosan a Stripe dolgozza fel.
      stripe
    • Fizess részletekben a KlarnávalVálaszd a Klarnát a fizetésnél.
      Klarna.

    Specificații

    Specificații

    TypeAir Mono-Tube
    ModelAir ST
    UnitsPair
    MaterialBillet Aluminum
    Color/FinishAnodized
    Product NameShock Absorber
    Riding StyleStreet
    Research ValueFinalized
    Adjustment TypeAdjustable Air Spring
    Extended Length311,15 mm (12,25")
    Mounting PositionRear
    Reservoir LocationInternal
    Extended Length Metric311.15 mm
    Extended Length Imperial12.25"
