TRU-TENSION

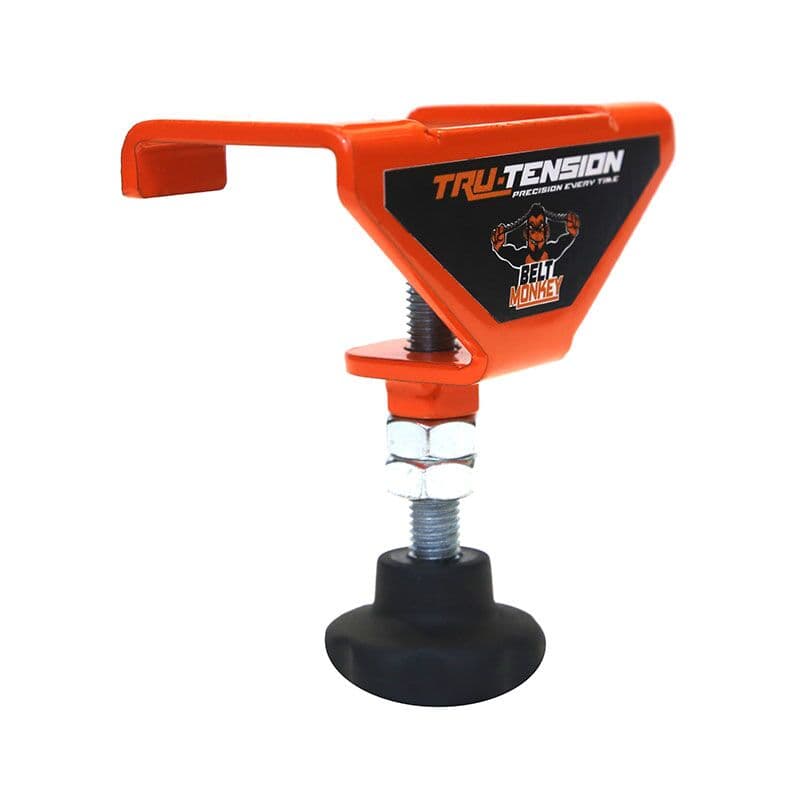

Motorcycle Belt Tensioning Tool

Gyártói kódM026
TermékkódCHM-TRUTENSI-M026
  • Belt driven motorcycles require the correct drive belt tension to ensure moving components are not over stressed, while providing a smooth and comfortable ride.
  • Achieving the correct tension setting can often take numerous measurements and adjustments while taking up a lot of time.
  • Our Motorcycle Belt Tensioning Tool, Belt Monkey, has been designed to eliminate the need for countless measurements and adjustments by achieving the correct belt tension first time, every time.
  • Belt Monkey enables riders to tension their belt quickly and with ease.
  • The simplicity of our product means that you are comfortable maintaining your bike yourself, regardless of experience.
  • How to use your Belt Monkey:
  • Step 1: Using your motorcycle’s manufacturer manual, specify how much movement is required at 10lb of pressure.

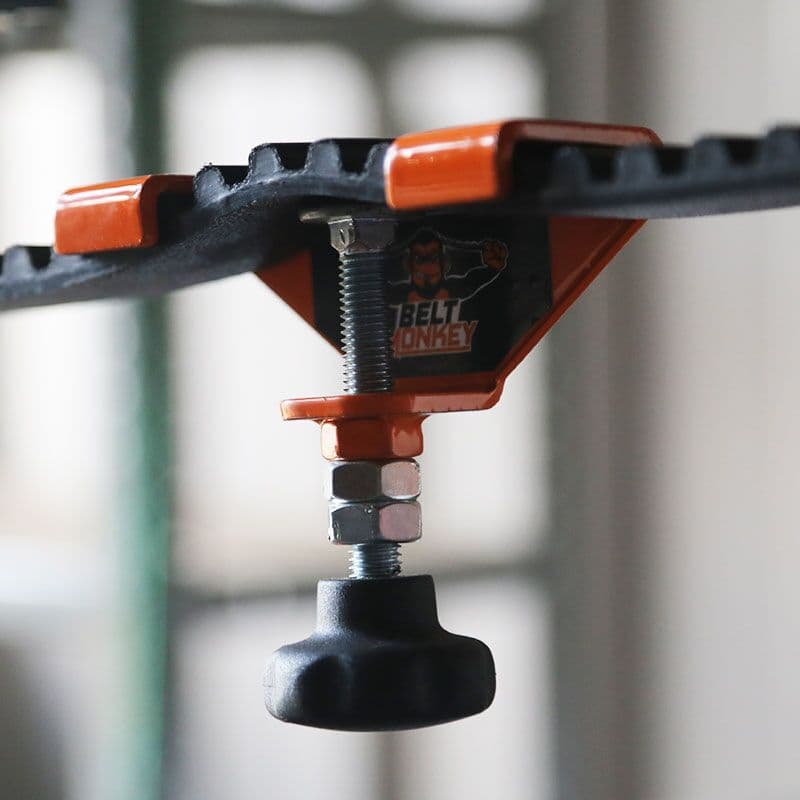

  • Step 2: Align the bottom of the domed edge with the required setting line and adjust the locking nuts so that they are touching the underside of the orange base. Lock the nuts together using two spanners to set your Belt Monkey.

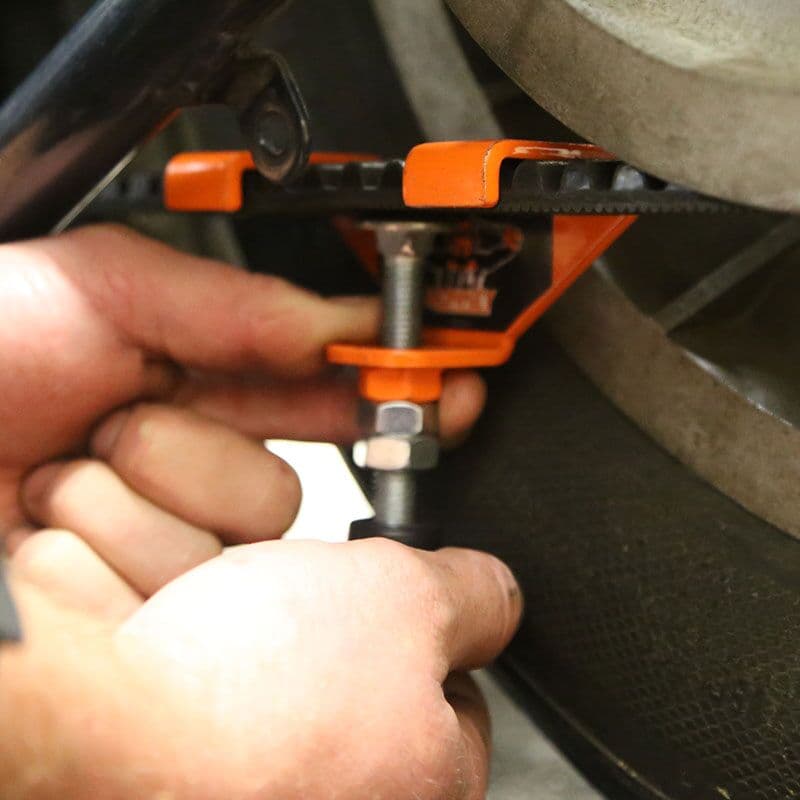

  • Step 3: Undo rear wheel nut and slightly slacken belt. Hook onto belt and tighten until the locking nuts touch the orange base. Ensure your bike is in neutral.
  • Step 4: Adjust swingarm adjusters evenly until the belt goes tight. Ensure the wheel is aligned and tighten rear wheel nut.
  • Step 5: Remove from belt. Required tension will now be set.
  • Scope of delivery: 1 x Motorcycle Belt Tensioning Tool.


    • Készleten
    15 db készleten
    Szállítás 1-3 munkanapon belül
    RON 226.15
    • Biztonságos online fizetésA kártyás fizetéseket biztonságosan a Stripe dolgozza fel.
      stripe
    • Fizess részletekben a KlarnávalVálaszd a Klarnát a fizetésnél.
      Klarna.

    Specificații

    Specificații

    TypeTension
    UnitsEach
    MaterialSteel
    Color/FinishBlack| Orange
    Product NameBelt Tool
    Riding StyleStreet
    Research ValueLevel 2
