Product image 1
OHLINS

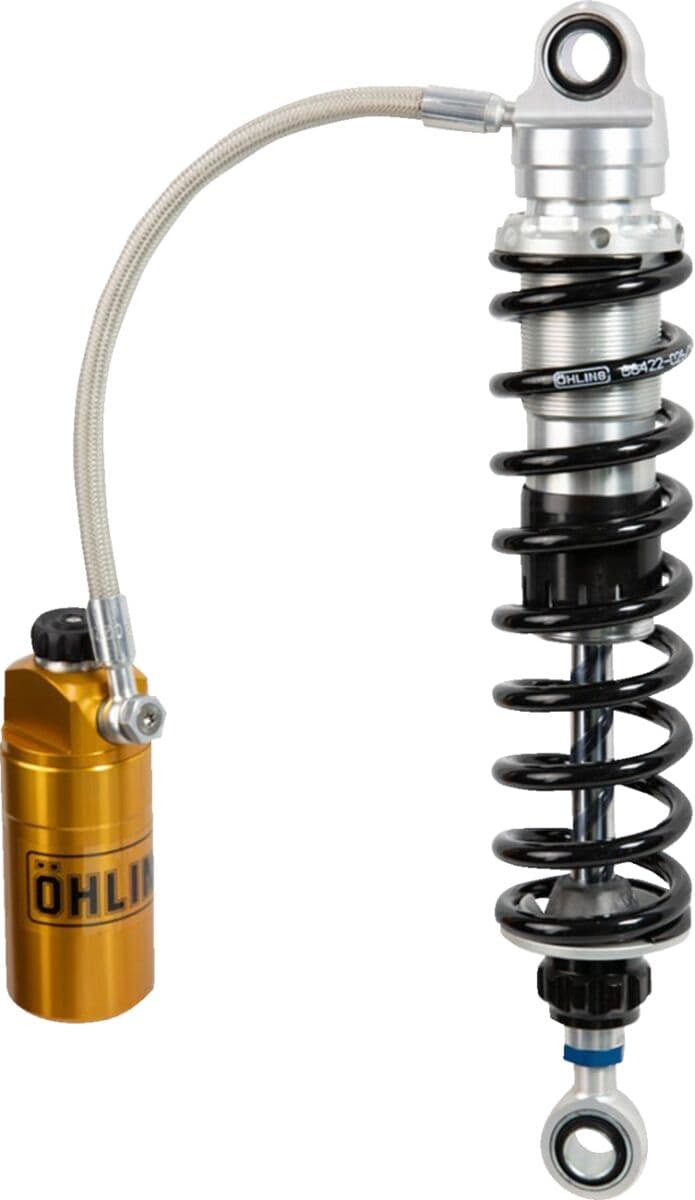

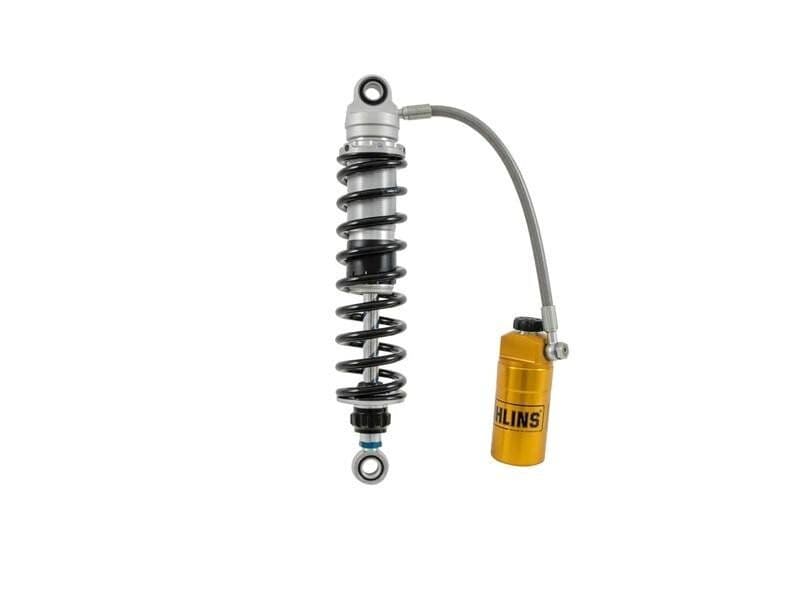

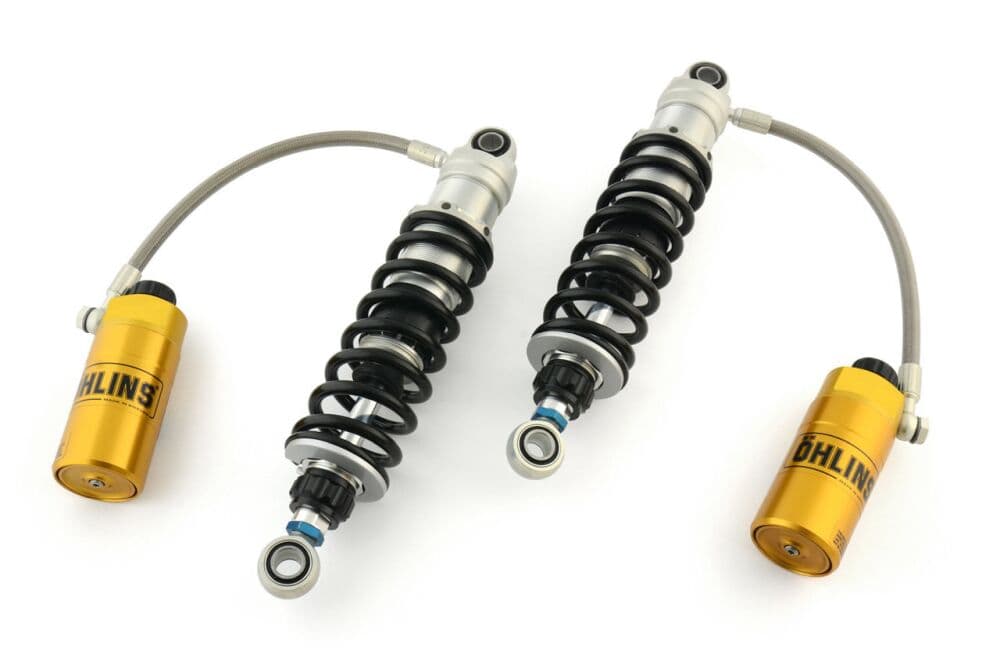

Twin Shocks STX36

Gyártói kódHD 357
TermékkódCHM-OHLINS-HD 357
  • Adjustable rebound and compression damping

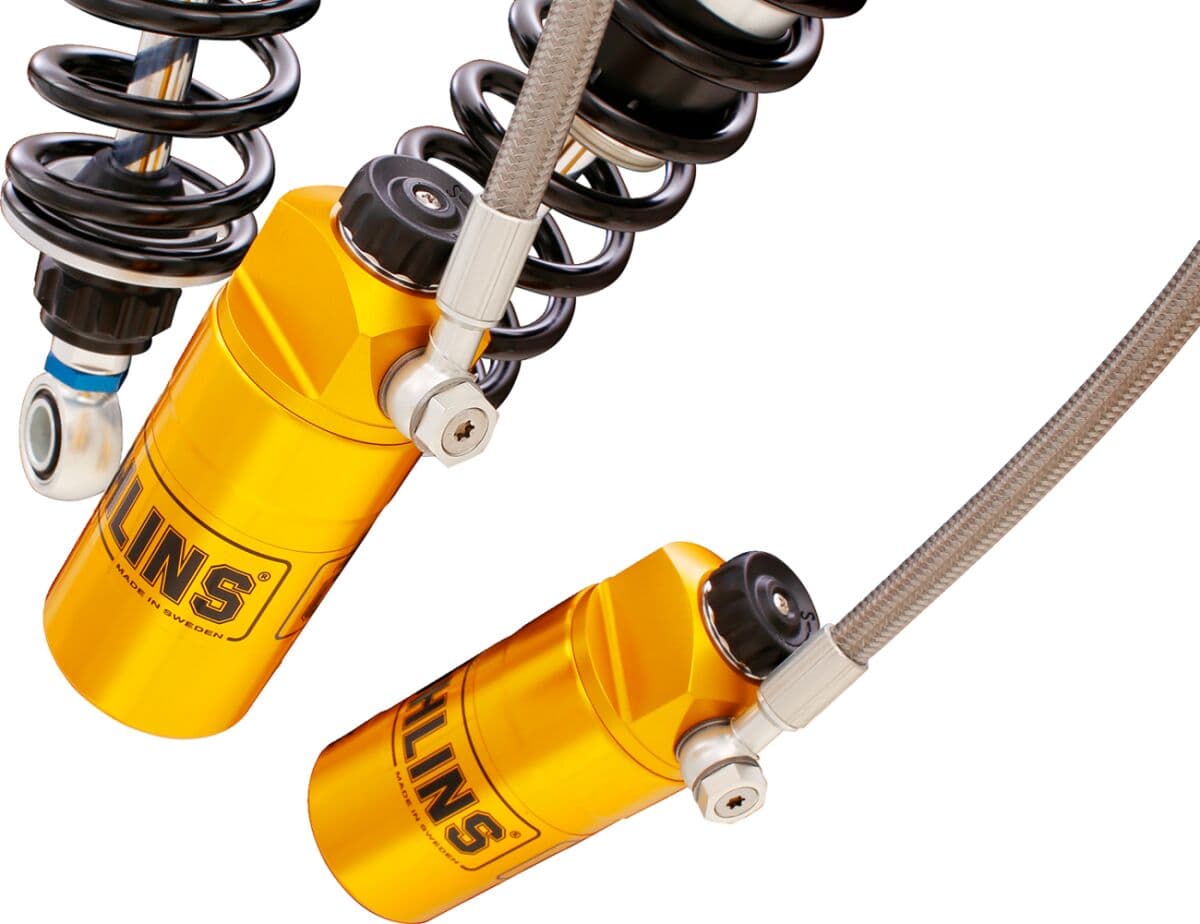

  • Monotube shock with external hose reservoir
  • Length adjustable – 0.393"
  • High pressure nitrogen gas charged
  • STX single tube design
  • 36 mm / 1.417" piston diameter
  • Adjustable preload with billet tool
  • Multiple spring rates available to accommodate a wide range of riders
  • Top level comfort, rideability, and performance
  • Hard anodized - precision CNC-Machined components
  • Low-friction shaft / seal head design
  • Fully serviceable and repairable


    • Includes Spring: Ohlins Part # 66422-026 Adjustment range: 0.393" Stroke length: 3.582" Weight range: 150 lb – Max 500 lb

    Jármű-kompatibilitás

    Válaszd ki a járműved a felső sávban, hogy ellenőrizd, illik-e ez az alkatrész.

    Ez az alkatrész 56 motorkerékpár-modellel kompatibilis.
    • HARLEY DAVIDSON FLHR 13401994–1998
    • HARLEY DAVIDSON FLHR 14501999–2006
    • HARLEY DAVIDSON FLHR 15842007–2011
    • HARLEY DAVIDSON FLHR 1584 ABS2008–2011
    • HARLEY DAVIDSON FLHR 16902012–2014
    • HARLEY DAVIDSON FLHR 1690 ABS2012–2014
    • HARLEY DAVIDSON FLHRC 14502004
    • HARLEY DAVIDSON FLHRC 15842007–2010
    • HARLEY DAVIDSON FLHRC 1584 ABS2008–2011
    • HARLEY DAVIDSON FLHRC 1690 ABS2011–2013
    • HARLEY DAVIDSON FLHRCI 1340 EFI1998
    • HARLEY DAVIDSON FLHRCI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLHRI 1340 EFI1996–1997
    • HARLEY DAVIDSON FLHRI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLHRS 15842007
    • HARLEY DAVIDSON FLHRSE5 1800 ABS2013
    • HARLEY DAVIDSON FLHRSI 1450 EFI2004–2006
    • HARLEY DAVIDSON FLHT 13401995–1998
    • HARLEY DAVIDSON FLHT 14501999–2006
    • HARLEY DAVIDSON FLHT 15842007–2010
    • HARLEY DAVIDSON FLHT 1584 ABS2008–2010
    • HARLEY DAVIDSON FLHTC 14502002–2005
    • HARLEY DAVIDSON FLHTC 15842007–2011
    • HARLEY DAVIDSON FLHTC 1584 ABS2009–2011
    • HARLEY DAVIDSON FLHTC 16902012–2013
    • HARLEY DAVIDSON FLHTC 1690 ABS2011–2013
    • HARLEY DAVIDSON FLHTCI 1450 EFI1999–2000, 2003–2006
    • HARLEY DAVIDSON FLHTCU 15842007, 2009–2011
    • HARLEY DAVIDSON FLHTCU 1584 ABS2008–2011
    • HARLEY DAVIDSON FLHTCU 16902012–2013
    • HARLEY DAVIDSON FLHTCU 1690 ABS2012–2013
    • HARLEY DAVIDSON FLHTCUI 1450 EFI2001–2006
    • HARLEY DAVIDSON FLHTI 1450 EFI2004–2006
    • HARLEY DAVIDSON FLHX 15842007–2011
    • HARLEY DAVIDSON FLHX 1584 ABS2008–2011
    • HARLEY DAVIDSON FLHX 16902011–2013
    • HARLEY DAVIDSON FLHX 1690 ABS2011–2013
    • HARLEY DAVIDSON FLHX 1923 ABS2025–2026
    • HARLEY DAVIDSON FLHXI 1450 EFI2006
    • HARLEY DAVIDSON FLHXSE 1800 ABS2010, 2015–2016
    • HARLEY DAVIDSON FLHXSE2 1800 ABS2011
    • HARLEY DAVIDSON FLHXSE3 1800 ABS2012
    • HARLEY DAVIDSON FLTR 14501999–2003
    • HARLEY DAVIDSON FLTRI 1340 EFI1998
    • HARLEY DAVIDSON FLTRI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLTRSE3 1800 ABS2009
    • HARLEY DAVIDSON FLTRSEI 15502000
    • HARLEY DAVIDSON FLTRU 1584 ABS2011
    • HARLEY DAVIDSON FLTRU 1690 ABS2011–2013
    • HARLEY DAVIDSON FLTRUSE 1800 ABS2011
    • HARLEY DAVIDSON FLTRX 15842010–2011
    • HARLEY DAVIDSON FLTRX 1584 ABS2010–2011
    • HARLEY DAVIDSON FLTRX 16902011–2013
    • HARLEY DAVIDSON FLTRX 1690 ABS2011–2013
    • HARLEY DAVIDSON FLTRXSE 1800 ABS2012
    • HARLEY DAVIDSON FLTRXSE2 1800 ABS2013
    Készleten
    6 db készleten
    Szállítás 1-3 munkanapon belül
    RON 9,222.23
    • Biztonságos online fizetésA kártyás fizetéseket biztonságosan a Stripe dolgozza fel.
      stripe
    • Fizess részletekben a KlarnávalVálaszd a Klarnát a fizetésnél.
      Klarna.

    Specificații

    Specificații

    TypeTwin
    ModelSTX Pro
    UnitsPair
    FeaturesMaximum 500.00 lb Rider Weight
    Color/FinishBlack
    Product NameShock
    Riding StyleStreet
    Research ValueFinalized
    Mounting PositionRear
    Linear Spring Rate26 n/m
    Extended Length Metric338.000 mm (+0/-10.000 mm)
    Extended Length Imperial13.307" (+0/-0.393")
    Linear Spring Rate Metric26 n/m
    Linear Spring Rate Imperial26 n/m
