FAT BAGGERS INC.

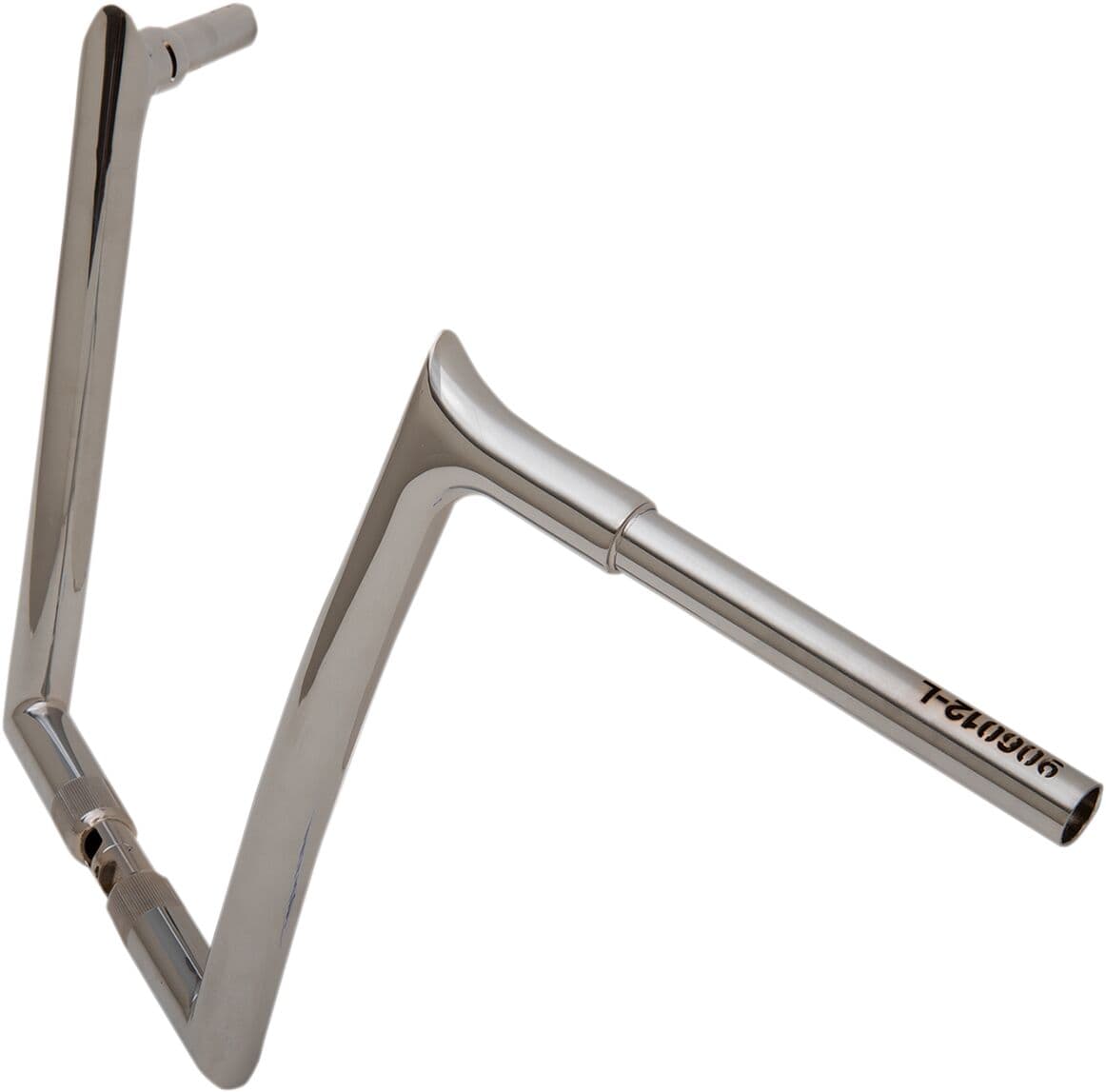

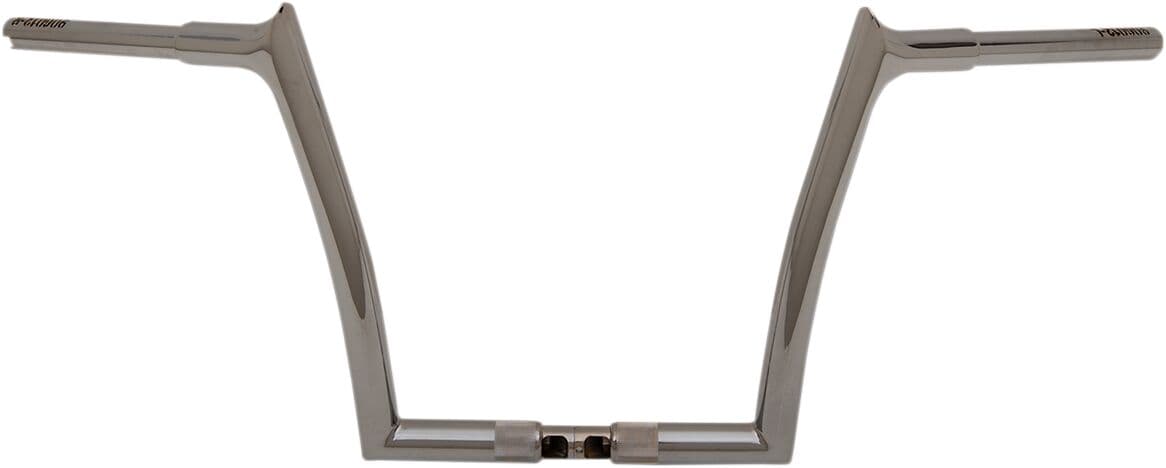

1-1/4" EZ Install Pointed Top Handlebar

Manufacturer Code906012
Product CodeCHM-FATBAGGE-906012

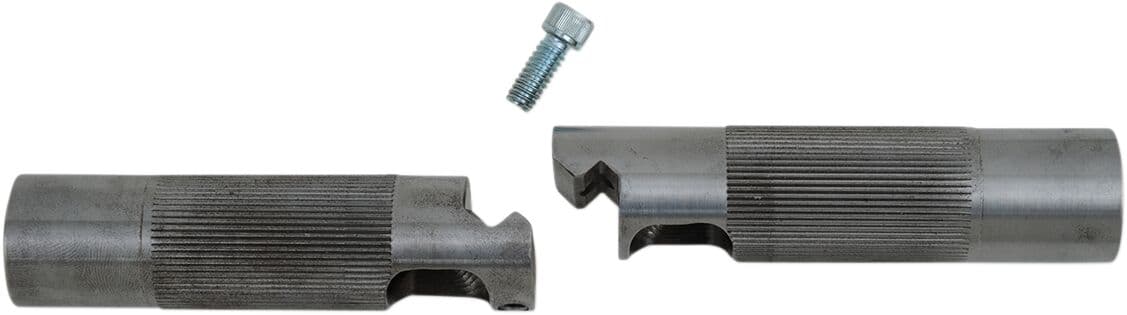

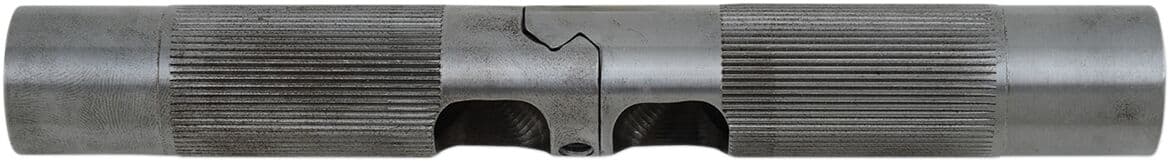

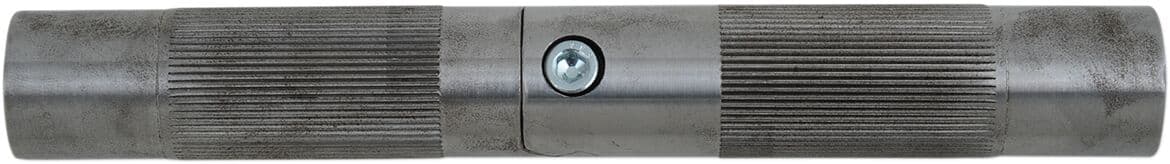

  • Bolt-together two-piece handlebar design that takes up half the shelf space, is easy to ship and even faster to install
  • CNC mandrel-bent from 1-1/4" diameter x .120" wall heavy tube
  • EZ install means no more need to fight internal wiring; with our handlebars you can install wiring in minutes

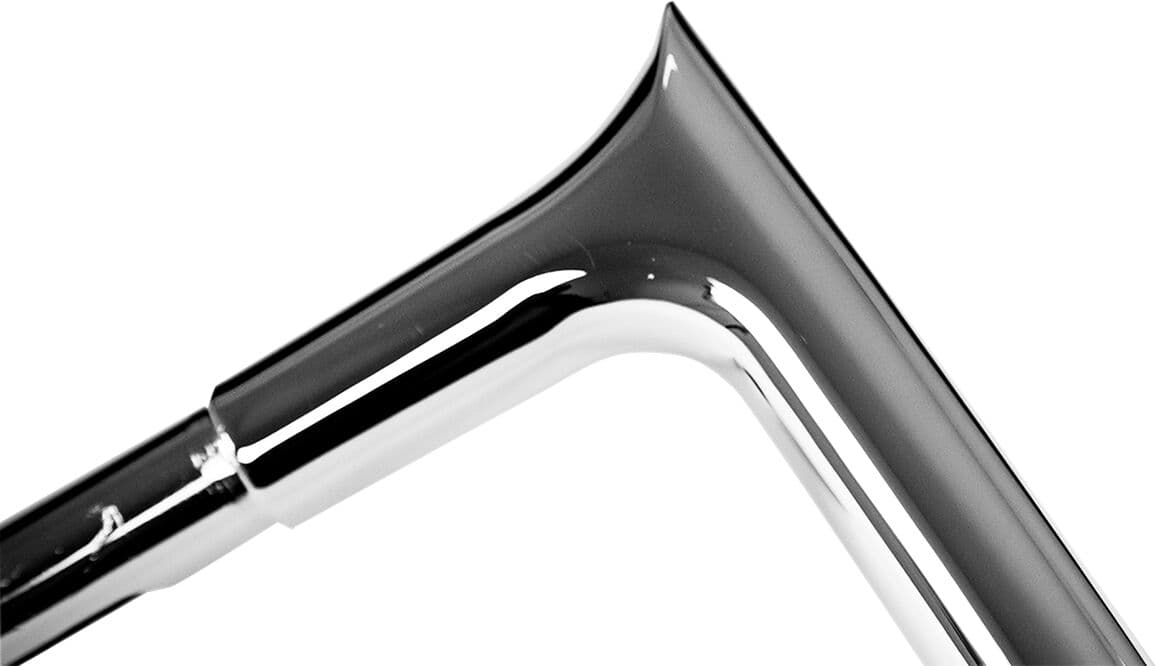

  • Features a billet machined top with a large internal machined radius that allows for EZ pulling of wiring (non-welded top corner)

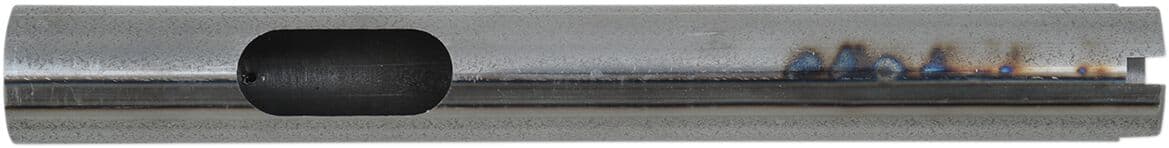

  • Bar with "squared" lower bend has additional slots to ease wire routing
  • Knurled and notched for TBW applications
  • Made in the USA
  • Accepts OEM heated grips.


    • Vehicle fitment

    Select your vehicle in the bar above to check if this part fits.

    This part is compatible with 15 motorcycle models.
    • HARLEY DAVIDSON FLTRK 1868 ABS2021–2024
    • HARLEY DAVIDSON FLTRKSE 1923 ABS2022
    • HARLEY DAVIDSON FLTRT 1868 ABS2023–2024
    • HARLEY DAVIDSON FLTRU 1690 ABS2016
    • HARLEY DAVIDSON FLTRU 1750 ABS2017–2018
    • HARLEY DAVIDSON FLTRU 1868 ABS2019
    • HARLEY DAVIDSON FLTRX 16902015–2016
    • HARLEY DAVIDSON FLTRX 1690 ABS2015–2016
    • HARLEY DAVIDSON FLTRX 17502017–2019
    • HARLEY DAVIDSON FLTRX 1750 ABS2017–2022
    • HARLEY DAVIDSON FLTRXS 1690 ABS2015–2016
    • HARLEY DAVIDSON FLTRXS 1750 ABS2017–2018
    • HARLEY DAVIDSON FLTRXS 1868 ABS2019–2023
    • HARLEY DAVIDSON FLTRXSE 1923 ABS2018–2022
    • HARLEY DAVIDSON FLTRXST 1923 ABS2022–2023
    In stock
    2 in stock
    Delivery in 1-3 business days
    RON 3,495.40
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    UnitsEach
    Width89 cm (35")
    End Rise30,5 cm (12")
    FeaturesAccepts Heated Grips| Internal Wiring| Knurled Center| Notched for Throttle-By-Wire
    MaterialSteel
    Type/BendApe Hanger
    Base ColorSilver
    Base FinishChrome
    Center Width26 cm (10-1/4")
    Color/FinishChrome
    Product NameHandlebar
    Riding StyleStreet
    Width Metric89 cm
    Pullback/Sweep20,5 cm (8")
    Width Imperial35"
    End Rise Metric30.5 cm
    Clamping Diameter32 mm (1-1/4")
    Controls Diameter25,4 mm (1")
    End Rise Imperial12"
    Handlebar Diameter32 mm (1-1/4")
    Center Width Metric26 cm
    Center Width Imperial10-1/4"
    Pullback/Sweep Metric20.5 cm
    Pullback/Sweep Imperial8"
    Clamping Diameter Metric32 mm
    Controls Diameter Metric25.4 mm
    Handlebar Diameter Metric32 mm
    Clamping Diameter Imperial1-1/4"
    Controls Diameter Imperial1"
    Handlebar Diameter Imperial1-1/4"
