Product image 1
BILTWELL

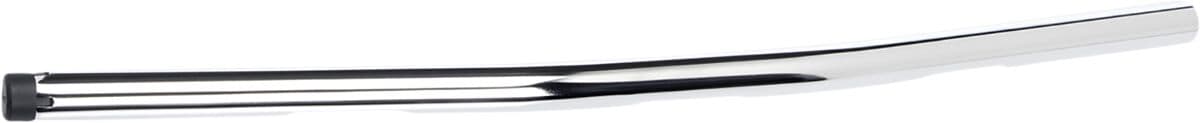

1" Handlebar w/ TBW Plugs

Manufacturer Code6017-1057
Product CodeCHM-BILTWELL-6017-1057

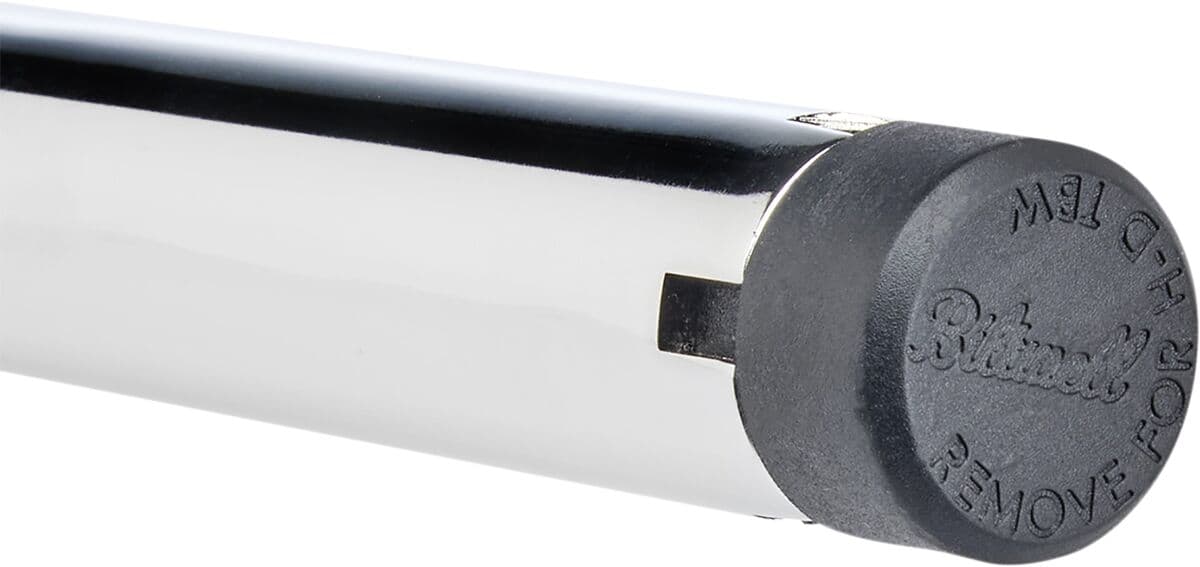

  • Injection-molded, reinforced nylon plug in the bar end on the throttle side lets the handlebar work with select stock and aftermarket single- and dual-cable throttles; simply remove for TBW compatibility
  • Seamless, thick-walled 0.120" (3 mm) 4130 chromoly construction
  • Precision mandrel-bent tubing for precise alignment and comfortable ergonomics
  • Milled slots on bar ends and clamping area for clean internal wire routing
  • Notched and internally tapered right-side bar end accepts Harley Throttle-By-Wire control module
  • Precision mitered, TIG welded tube joints


    • In stock
    9 in stock
    Delivery in 1-3 business days
    RON 1,180.99
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    Rise0 mm (0")
    UnitsEach
    Width69 cm (27-1/4")
    Height0 mm (0")
    End Rise0 mm (0")
    FeaturesCable Throttle Application| Notched for Throttle-By-Wire| Slotted
    MaterialChromoly
    Type/BendDrag| Zero
    Base ColorSilver
    Base FinishChrome
    Rise Metric0 mm
    Center Width12,5 cm (5")
    Color/FinishChrome
    Product NameHandlebar
    Riding StyleStreet
    Width Metric69 cm
    Height Metric0 mm
    Rise Imperial0"
    Pullback/Sweep50,8 mm (2")
    Research ValueLevel 2
    Width Imperial27-1/4"
    End Rise Metric0 mm
    Height Imperial0"
    Clamping Diameter25,4 mm (1")
    Controls Diameter25,4 mm (1")
    End Rise Imperial0"
    Handlebar Diameter25,4 mm (1")
    Center Width Metric12.5 cm
    Center Width Imperial5"
    Pullback/Sweep Metric50.8 mm
    Pullback/Sweep Imperial2"
    Clamping Diameter Metric25.4 mm
    Controls Diameter Metric25.4 mm
    Handlebar Diameter Metric25.4 mm
    Clamping Diameter Imperial1"
    Controls Diameter Imperial1"
    Handlebar Diameter Imperial1"
