BELT DRIVES LTD.

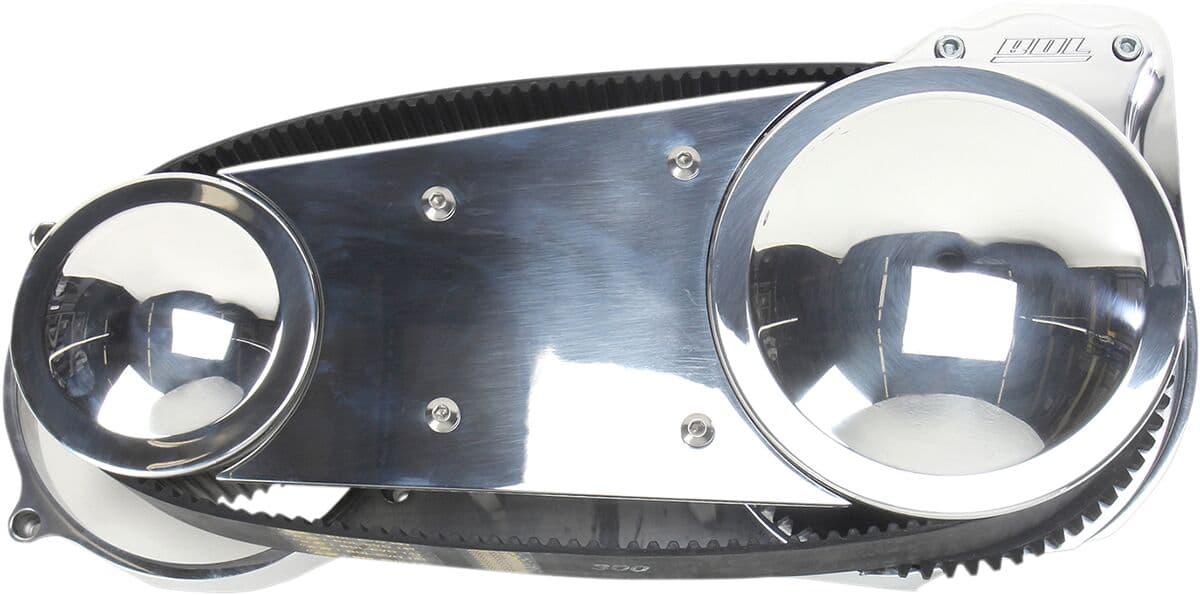

3" Electric Start 8 mm Belt Drive with Lockup Clutch

Manufacturer CodeEVOB-122S
Product CodeCHM-BELTDRIV-EVOB-122S
  • 3" electric start 8 mm kit includes front pulley, belt, clutch hub and clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates), 6061-T6 billet motor plate, outside guard and polished pulley cover
  • Rear pulley has a 40 mm, double-row bearing with an inner stress-proof steel clutch hub to support the clutch
  • Lockup design applies extra pressure to the clutch plates for positive engagement with no clutch slippage
  • Comes with the Quiet Clutch and ball-bearing lockup design pressure plate
  • No increase in lever pull effort
  • Direct bolt-in applications
  • Made in the USA
  • 3" systems are not designed for use with floorboards.
  • Not for use with offset primaries.
  • Replacement components available separately.


    • Vehicle fitment

    Select your vehicle in the bar above to check if this part fits.

    This part is compatible with 19 motorcycle models.
    • HARLEY DAVIDSON FXD 13401995–1998
    • HARLEY DAVIDSON FXD 14501999–2005
    • HARLEY DAVIDSON FXDB 13401991–1992
    • HARLEY DAVIDSON FXDC 13401992
    • HARLEY DAVIDSON FXDC 14502005
    • HARLEY DAVIDSON FXDCI 1450 EFI2005
    • HARLEY DAVIDSON FXDI 1450 EFI2004–2005
    • HARLEY DAVIDSON FXDL 13401993–1998
    • HARLEY DAVIDSON FXDL 14501999–2005
    • HARLEY DAVIDSON FXDLI 1450 EFI2004–2005
    • HARLEY DAVIDSON FXDS-CON 13401995–2000
    • HARLEY DAVIDSON FXDWG 13401993–1998
    • HARLEY DAVIDSON FXDWG 14501999–2005
    • HARLEY DAVIDSON FXDWG2 14502001
    • HARLEY DAVIDSON FXDWG3 14502002
    • HARLEY DAVIDSON FXDWGI 1450 EFI2004–2005
    • HARLEY DAVIDSON FXDX 14501999–2004
    • HARLEY DAVIDSON FXDXI 1450 EFI2004–2005
    • HARLEY DAVIDSON FXDXT 14502001–2003
    On demand
    Delivery time determined after consultation
    RON 20,953.89
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    TypeElectric Start
    UnitsKit
    Width76,2 mm (3")
    Material6061-T6 Billet Aluminum| DuPont™ Kevlar® Fiber| Steel
    Product NameBelt Drive
    Riding StyleStreet
    Width Metric76.2 mm
    Research ValueFinalized
    Width Imperial3"
