WOSSNER

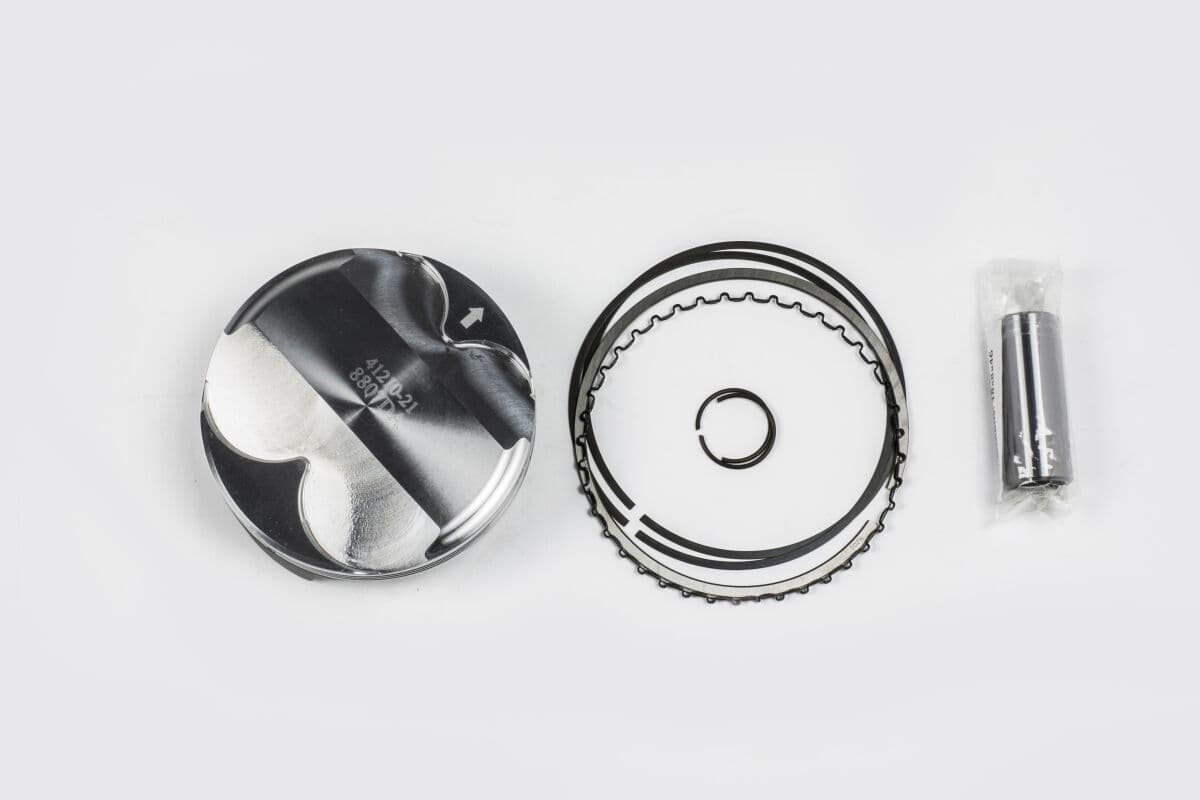

Piston Kit

Manufacturer Code8524D100
Product CodeCHM-WOSSNER-8524D100
  • Forged Piston: Made from aerospace-grade aluminum alloy using a closed-die forging process, which aligns the grain structure for high tensile strength and fatigue resistance
  • Piston Skirt Coating: Most kits feature a specialized dry-lute or molybdenum disulfide surface coating on the skirts to reduce friction, prevent scuffing, and ease the break-in process
  • Piston Rings: High-quality piston rings designed to match the specific thermal expansion and sealing requirements of the piston
  • Wirst Pin: Precision-machined steel pin
  • Circlips: Secure clips to keep the wristpin in place


    • Vehicle fitment

    Select your vehicle in the bar above to check if this part fits.

    This part is compatible with 5 motorcycle models.
    • KTM DUKE 6201994–1995
    • KTM LC4 640 E1999–2006
    • KTM SMC 6252004–2006
    • KTM SMC 6602003–2006
    • KTM SX 620 LC41994–1997
    In stock
    1 in stock
    Delivery in 1-3 business days
    RON 1,374.14
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    ModelStandard Series
    UnitsKit
    Engine Type4-Stroke
    Piston Size+1,00 mm
    Product NamePiston Kit
    Ring MaterialCast| Nitride Coated| Steel
    Skirt CoatingMolybdenum Disulphite
    Stroke Length76,00 mm
    Research ValueFinalized
    Piston Diameter101,94 mm
    Piston MaterialAluminum Alloy| Forged
    Compression Ratio11,7:1
