VERTEX

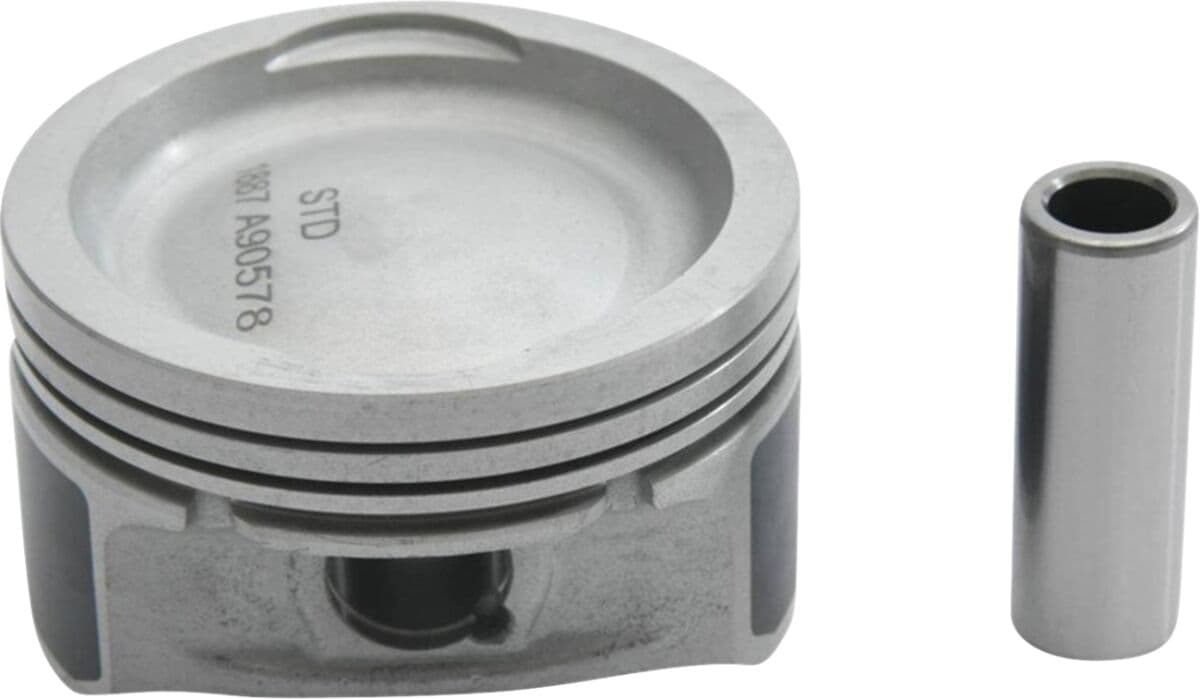

Piston Kit Cast Replica for 4-Stroke

Manufacturer Code23643B
Product CodeCHM-VERTEX-23643B
  • The piston is heat-treated with a T-5 hardening and tempering cycle
  • The piston skirt is coated with a high-tech Molybdenum Disulphite coating for faster break in time and increased piston life
  • Cast piston is gravity-cast aluminum alloy (not forged) with 18% silicone content
  • OE replacement piston
  • Kit includes piston, rings, wrist pin and circlips


    • Kit Includes: • Cast Replica Piston • Ring Set • Wrist Pin • Circlps

    Vehicle fitment

    Select your vehicle in the bar above to check if this part fits.

    This part is compatible with 9 motorcycle models.
    • POLARIS RANGER 800 CREW 4X42010–2011
    • POLARIS RANGER 800 EFI 4X42010–2011
    • POLARIS RANGER 800 HD 4X42010–2011
    • POLARIS RANGER RZR 4 800 4X42010–2011
    • POLARIS RANGER RZR 800 4X42008–2011
    • POLARIS RANGER RZR S 800 4X42009–2011
    • POLARIS SPORTSMAN 800 EFI 4X42005–2010
    • POLARIS SPORTSMAN 800 EFI HO 4X42008–2009
    • POLARIS SPORTSMAN 800 EFI X2 4X42007–2009
    On demand
    Delivery time determined after consultation
    RON 931.14
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    ModelCast Replica
    UnitsKit
    Engine Type4-Stroke
    Displacement800 cc
    Product NamePiston Kit
    Riding StyleUTV
    Skirt CoatingMolybdenum Disulphite
    Research ValueFinalized
    Bore - OversizeStandard
    Piston Diameter79,95 mm
    Piston MaterialAluminum Alloy| Cast
    Compression Ratio10,2:1
    Cylinder Diameter80,00 mm
    Bore - Oversize MetricStandard
    Piston Diameter Metric79.95 mm
    Cylinder Diameter Metric80.00 mm
    Compression Ratio Imperial10.2:1
