WOSSNER

Piston Kit for 4 Stroke

Manufacturer Code8563DA
Product CodeCHM-WOSSNER-8563DA
  • Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication
  • Lightweight piston with a tight piston wall clearance for a quieter running engine
  • Skirt coated for reduced friction and improved break in performance
  • Ring land treatment for improved ring seal and oil control
  • Double bridged forging design where noted

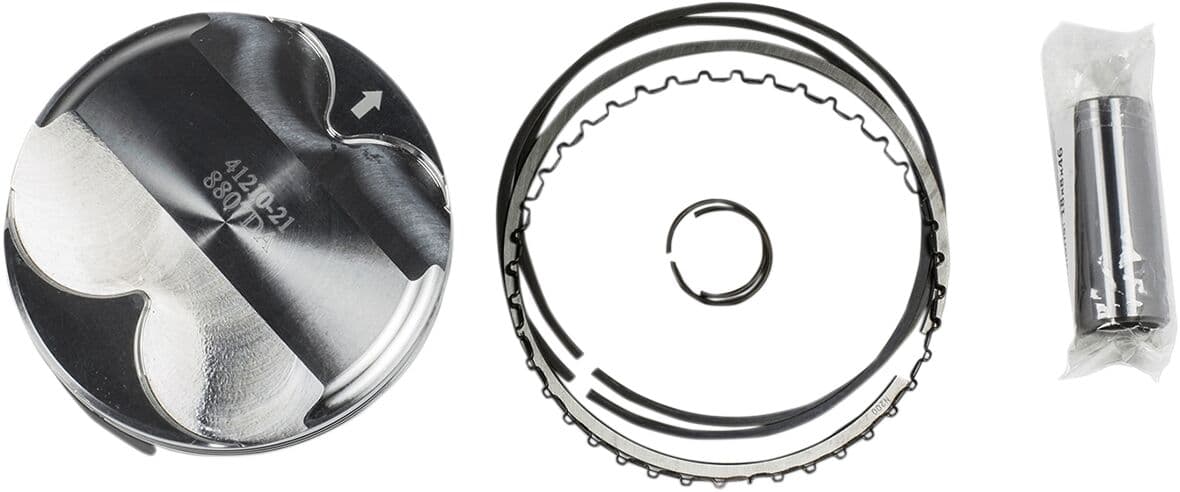

  • Kit includes piston, rings, wrist pin and pin locks


    • Kit Includes: • Piston #8563DA • Ring Set #GNH90.00 • Wrist Pin #WP029-SP • Retaining Clips #CW20

    Vehicle fitment

    Select your vehicle in the bar above to check if this part fits.

    This part is compatible with 3 motorcycle models.
    • SUZUKI DR-Z 400 E2000–2007
    • SUZUKI DR-Z 400 S2000–2017
    • SUZUKI LT-Z 400 2X42003–2012
    In stock
    3 in stock
    Delivery in 1-3 business days
    RON 1,296.55
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    ModelStandard Series
    StyleStandard Size A
    UnitsKit
    Bore Size90,00 mm
    Engine Type4-Stroke
    Piston Size89,94 mm
    Product NamePiston Kit
    Riding StyleAdventure Touring / Dual-Sport| ATV| Off-Road| Street
    Stroke Length62,60 mm
    Research ValueFinalized
    Bore - OversizeStandard
    Piston MaterialAluminum Alloy| Forged
    Bore Size Metric90.00 mm
    Compression Ratio12,2:1
    Piston Size Metric89.94 mm
    Stroke Length Metric62.60 mm
    Bore - Oversize MetricStandard
    Compression Ratio Imperial12.2:1
