VERTEX

Piston Kit Forged Replica for 4 Stroke

Manufacturer Code23342B
Product CodeCHM-VERTEX-23342B
  • The piston is heat-treated with aT-5 hardening and tempering cycle
  • The piston skirt is treated with a Molybdenum Disulphite coating for a faster break-in time and increased piston life
  • Forged replica piston is a forged OE replacement
  • Replica piston and all rings are OEM replacement

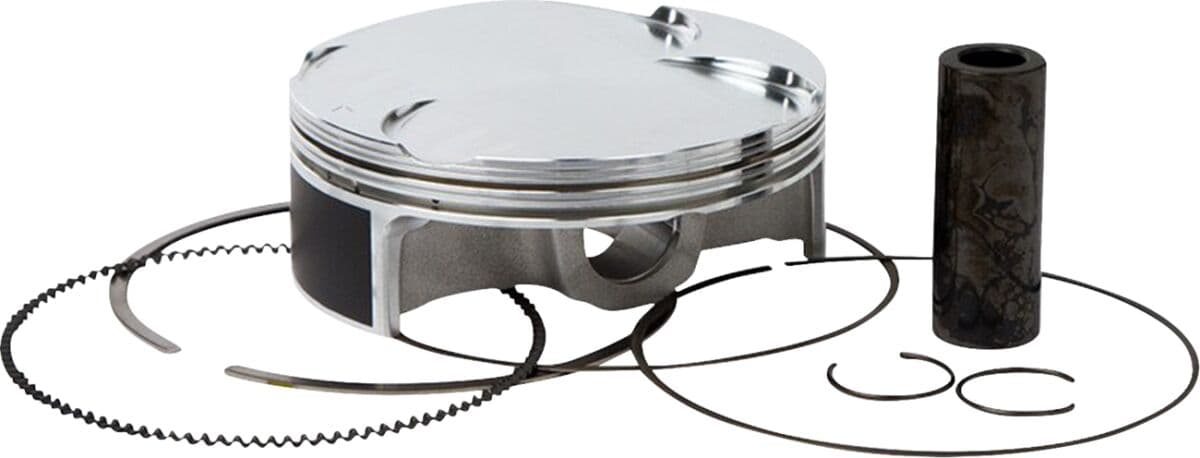

  • Piston kit includes piston, ring, wrist pin and circlips


    • Kit Includes: • Piston • Ring Set • Wrist Pin • Circlips

    Vehicle fitment

    Select your vehicle in the bar above to check if this part fits.

    This part is compatible with 4 motorcycle models.
    • KTM SX 4502007–2008
    • KTM SX 450 ATV2008–2011
    • KTM SX-F 4502007–2012
    • KTM SX-F 450 RACING2007–2010
    In stock
    4 in stock
    Delivery in 1-3 business days
    RON 1,440.47
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    StyleForged Replica
    UnitsKit
    Engine Type4-Stroke
    Displacement450 cc
    Product NamePiston Kit
    Riding StyleATV| Off-Road
    Skirt CoatingMolybdenum Disulphite
    Research ValueFinalized
    Piston Diameter96,94 mm
    Piston MaterialForged 2618 Aluminum
    Compression Ratio12,5:1
    Cylinder Diameter97,00 mm
    Piston Diameter Metric96.94 mm
    Cylinder Diameter Metric97.00 mm
    Compression Ratio Imperial12.5:1
