LEGEND SUSPENSION

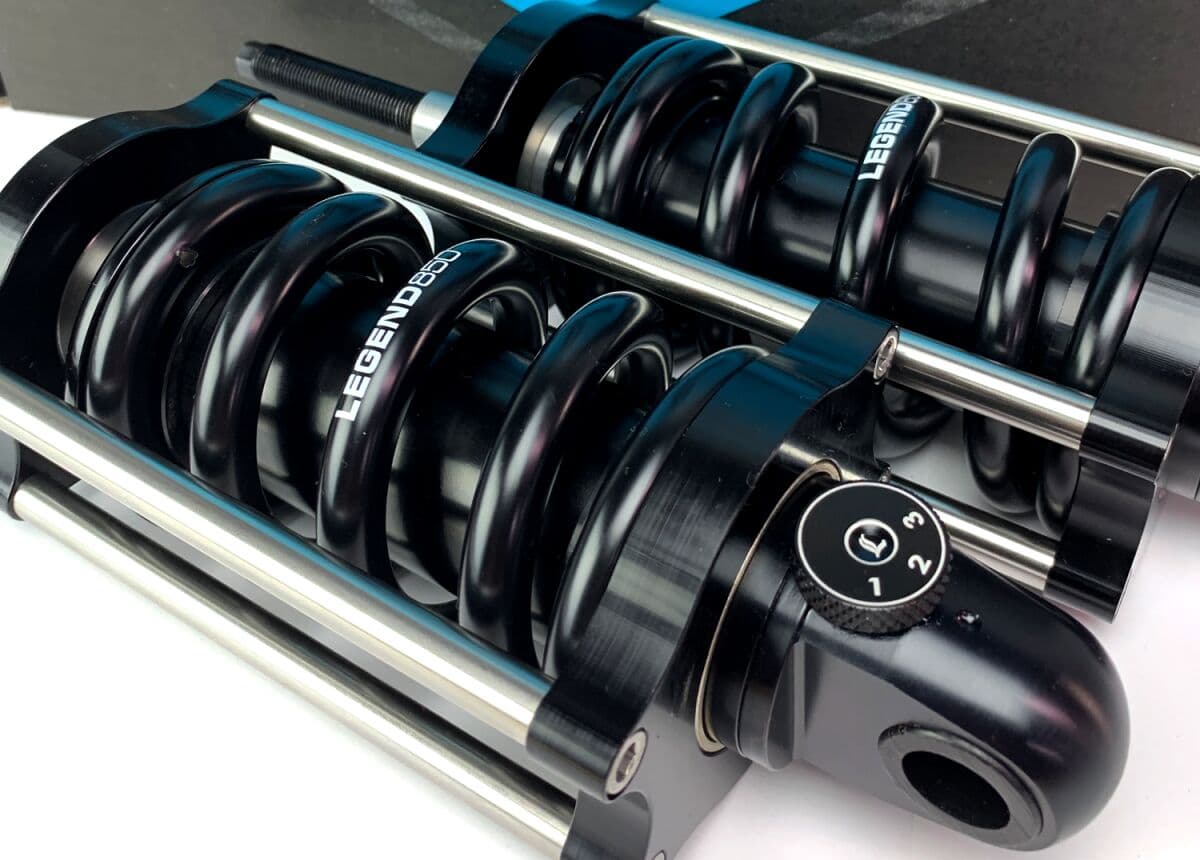

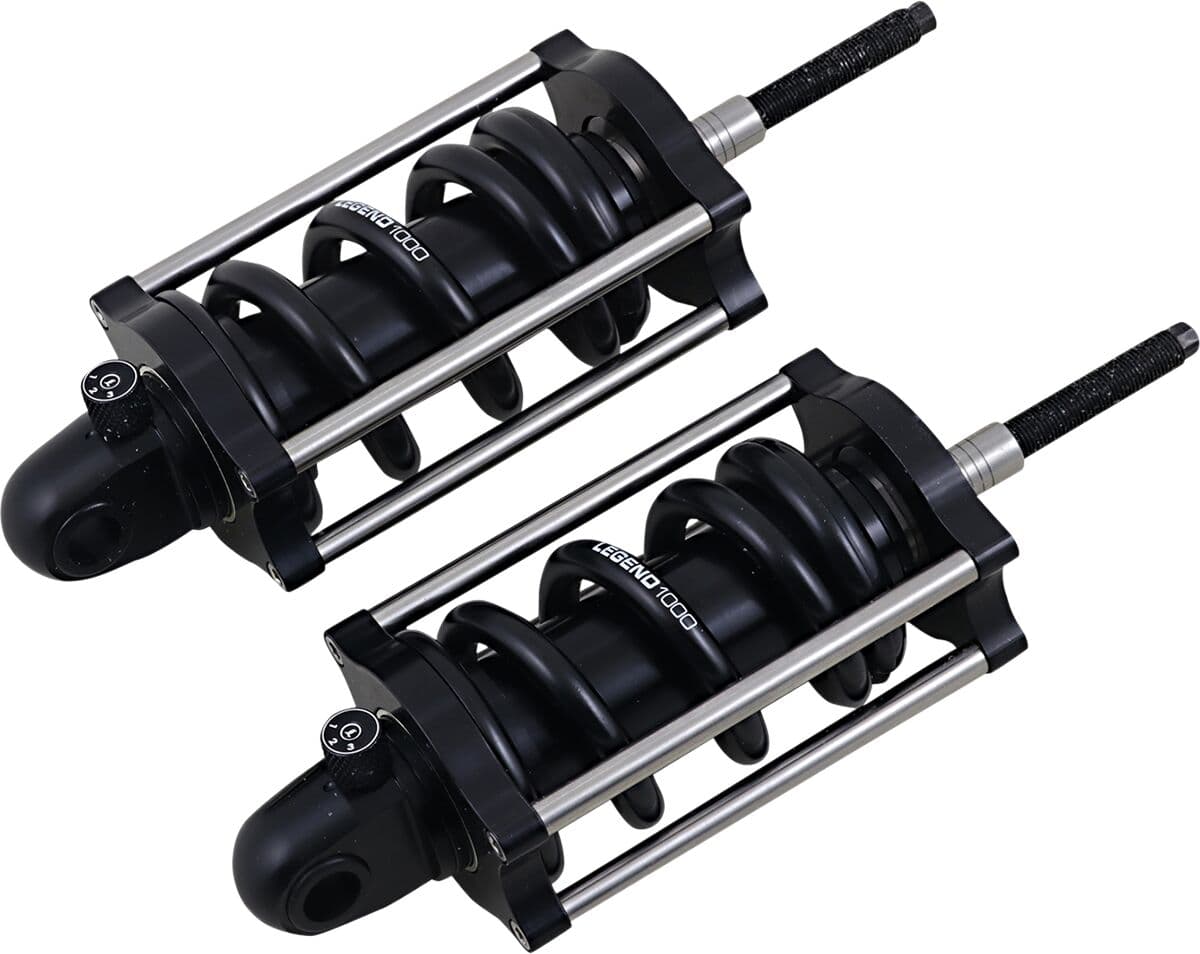

REVO-A Adjustable Softail Coil Suspension

Manufacturer Code1310-1974
Product CodeCHM-LEGENDSU-1310-1974

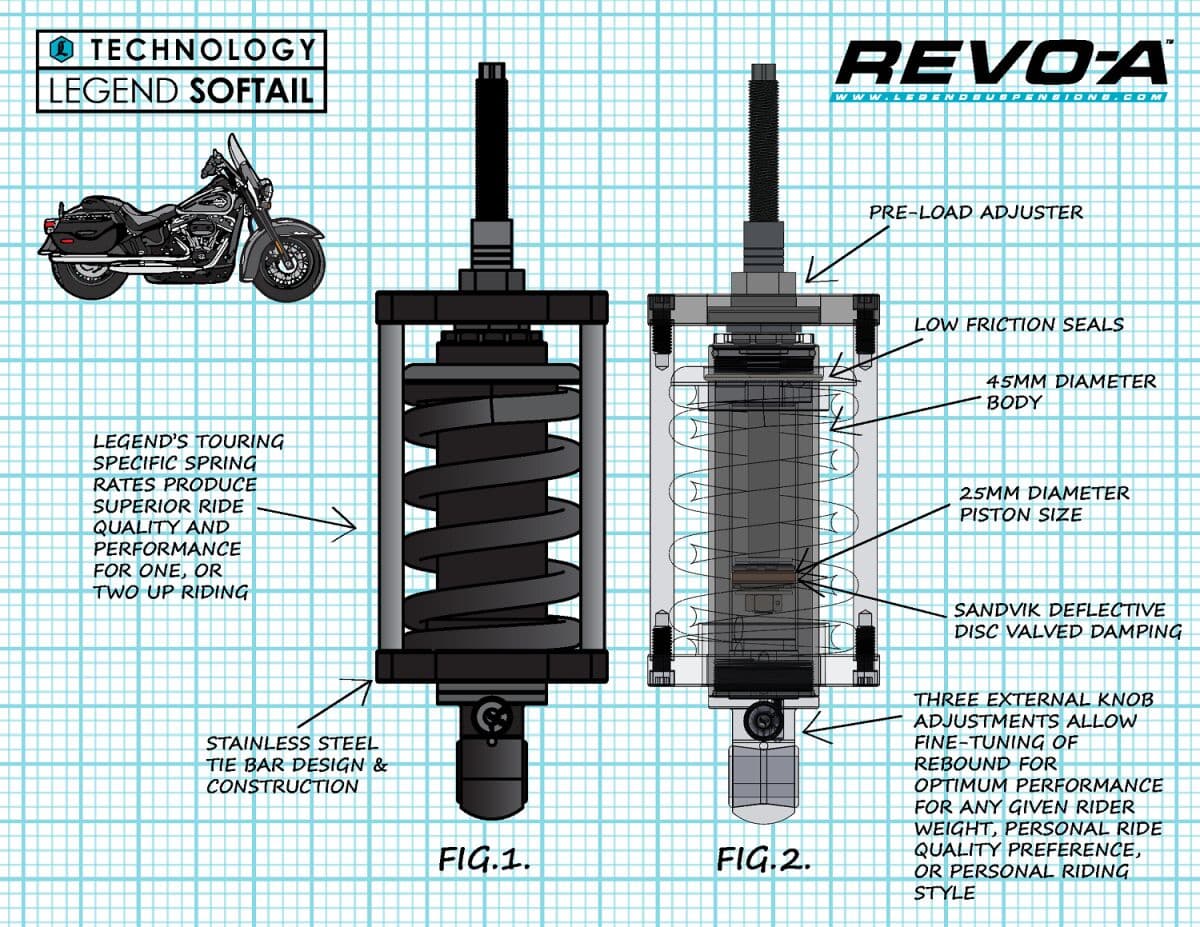

  • Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
  • 45 mm billet aluminum twin tube design with 25mm piston reacts quickly for improved fluid flow
  • Deflective disc valving self-adjusts to frequency and ensures controlled performance
  • Low friction sealing system and sliding bearings for improved performance and feel
  • Three external knob adjustments allow fine-tuning of rebound
  • Stainless Steel tie bar design and construction
  • Available only in standard length for optimum ride quality and performance
  • Available only in Black Type III hard coat anodize
  • Easy Installation and Adjustment
  • Sold in Pairs
  • Made by hand in Sturgis, SD, USA


    • Heavy Duty application is recommended for 250 lb+ rider and passenger total weight. Also consider heavy-duty if the majority of your riding is two up with a passenger and/or gear. Compressed Length: 11.00".

    Vehicle fitment

    Select your vehicle in the bar above to check if this part fits.

    This part is compatible with 72 motorcycle models.
    • HARLEY DAVIDSON FLS 16902012–2017
    • HARLEY DAVIDSON FLS 1690 ABS2012–2017
    • HARLEY DAVIDSON FLSS 1800 ABS2016–2017
    • HARLEY DAVIDSON FLST 14502006
    • HARLEY DAVIDSON FLSTC 14502000–2006
    • HARLEY DAVIDSON FLSTC 15842007–2011
    • HARLEY DAVIDSON FLSTC 1584 ABS2011
    • HARLEY DAVIDSON FLSTC 16902012–2013
    • HARLEY DAVIDSON FLSTC 1690 ABS2012–2017
    • HARLEY DAVIDSON FLSTCI 1450 EFI2001–2006
    • HARLEY DAVIDSON FLSTF 14502000–2006
    • HARLEY DAVIDSON FLSTF 15842007–2011
    • HARLEY DAVIDSON FLSTF 1584 ABS2011
    • HARLEY DAVIDSON FLSTF 16902012–2014
    • HARLEY DAVIDSON FLSTF 1690 ABS2012–2017
    • HARLEY DAVIDSON FLSTFB 15842010–2011
    • HARLEY DAVIDSON FLSTFB 1584 ABS2011
    • HARLEY DAVIDSON FLSTFB 16902012–2013
    • HARLEY DAVIDSON FLSTFB 1690 ABS2012–2017
    • HARLEY DAVIDSON FLSTFBS 1800 ABS2016–2017
    • HARLEY DAVIDSON FLSTFI 1450 EFI2001–2006
    • HARLEY DAVIDSON FLSTFI 1550 EFI2005
    • HARLEY DAVIDSON FLSTFSE 16902005
    • HARLEY DAVIDSON FLSTFSE2 16902006
    • HARLEY DAVIDSON FLSTI 1450 EFI2006
    • HARLEY DAVIDSON FLSTN 14502005–2006
    • HARLEY DAVIDSON FLSTN 15842007–2011
    • HARLEY DAVIDSON FLSTN 1584 ABS2011
    • HARLEY DAVIDSON FLSTN 16902012–2013
    • HARLEY DAVIDSON FLSTN 1690 ABS2012–2017
    • HARLEY DAVIDSON FLSTNI 1450 EFI2005–2006
    • HARLEY DAVIDSON FLSTNSE 1800 ABS2014–2015
    • HARLEY DAVIDSON FLSTS 14502000–2003
    • HARLEY DAVIDSON FLSTSB 15842008–2011
    • HARLEY DAVIDSON FLSTSC 14502005–2006
    • HARLEY DAVIDSON FLSTSC 15842007
    • HARLEY DAVIDSON FLSTSCI 1450 EFI2005–2006
    • HARLEY DAVIDSON FLSTSE 18002010
    • HARLEY DAVIDSON FLSTSE2 18002011
    • HARLEY DAVIDSON FLSTSE2 1800 ABS2011
    • HARLEY DAVIDSON FLSTSE3 1800 ABS2012
    • HARLEY DAVIDSON FLSTSI 1450 EFI2003
    • HARLEY DAVIDSON FXCW 15842008–2009
    • HARLEY DAVIDSON FXCWC 15842008–2011
    • HARLEY DAVIDSON FXCWC 1584 ABS2011
    • HARLEY DAVIDSON FXS 15842011
    • HARLEY DAVIDSON FXS 1584 ABS2011–2012
    • HARLEY DAVIDSON FXS 16902012–2013
    • HARLEY DAVIDSON FXS 1690 ABS2012–2013
    • HARLEY DAVIDSON FXSB 16902013
    • HARLEY DAVIDSON FXSB 1690 ABS2013–2017
    • HARLEY DAVIDSON FXSBSE 1800 ABS2013
    • HARLEY DAVIDSON FXSBSE2 1800 ABS2014
    • HARLEY DAVIDSON FXSE 1800 ABS2016–2017
    • HARLEY DAVIDSON FXST 14502000–2006
    • HARLEY DAVIDSON FXST 15842007–2011
    • HARLEY DAVIDSON FXST 16902012–2015
    • HARLEY DAVIDSON FXSTB 14502000–2006
    • HARLEY DAVIDSON FXSTB 15842007–2009
    • HARLEY DAVIDSON FXSTBI 1450 EFI2003–2006
    • HARLEY DAVIDSON FXSTC 15842007–2010
    • HARLEY DAVIDSON FXSTD 14502000–2006
    • HARLEY DAVIDSON FXSTD 15842007
    • HARLEY DAVIDSON FXSTDI 1450 EFI2001–2006
    • HARLEY DAVIDSON FXSTDSE 15502003
    • HARLEY DAVIDSON FXSTDSE2 15502004
    • HARLEY DAVIDSON FXSTI 1450 EFI2003–2006
    • HARLEY DAVIDSON FXSTS 14502000–2006
    • HARLEY DAVIDSON FXSTSI 1450 EFI2003–2006
    • HARLEY DAVIDSON FXSTSSE 18002007
    • HARLEY DAVIDSON FXSTSSE2 18002008
    • HARLEY DAVIDSON FXSTSSE3 18002009
    In stock
    4 in stock
    Delivery in 1-3 business days
    RON 6,868.74
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    DutyHeavy Duty
    TypeCoilover Twin-Tube
    ModelRevo-A
    UnitsPair
    MaterialBillet Aluminum
    Color/FinishAnodized| Black
    Product NameShock Absorber
    Riding StyleStreet
    Research ValueFinalized
    Adjustment TypeAdjustable Rebound Damping
    Extended Length311,15 mm (12,25")
    Mounting PositionRear
    Reservoir LocationInternal
    Extended Length Metric311.15 mm
    Extended Length Imperial12.25"
