MOTION PRO

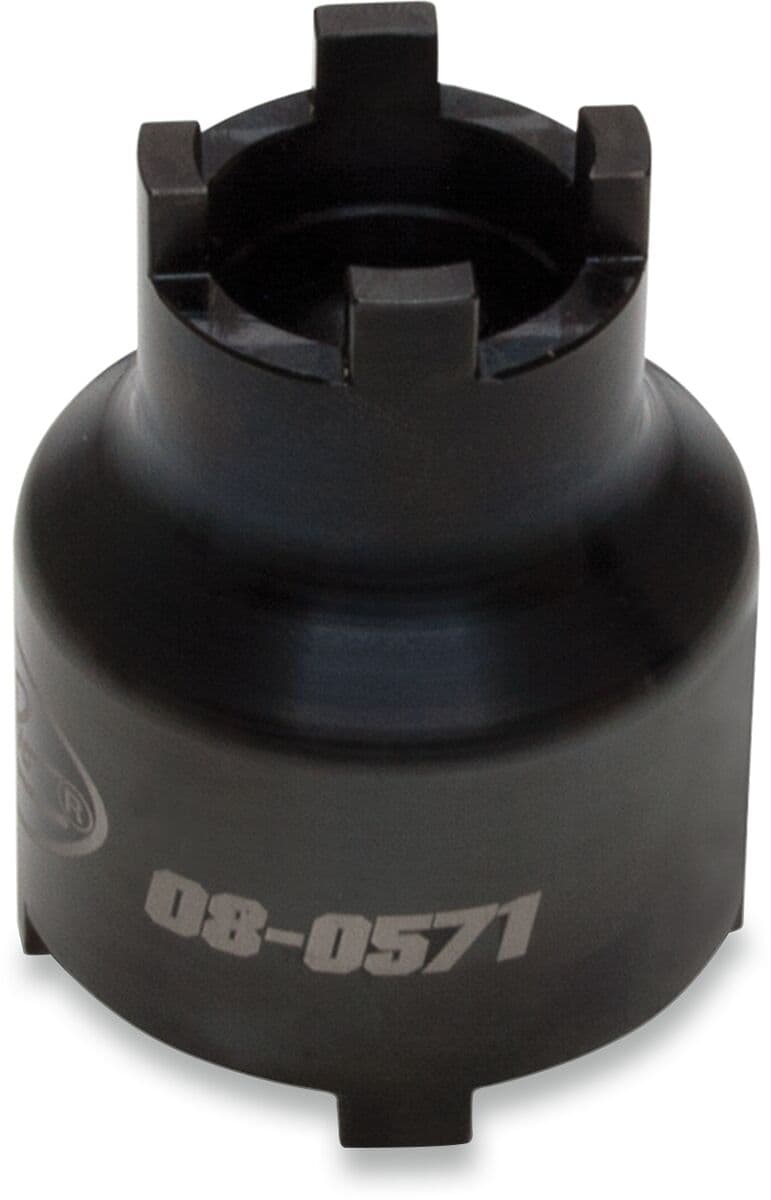

Spanner Nut Socket

Manufacturer Code08-0571
Product CodeCHM-MOTIONPR-08-0571
  • Used for removal and installation of spanner (castle) lock nuts
  • Laser-etched with Motion Pro logo and part number
  • Heat-treated for strength and durability
  • Premium quality high carbon steel
  • Lifetime limited warranty


    • Large end socket dimensions: 39 mm (1.54") OD x 30.5 mm (1.20") ID x 7 mm (0.28") Pin width/4 pins. Small end socket dimensions: 26 mm (1.02") OD x 19.9 mm (0.78") ID x 6.5 mm (0.26") Pin width/4 pins. See year, make and model footnotes for specifics on motor mount spanner socket or swingarm spanner socket.

    Vehicle fitment

    Select your vehicle in the bar above to check if this part fits.

    This part is compatible with 23 motorcycle models.
    • KAWASAKI Z 10002003–2013
    • KAWASAKI Z 1000 ABS2007–2013
    • KAWASAKI Z 1000 SX2011–2013
    • KAWASAKI Z 1000 SX ABS2011–2013
    • KAWASAKI ZG 14002008–2010
    • KAWASAKI ZG 1400 ABS2008–2019
    • KAWASAKI ZG 1400 CBS2020–2021
    • KAWASAKI ZX 10002011–2013
    • KAWASAKI ZX-10 R 10002004–2015, 2017–2018
    • KAWASAKI ZX-10 R 1000 ABS2011–2018
    • KAWASAKI ZX-10 R 1000 R2016
    • KAWASAKI ZX-10 R 1000 R ABS2016
    • KAWASAKI ZX-10 R 1000 SE ABS2018
    • KAWASAKI ZX-14 14002006–2011
    • KAWASAKI ZX-14 R 14002012–2014
    • KAWASAKI ZX-14 R 1400 ABS2013–2024
    • KAWASAKI ZX-6 R 6002000–2002, 2007–2012
    • KAWASAKI ZX-6 R 6362002–2006, 2013–2019
    • KAWASAKI ZX-6 R 636 ABS2013–2019
    • KAWASAKI ZX-6 RR 6002003–2006
    • KAWASAKI ZX-9 R2002–2003
    • KAWASAKI ZZR 12002002
    • KAWASAKI ZZR 6002005–2007
    In stock
    9 in stock
    Delivery in 1-3 business days
    RON 402.10
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    TypeMotor Mount| Swingarm
    UnitsEach
    FeaturesDual Head
    MaterialCarbon Steel
    Drive Size1/2"
    Color/FinishBlack| Oxide
    Product NameSpanner Nut Socket
    Riding StyleStreet
    Research ValueLevel 2
    Measurement SystemMetric
