OHLINS

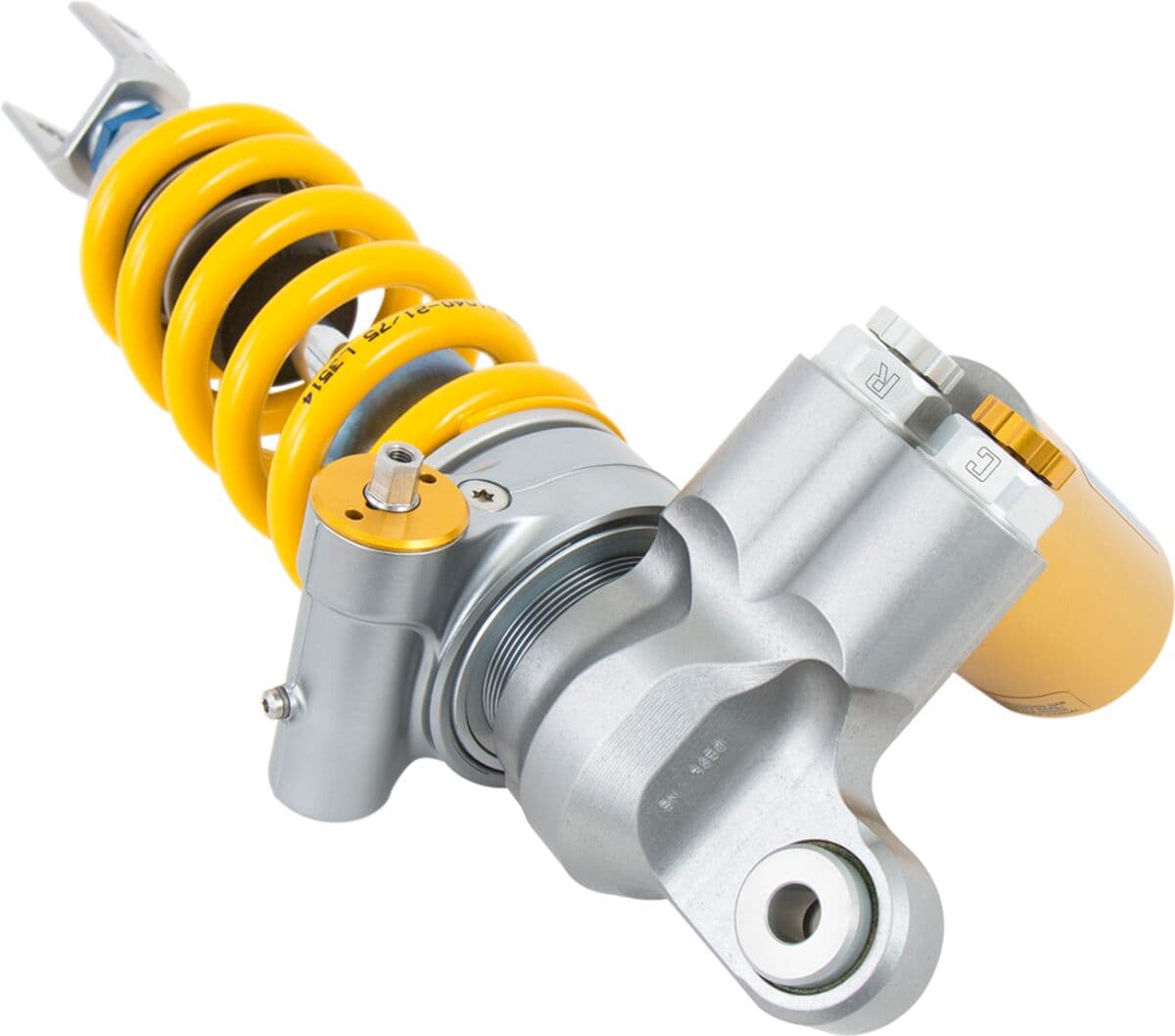

TTX GP Shock Absorber

Manufacturer CodeBM 568
Product CodeCHM-OHLINS-BM 568
  • Öhlins twin-tube shock technology

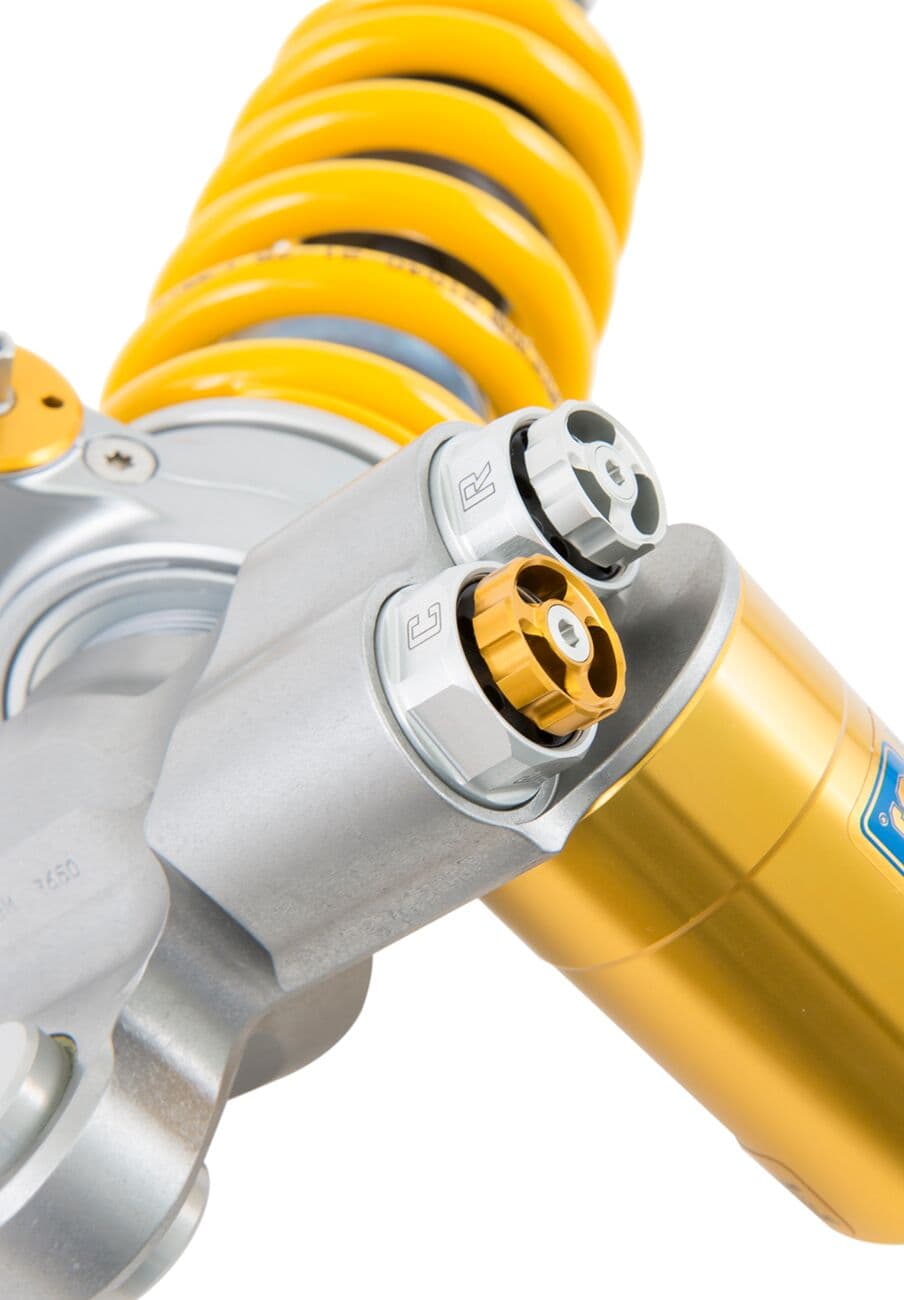

  • Features needle profiles for compression and rebound adjusters
  • Updated design results in improved oil flow guidance and volume control for more precise, consistent damping and better fine-tuning
  • Available range of preload and compression adjustment is wider
  • Rebound and compression are completely separated within the shock with no risk of cavitation
  • Completely separate compression and rebound settings
  • 36 mm shock primary piston redesigned for improved performance for better traction and feel
  • Industry standard of minimized shock-to-shock variance
  • Improved chassis feedback for superior rider feel and enhanced control


    • This product should not be used with the BMW DDC system. This product should only be used with non-electronic units.

    Vehicle fitment

    Select your vehicle in the bar above to check if this part fits.

    This part is compatible with 1 motorcycle models.
    • BMW S 1000 RR ABS2019–2022
    In stock
    2 in stock
    Delivery in 1-3 business days
    RON 9,479.51
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    TypeCoilover Twin-Tube
    ModelTTX GP
    UnitsEach
    Bore Size36,00 mm (1,42")
    Color/FinishSilver| Yellow
    Product NameShock Absorber
    Riding StyleStreet
    Damping MethodCompression
    Research ValueFinalized
    Adjustment TypeAdjustable Compression Damping| Adjustable Length| Adjustable Rebound Damping| Adjustable Spring Preload| Integrated Hydraulic Spring Preload
    Extended LengthStandard
    Bore Size Metric36.00 mm
    Mounting PositionRear
    Bore Size Imperial1.42"
    Linear Spring Rate54,00 n/mm (308,35 lb/in)
    Reservoir LocationPiggyback
    Extended Length MetricStandard
    Extended Length ImperialStandard
    Linear Spring Rate Metric54.00 n/mm
    Linear Spring Rate Imperial308.35 lb/in
