OHLINS

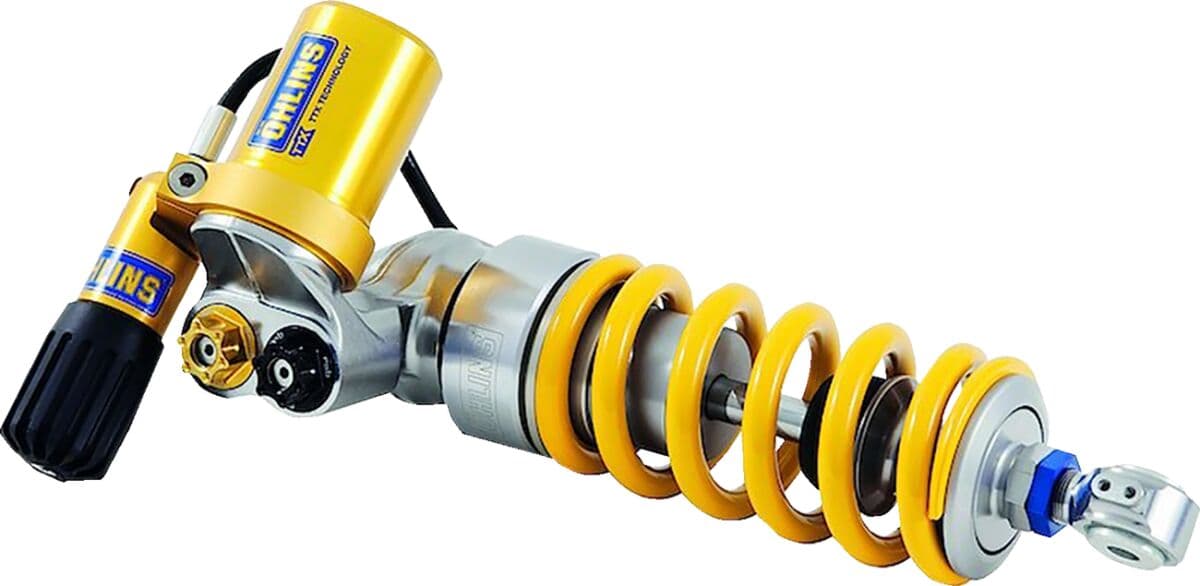

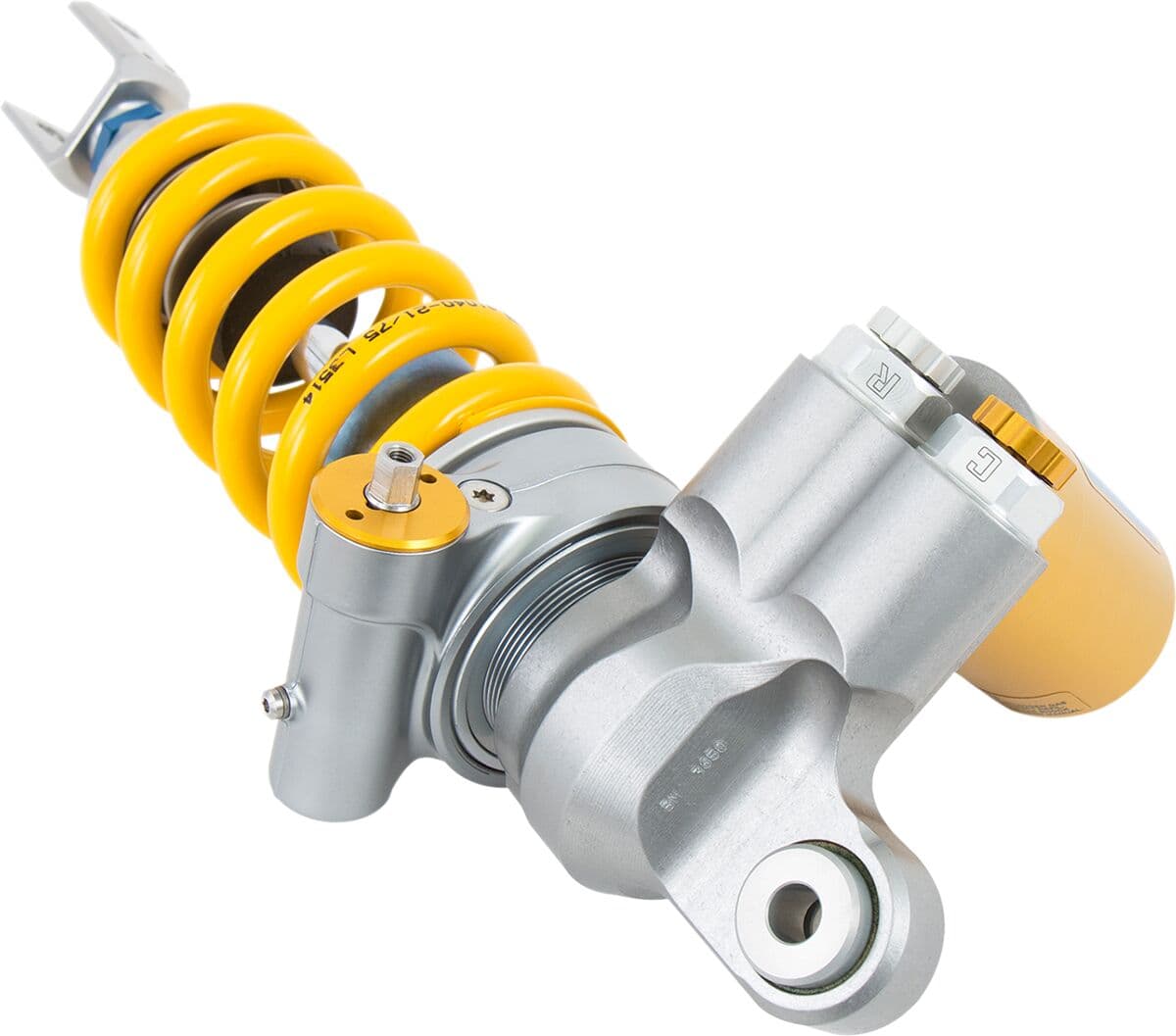

TTX GP Shock Absorber

Manufacturer CodeDU 468
Product CodeCHM-OHLINS-DU 468
  • Öhlins twin-tube shock technology

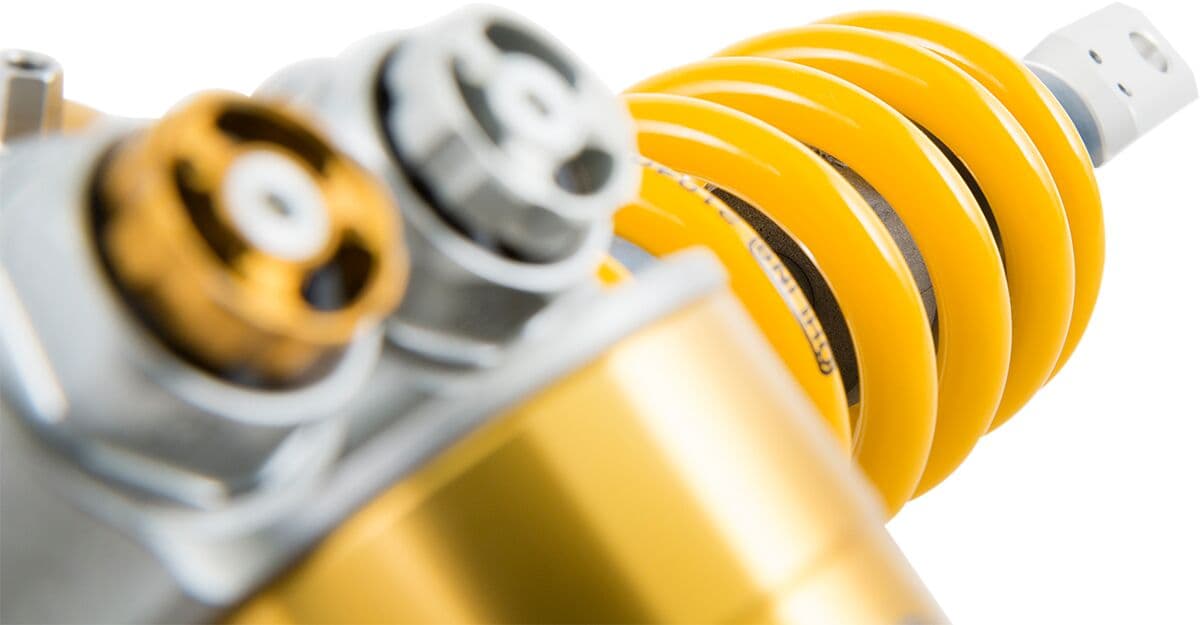

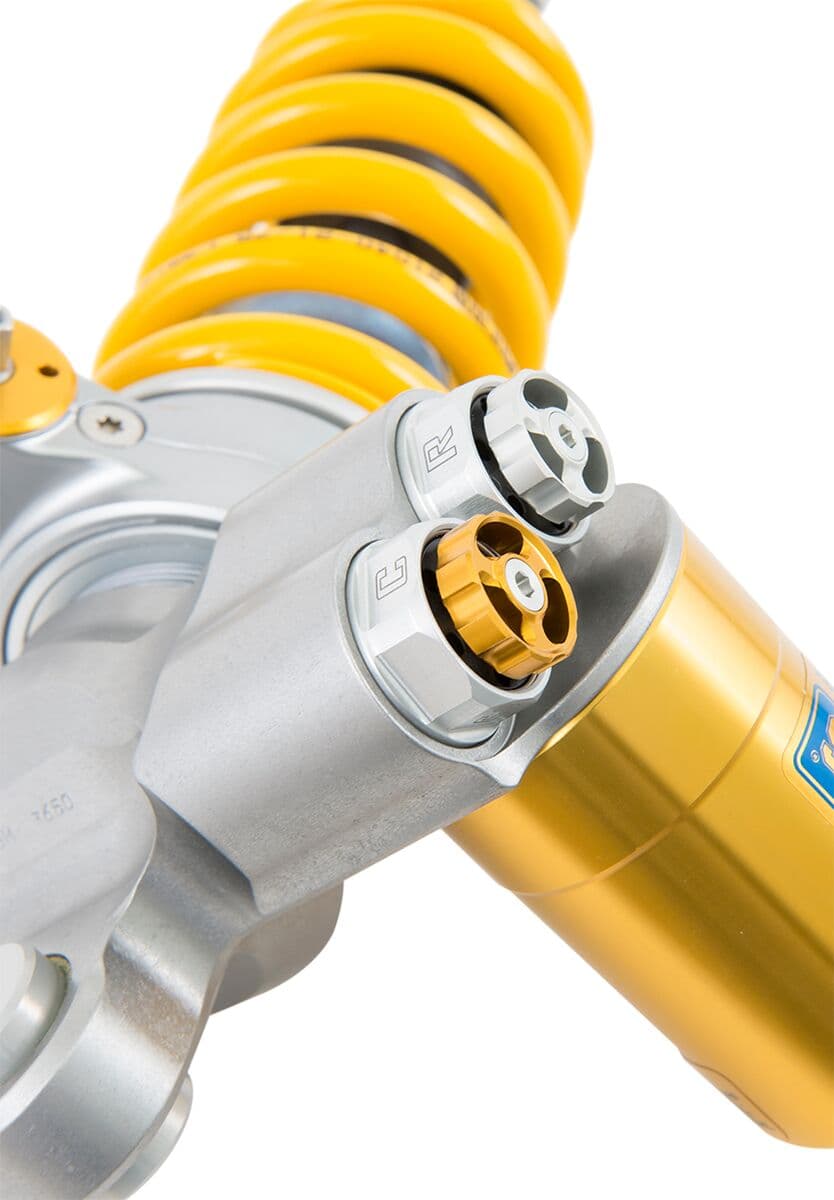

  • Features needle profiles for compression and rebound adjusters
  • Updated design results in improved oil flow guidance and volume control for more precise, consistent damping and better fine-tuning
  • Available range of preload and compression adjustment is wider
  • Rebound and compression are completely separated within the shock with no risk of cavitation
  • Completely separate compression and rebound settings
  • 36 mm shock primary piston redesigned for improved performance for better traction and feel
  • Industry standard of minimized shock-to-shock variance
  • Improved chassis feedback for superior rider feel and enhanced control


    • Fitted spring: 21040-31 (Y).

    Vehicle fitment

    Select your vehicle in the bar above to check if this part fits.

    This part is compatible with 3 motorcycle models.
    • DUCATI PANIGALE V4 1000 R ABS2019–2020
    • DUCATI PANIGALE V4 1100 ABS2018–2023
    • DUCATI PANIGALE V4 1100 S ABS2018–2023
    In stock
    2 in stock
    Delivery in 1-3 business days
    RON 9,479.51
    • Secure online paymentCard payments are processed securely by Stripe.
      stripe
    • Pay in instalments with KlarnaChoose Klarna at checkout.
      Klarna.

    Specificații

    Specificații

    TypeCoilover Twin-Tube
    ModelTTX GP
    UnitsEach
    Bore Size36,00 mm (1,42")
    Color/FinishSilver| Yellow
    Product NameShock Absorber
    Riding StyleStreet
    Damping MethodCompression
    Research ValueFinalized
    Adjustment TypeAdjustable Compression Damping| Adjustable Length| Adjustable Rebound Damping| Adjustable Spring Preload| Hose Mounted Hydraulic Spring Preload Aduster
    Extended Length310,00 mm (12,21")
    Bore Size Metric36.00 mm
    Mounting PositionRear
    Bore Size Imperial1.42"
    Linear Spring Rate95,00 n/mm (542,46 lb/in)
    Reservoir LocationPiggyback
    Extended Length Metric310.00 mm
    Extended Length Imperial12.21"
    Linear Spring Rate Metric95.00 n/mm
    Linear Spring Rate Imperial542.46 lb/in
