LEGEND SUSPENSION

+2" AXEO Performance Front Suspension

Cod Producător0414-0597
Cod ProdusCHM-LEGENDSU-0414-0597
  • Performance spring rate delivers agile handling for aggressive riders without sacrificing comfort
  • Specifically designed to increase ride height on FL touring models
  • Imporves cornering clearance, lean angles, and eliminates dragging floorboards and footpegs
  • Improves straight-line stability, high-speed cornering, and maneuverability
  • Increases resistance to bottoming out on large bumps or potholes
  • Threaded pre-load adjuster allows tuning for various rider weights and increased pre-load range
  • Reduces front-end dive and improves front tire traction under aggressive braking
  • Designed for optimum performance with Legend's 14" Revo-Arc rear suspensions

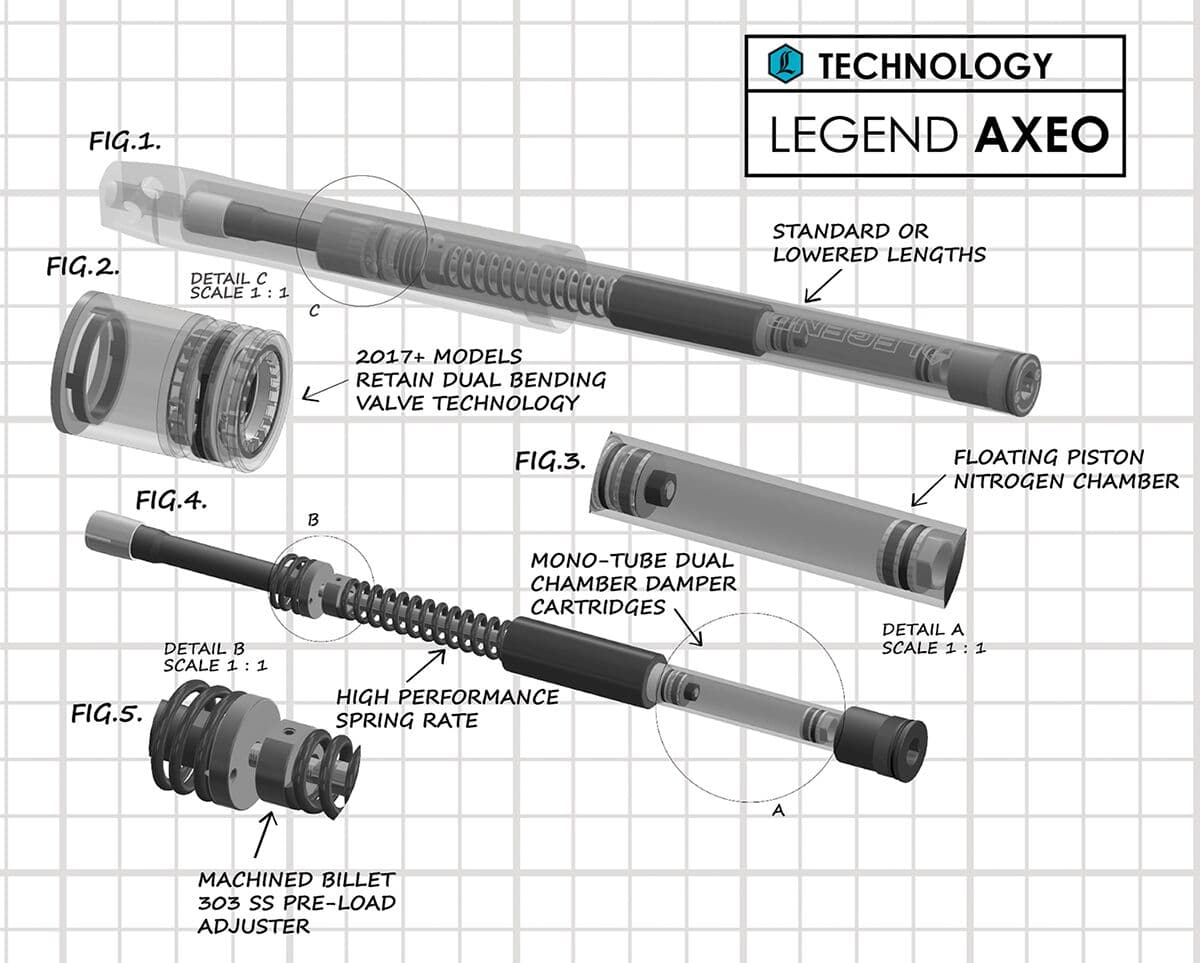

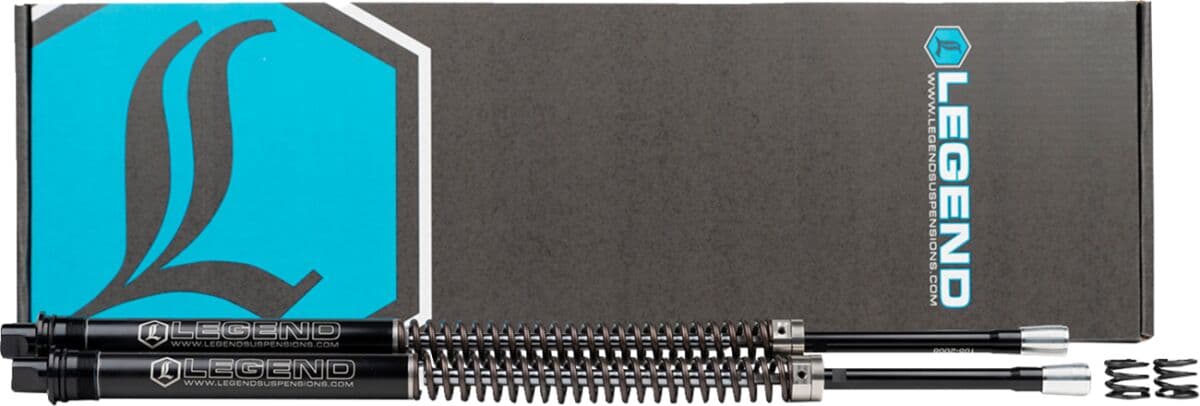

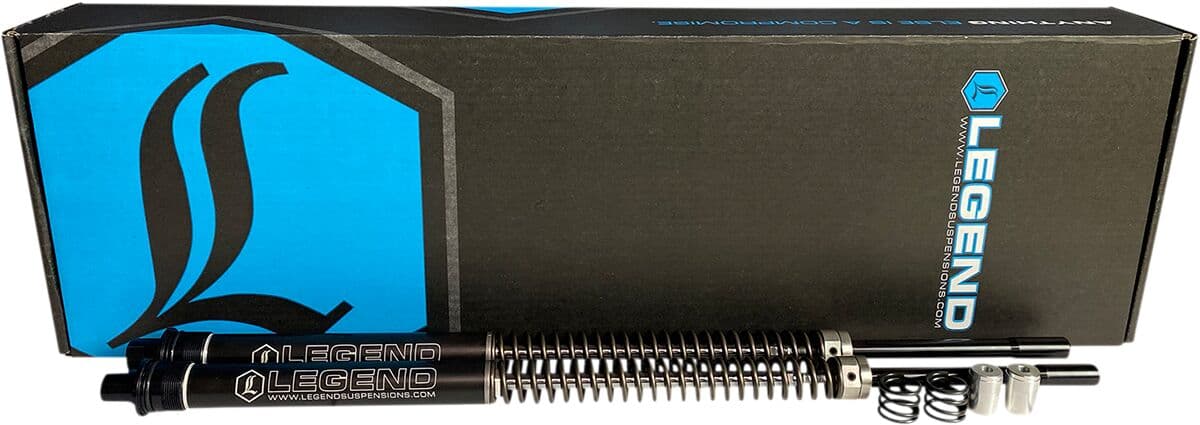

  • Includes two 2" over monotube, dual chambered damper cartridges, and two top out springs
  • Designed to be used with stock diameter front wheels
  • For Extended Fork Tubes.
  • Does not fit '23+ CVO Road Glide or CVO Street Glide models with inverted forks.


    • • This product is not designed for use with 21" or 23" front wheels. • Requires the use of Harley Davidson upper fork tubes OEM P/N 83804-09 (22.55" long). Due to the nature of the design, this front end kit will raise the overall ride height of the motorcycle. • '97-'01 models equipped with stock air forks will require additional purchase of Harley Davidson OEM P/N's 45419-80 (2) and 45733-48 (2) to install. • Part #0414-0597 requires the use of Harley-Davidson upper fork tubes OEM #83804-09 (22.55" L).

    Compatibilitate vehicul

    Selectează-ți vehiculul în bara de sus pentru a verifica dacă această piesă se potrivește.

    Această piesă este compatibilă cu 80 modele de motociclete.
    • HARLEY DAVIDSON FLHR 13401997–1998
    • HARLEY DAVIDSON FLHR 14501999–2006
    • HARLEY DAVIDSON FLHR 15842007–2011
    • HARLEY DAVIDSON FLHR 1584 ABS2008–2011
    • HARLEY DAVIDSON FLHR 16902012–2013
    • HARLEY DAVIDSON FLHR 1690 ABS2012–2013
    • HARLEY DAVIDSON FLHRC 14502004
    • HARLEY DAVIDSON FLHRC 15842007–2010
    • HARLEY DAVIDSON FLHRC 1584 ABS2008–2011
    • HARLEY DAVIDSON FLHRC 1690 ABS2011–2013
    • HARLEY DAVIDSON FLHRCI 1340 EFI1998
    • HARLEY DAVIDSON FLHRCI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLHRI 1340 EFI1997
    • HARLEY DAVIDSON FLHRI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLHRS 14502004–2006
    • HARLEY DAVIDSON FLHRS 15842007
    • HARLEY DAVIDSON FLHRSE3 18002007
    • HARLEY DAVIDSON FLHRSE4 1800 ABS2008
    • HARLEY DAVIDSON FLHRSE5 1800 ABS2013
    • HARLEY DAVIDSON FLHRSEI 15502002
    • HARLEY DAVIDSON FLHRSEI2 16902003
    • HARLEY DAVIDSON FLHRSI 1450 EFI2004–2006
    • HARLEY DAVIDSON FLHT 13401997–1998
    • HARLEY DAVIDSON FLHT 14501999–2006
    • HARLEY DAVIDSON FLHT 15842007–2010
    • HARLEY DAVIDSON FLHT 1584 ABS2008–2010
    • HARLEY DAVIDSON FLHTC 13401996–1998
    • HARLEY DAVIDSON FLHTC 14502002–2005
    • HARLEY DAVIDSON FLHTC 15842007–2011
    • HARLEY DAVIDSON FLHTC 1584 ABS2009–2011
    • HARLEY DAVIDSON FLHTC 16902012–2013
    • HARLEY DAVIDSON FLHTC 1690 ABS2011–2013
    • HARLEY DAVIDSON FLHTCI 1340 EFI1997–1998
    • HARLEY DAVIDSON FLHTCI 1450 EFI1999–2000, 2003–2006
    • HARLEY DAVIDSON FLHTCSE 1690 EFI2004
    • HARLEY DAVIDSON FLHTCSE2 1690 EFI2005
    • HARLEY DAVIDSON FLHTCU 13401997
    • HARLEY DAVIDSON FLHTCU 15842007, 2009–2011
    • HARLEY DAVIDSON FLHTCU 1584 ABS2008–2011
    • HARLEY DAVIDSON FLHTCU 16902012–2013
    • HARLEY DAVIDSON FLHTCU 1690 ABS2012–2013
    • HARLEY DAVIDSON FLHTCUI 1340 EFI1997–1998
    • HARLEY DAVIDSON FLHTCUI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLHTCUSE 16902006
    • HARLEY DAVIDSON FLHTCUSE2 18002007
    • HARLEY DAVIDSON FLHTCUSE3 1800 ABS2008
    • HARLEY DAVIDSON FLHTCUSE4 1800 ABS2009
    • HARLEY DAVIDSON FLHTCUSE5 1800 ABS2010
    • HARLEY DAVIDSON FLHTCUSE6 1800 ABS2011
    • HARLEY DAVIDSON FLHTCUSE7 1800 ABS2012
    • HARLEY DAVIDSON FLHTCUSE8 1800 ABS2013
    • HARLEY DAVIDSON FLHTI 1450 EFI2004–2006
    • HARLEY DAVIDSON FLHTK 1584 ABS2010–2011
    • HARLEY DAVIDSON FLHTK 1690 ABS2011–2013
    • HARLEY DAVIDSON FLHX 14502006
    • HARLEY DAVIDSON FLHX 15842007–2011
    • HARLEY DAVIDSON FLHX 1584 ABS2008–2011
    • HARLEY DAVIDSON FLHX 16902011–2013
    • HARLEY DAVIDSON FLHX 1690 ABS2011–2013
    • HARLEY DAVIDSON FLHXI 1450 EFI2006
    • HARLEY DAVIDSON FLHXSE 1800 ABS2010
    • HARLEY DAVIDSON FLHXSE2 1800 ABS2011
    • HARLEY DAVIDSON FLHXSE3 1800 ABS2012
    • HARLEY DAVIDSON FLTR 14501999–2003
    • HARLEY DAVIDSON FLTR 15842007–2010
    • HARLEY DAVIDSON FLTR 1584 ABS2009–2010
    • HARLEY DAVIDSON FLTRI 1340 EFI1998
    • HARLEY DAVIDSON FLTRI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLTRSE3 1800 ABS2009
    • HARLEY DAVIDSON FLTRSEI 15502000
    • HARLEY DAVIDSON FLTRSEI2 15502001
    • HARLEY DAVIDSON FLTRU 1584 ABS2011
    • HARLEY DAVIDSON FLTRU 1690 ABS2011–2013
    • HARLEY DAVIDSON FLTRUSE 1800 ABS2011
    • HARLEY DAVIDSON FLTRX 15842010–2011
    • HARLEY DAVIDSON FLTRX 1584 ABS2010–2011
    • HARLEY DAVIDSON FLTRX 16902011–2013
    • HARLEY DAVIDSON FLTRX 1690 ABS2011–2013
    • HARLEY DAVIDSON FLTRXSE 1800 ABS2012
    • HARLEY DAVIDSON FLTRXSE2 1800 ABS2013
    În stoc
    2 în stoc
    Livrare în 1-3 zile lucrătoare
    RON 6,000.88
    • Plată online securizatăPlățile cu cardul sunt procesate în siguranță prin Stripe.
      stripe
    • Plătește în rate cu KlarnaAlege Klarna la finalizarea comenzii.
      Klarna.

    Specificații

    Specificații

    TypePreload Adjustable Monotube
    ModelAXEO Performance (+2")
    StyleExtended Fork Tubes
    UnitsKit
    LengthTwo Inches Longer Than Stock
    MaterialBillet Aluminum
    Color/FinishBlack
    Product NameCartridge
    Riding StyleStreet
    Length MetricTwo Inches Longer Than Stock
    Research ValueFinalized
    Length ImperialTwo Inches Longer Than Stock
    Height AdjustmentExtends 50,80 mm (2,00")
    Fork Tube Diameter41,00 mm (1,61")
    Height Adjustment MetricExtends 50.80 mm
    Fork Tube Diameter Metric41.00 mm
    Height Adjustment ImperialExtends 2.00"
    Fork Tube Diameter Imperial1.61"
