S&S CYCLE

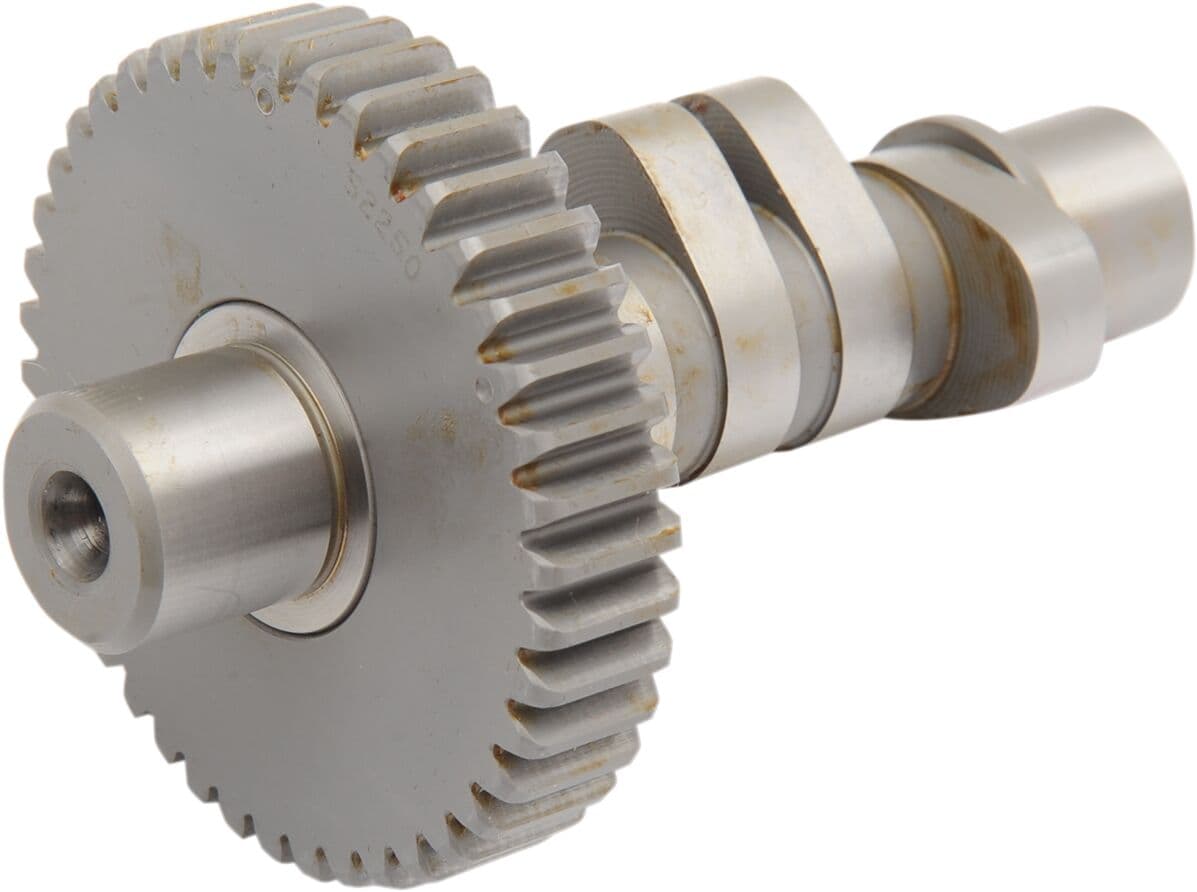

514 Camshaft

Cod Producător33-5050
Cod ProdusCHM-SSCYCLE-33-5050
  • S&S cams are tested on the dyno, street and racetrack before being offered to the public
  • With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
  • For 84" to 93" motors, not more than 9:1
  • Best response occurs in the mid range from 2500 to 5000 rpm
  • Recommend high-performance hydraulic or solid lifters
  • Made in the USA
  • Spring spacing is required.
  • Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.


    • Compatibilitate vehicul

    Selectează-ți vehiculul în bara de sus pentru a verifica dacă această piesă se potrivește.

    Această piesă este compatibilă cu 11 modele de motociclete.
    • HARLEY DAVIDSON F 12001948–1952
    • HARLEY DAVIDSON FL 12001948–1964
    • HARLEY DAVIDSON FLB 12001965–1969
    • HARLEY DAVIDSON FLE 12001953–1956
    • HARLEY DAVIDSON FLEF 12001953–1956
    • HARLEY DAVIDSON FLF 12001952–1964
    • HARLEY DAVIDSON FLFB 12001965–1969
    • HARLEY DAVIDSON FLH 12001955–1964
    • HARLEY DAVIDSON FLHB 12001965–1969
    • HARLEY DAVIDSON FLHF 12001955–1964
    • HARLEY DAVIDSON FLHFB 12001965–1969
    La comandă
    Termenul de livrare se stabilește după consultare
    RON 1,791.19
    • Plată online securizatăPlățile cu cardul sunt procesate în siguranță prin Stripe.
      stripe
    • Plătește în rate cu KlarnaAlege Klarna la finalizarea comenzii.
      Klarna.

    Specificații

    Specificații

    Grind514 Series
    UnitsEach
    ApplicationExhaust| Intake
    Intake Lift0,540" Panhead, 0,514" Shovelhead
    Intake Open23°
    Exhaust Lift0,540" Panhead, 0,514" Shovelhead
    Exhaust Open43°
    Intake Close43°
    Product NameCam
    Riding StyleStreet
    Exhaust Close23°
    Research ValueFinalized
    Intake Duration246°
    Exhaust Duration246°
    Intake Lift at TDC0,177" Panhead, 0,169" Shovelhead
    Exhaust Lift at TDC0,177" Panhead, 0,169" Shovelhead
    Intake Lift Imperial0.540" Panhead, 0.514" Shovelhead
    Intake Open Imperial23°
    Exhaust Lift Imperial0.540" Panhead, 0.514" Shovelhead
    Exhaust Open Imperial43°
    Intake Close Imperial43°
    Exhaust Close Imperial23°
    Intake Duration Imperial246°
    Exhaust Duration Imperial246°
    Intake Lift at TDC Imperial0.177" Panhead, 0.169" Shovelhead
    Exhaust Lift at TDC Imperial0.177" Panhead, 0.169" Shovelhead
