S&S CYCLE

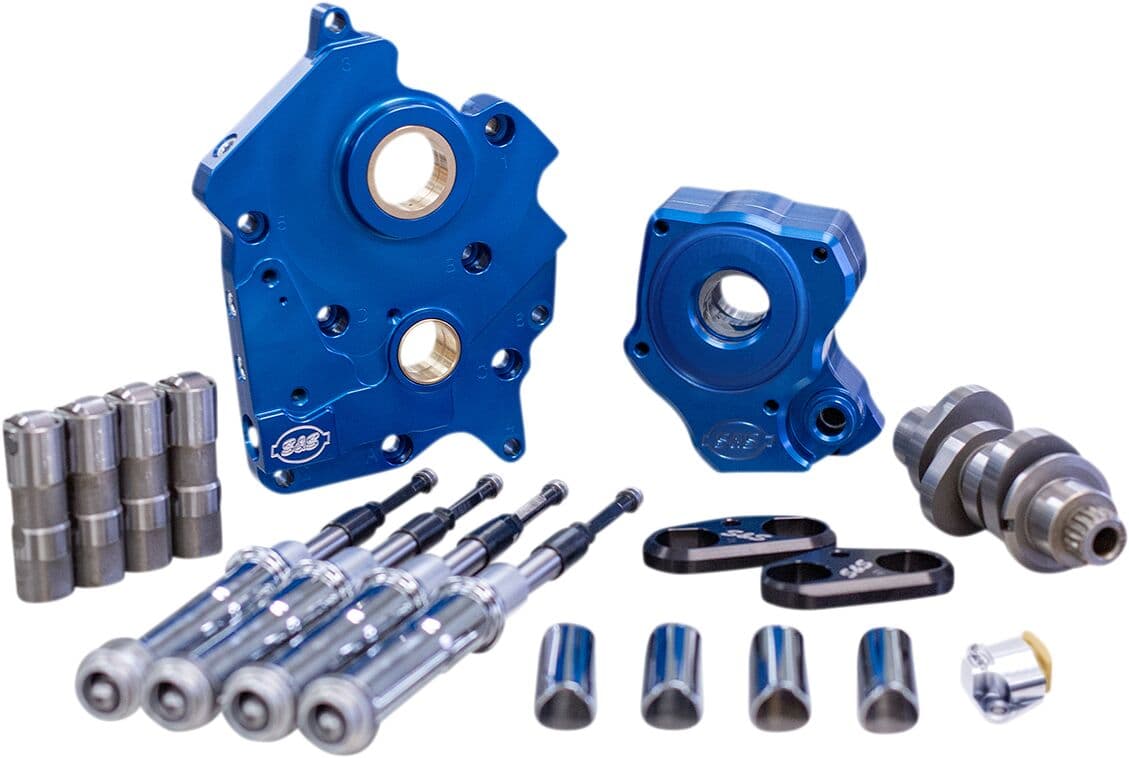

Cam Chest Kit for M8

Cod Producător310-1000B
Cod ProdusCHM-SSCYCLE-310-1000B
  • Oil Pump/Cam Plate:
  • Precision machined from billet aluminum
  • Blue anodized finish
  • Passage plugs removable for servicing
  • Independant scavenge sections for flywheel cavity and cam chest
  • Debris screens in both pickups
  • Magnet in cam chest to help stop debris from entering oil pump
  • Increased flow capacity on both feed and scavenge side
  • Adjustable pressure relief vale is adjustable with unit installed in engine
  • Includes S&S high performance cam chain tensioner
  • Pushrods:
  • Quickee pushrods
  • Tappets:
  • S&S precision tappets
  • Tappet Cuffs:
  • Hard anodized black coating
  • Billet aluminum construction
  • Stronger than stock material eliminates distortion
  • Improves tappet stability in high lift and high rpm situations
  • Cam:
  • Includes all gaskets, bearings and hardware for installation
  • Made in the USA


    • 475 is a bolt-in 100 horsepower cam. Kit Includes: • Cam Chain Tensioner • 475C Camshaft Kit • Quickee Pushrod Kit with Chrome Covers • Tappet Cuffs Lifter Guide • Oil Pump with Cam Plate • Hydraulic Tappet Set

    Compatibilitate vehicul

    Selectează-ți vehiculul în bara de sus pentru a verifica dacă această piesă se potrivește.

    Această piesă este compatibilă cu 17 modele de motociclete.
    • HARLEY DAVIDSON FLHFB 1868 ABS2023
    • HARLEY DAVIDSON FLHTCU 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHTCUTG 1868 ABS2020–2025
    • HARLEY DAVIDSON FLHTCUTGSE 1923 ABS2020–2022
    • HARLEY DAVIDSON FLHTK 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHTK 1868 ABS2019–2024
    • HARLEY DAVIDSON FLHTKL 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHTKL 1868 ABS2019
    • HARLEY DAVIDSON FLHTKSE 1868 ABS2017
    • HARLEY DAVIDSON FLHTKSE 1923 ABS2018–2021
    • HARLEY DAVIDSON FLHXSE 1868 ABS2017
    • HARLEY DAVIDSON FLHXSE 1923 ABS2018–2022
    • HARLEY DAVIDSON FLTRK 1868 ABS2020–2024
    • HARLEY DAVIDSON FLTRKSE 1923 ABS2022–2023
    • HARLEY DAVIDSON FLTRU 1750 ABS2017–2018
    • HARLEY DAVIDSON FLTRU 1868 ABS2019
    • HARLEY DAVIDSON FLTRXSE 1923 ABS2018–2022
    La comandă
    Termenul de livrare se stabilește după consultare
    RON 13,208.38
    • Plată online securizatăPlățile cu cardul sunt procesate în siguranță prin Stripe.
      stripe
    • Plătește în rate cu KlarnaAlege Klarna la finalizarea comenzii.
      Klarna.

    Specificații

    Specificații

    TypeChain
    Grind475C
    Model475 HP
    UnitsKit
    FeaturesChrome Pushrod Tubes
    ApplicationWater Cooled
    Intake Lift0,475"
    Intake Open6,2° Front, 2,2° Rear
    Exhaust Lift0,475"
    Exhaust Open55,5° Front, 52,2° Rear
    Intake Close27,2° Front, 31,2° Rear
    Product NameCamchest Kit
    Riding StyleStreet
    Exhaust Close28,5° Front, 20,2° Rear
    Intake Duration213,5° Front, 213,5° Rear
    Exhaust Duration263,9° Front, 252,5° Rear
    Intake Lift at TDC0,107" Front, 0,093" Rear
    Exhaust Lift at TDC0,208" Front, 0,170" Rear
    Intake Lift Imperial0.475"
    Intake Open Imperial6.2° Front, 2.2° Rear
    Exhaust Lift Imperial0.475"
    Exhaust Open Imperial55.5° Front, 52.2° Rear
    Intake Close Imperial27.2° Front, 31.2° Rear
    Exhaust Close Imperial28.5° Front, 20.2° Rear
    Intake Lobe Centerline100,5° Front, 104,5° Rear
    Exhaust Lobe Centerline103,5° Front, 106,0° Rear
    Intake Duration Imperial213.5° Front, 213.5° Rear
    Exhaust Duration Imperial263.9° Front, 252.5° Rear
    Intake Lift at TDC Imperial0.107" Front, 0.093" Rear
    Exhaust Lift at TDC Imperial0.208" Front, 0.170" Rear
    Intake Lobe Centerline Imperial100.5° Front, 104.5° Rear
    Exhaust Lobe Centerline Imperial103.5° Front, 106.0° Rear
