ANDREWS

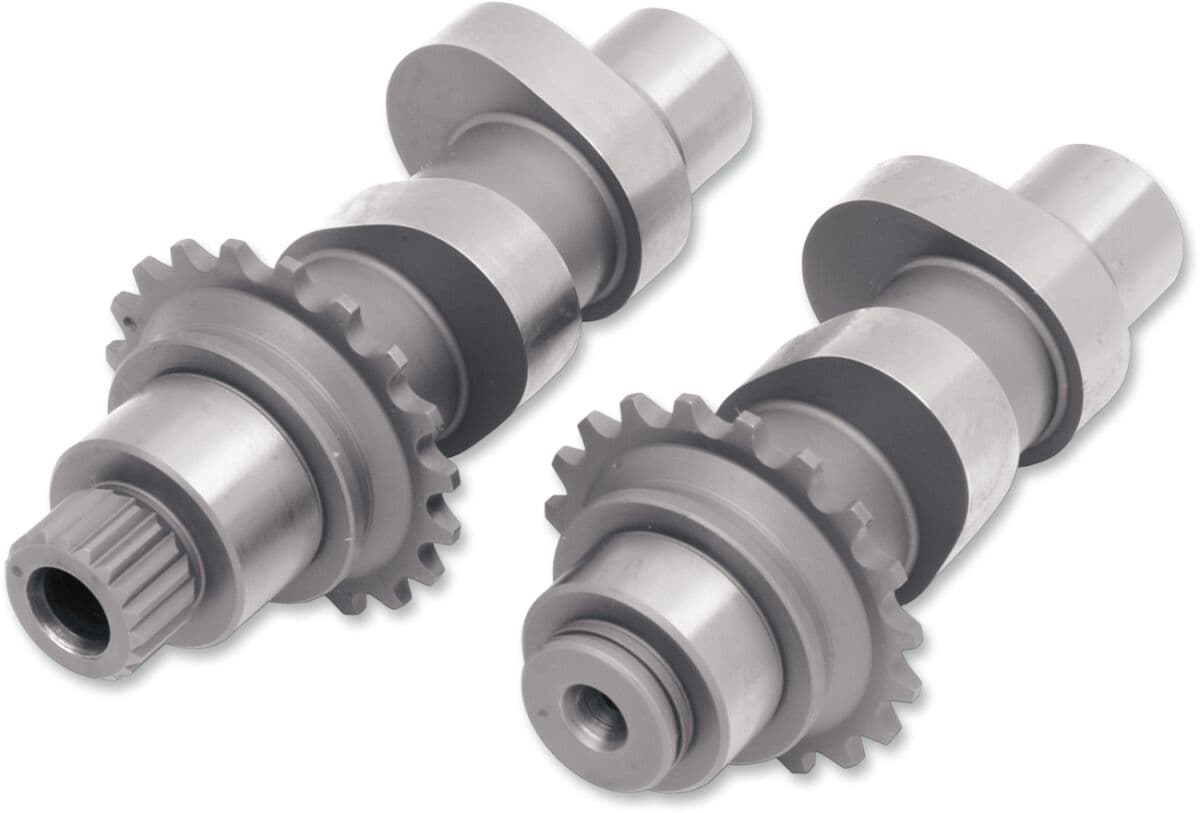

Conversion Chain Driven Cam

Cod Producător216821
Cod ProdusCHM-ANDREWS-216821
  • Upgrades '99–'06 Twin Cam (except '06 Dyna) to late-style roller chains and hydraulic tensioners
  • Engineered for use with stock lifters; requires '07-'17 cam plate, oil pump, sprockets, chains, and hydraulic adjusters (sold separately)
  • Performance output matches original Andrews profiles built for same-generation grinds
  • Made in the USA
  • '99-'06 Twin Cam motors (except '06 Dyna) cannot use standard '07-'17 cams due to journal size split. Standard late-model cams feature a 1.000" diameter, while earlier motors require the 0.875" outer bearing journal engineered into this "N" series.
  • '99-'01 model motors require Andrews rear cam sprocket . '02-'06 models must reuse the stock factory rear cam sprocket (OEM #25728-06).
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.


    • Bolt-in cams with more torque at low and middle range 1700 - 4800 rpm. Similar to EV23 for heavy bikes. Ideal for heavy bikes with stock compression ratios and stock pistons. Can be used with stock valve springs and tappets.

    Compatibilitate vehicul

    Selectează-ți vehiculul în bara de sus pentru a verifica dacă această piesă se potrivește.

    Această piesă este compatibilă cu 61 modele de motociclete.
    • HARLEY DAVIDSON FLHR 14501999–2006
    • HARLEY DAVIDSON FLHRC 14502004
    • HARLEY DAVIDSON FLHRCI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLHRI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLHRS 14502004–2006
    • HARLEY DAVIDSON FLHRSEI 15502002
    • HARLEY DAVIDSON FLHRSEI2 16902003
    • HARLEY DAVIDSON FLHRSI 1450 EFI2004–2006
    • HARLEY DAVIDSON FLHT 14501999–2006
    • HARLEY DAVIDSON FLHTC 14502002–2005
    • HARLEY DAVIDSON FLHTCI 1450 EFI1999–2000, 2003–2006
    • HARLEY DAVIDSON FLHTCSE 1690 EFI2004
    • HARLEY DAVIDSON FLHTCSE2 1690 EFI2005
    • HARLEY DAVIDSON FLHTCUI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLHTCUSE 16902006
    • HARLEY DAVIDSON FLHTI 1450 EFI2004–2006
    • HARLEY DAVIDSON FLHX 14502006
    • HARLEY DAVIDSON FLHXI 1450 EFI2006
    • HARLEY DAVIDSON FLST 14502006
    • HARLEY DAVIDSON FLSTC 14502000–2006
    • HARLEY DAVIDSON FLSTCI 1450 EFI2001–2006
    • HARLEY DAVIDSON FLSTF 14502000–2006
    • HARLEY DAVIDSON FLSTFI 1450 EFI2001–2006
    • HARLEY DAVIDSON FLSTFI 1550 EFI2005
    • HARLEY DAVIDSON FLSTFSE 16902005
    • HARLEY DAVIDSON FLSTFSE2 16902006
    • HARLEY DAVIDSON FLSTI 1450 EFI2006
    • HARLEY DAVIDSON FLSTN 14502005–2006
    • HARLEY DAVIDSON FLSTNI 1450 EFI2005–2006
    • HARLEY DAVIDSON FLSTS 14502000–2003
    • HARLEY DAVIDSON FLSTSC 14502005–2006
    • HARLEY DAVIDSON FLSTSCI 1450 EFI2005–2006
    • HARLEY DAVIDSON FLSTSI 1450 EFI2003
    • HARLEY DAVIDSON FLTR 14501999–2003
    • HARLEY DAVIDSON FLTRI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLTRSEI 15502000
    • HARLEY DAVIDSON FLTRSEI2 15502001
    • HARLEY DAVIDSON FXD 14501999–2005
    • HARLEY DAVIDSON FXDC 14502005
    • HARLEY DAVIDSON FXDCI 1450 EFI2005
    • HARLEY DAVIDSON FXDI 1450 EFI2004–2005
    • HARLEY DAVIDSON FXDL 14501999–2005
    • HARLEY DAVIDSON FXDLI 1450 EFI2004–2005
    • HARLEY DAVIDSON FXDS-CON 13401999–2000
    • HARLEY DAVIDSON FXDWG 14501999–2005
    • HARLEY DAVIDSON FXDWG2 14502001
    • HARLEY DAVIDSON FXDWG3 14502002
    • HARLEY DAVIDSON FXDWGI 1450 EFI2004–2005
    • HARLEY DAVIDSON FXDX 14501999–2004
    • HARLEY DAVIDSON FXDXI 1450 EFI2004–2005
    • HARLEY DAVIDSON FXDXT 14502001–2003
    • HARLEY DAVIDSON FXST 14502000–2006
    • HARLEY DAVIDSON FXSTB 14502000–2006
    • HARLEY DAVIDSON FXSTBI 1450 EFI2003–2006
    • HARLEY DAVIDSON FXSTD 14502000–2006
    • HARLEY DAVIDSON FXSTDI 1450 EFI2001–2006
    • HARLEY DAVIDSON FXSTDSE 15502003
    • HARLEY DAVIDSON FXSTDSE2 15502004
    • HARLEY DAVIDSON FXSTI 1450 EFI2003–2006
    • HARLEY DAVIDSON FXSTS 14502000–2006
    • HARLEY DAVIDSON FXSTSI 1450 EFI2003–2006
    În stoc
    10 în stoc
    Livrare în 1-3 zile lucrătoare
    RON 2,638.28
    • Plată online securizatăPlățile cu cardul sunt procesate în siguranță prin Stripe.
      stripe
    • Plătește în rate cu KlarnaAlege Klarna la finalizarea comenzii.
      Klarna.

    Specificații

    Specificații

    TypeChain Conversion
    Grind21 Series
    ModelN Series
    UnitsPair
    ApplicationExhaust| Intake
    Intake Lift0,498"
    Intake Open10°
    Exhaust Lift0,498"
    Exhaust Open40°
    Intake Close30°
    Product NameCam Kit
    Riding StyleStreet
    Exhaust Close8°
    Research ValueFinalized
    Intake Duration255°
    Exhaust Duration228°
    Intake Lift at TDC0,134"
    Exhaust Lift at TDC0,121"
    Intake Lift Imperial0.498"
    Intake Open Imperial10°
    Exhaust Lift Imperial0.498"
    Exhaust Open Imperial40°
    Intake Close Imperial30°
    Exhaust Close Imperial8°
    Intake Lobe Centerline100°
    Exhaust Lobe Centerline106°
    Intake Duration Imperial255°
    Exhaust Duration Imperial228°
    Intake Lift at TDC Imperial0.134"
    Exhaust Lift at TDC Imperial0.121"
    Intake Lobe Centerline Imperial100°
    Exhaust Lobe Centerline Imperial106°
