KOSO NORTH AMERICA

D2 LCD Multifunction Meter

Cod ProducătorBA080030
Cod ProdusCHM-KOSONORT-BA080030

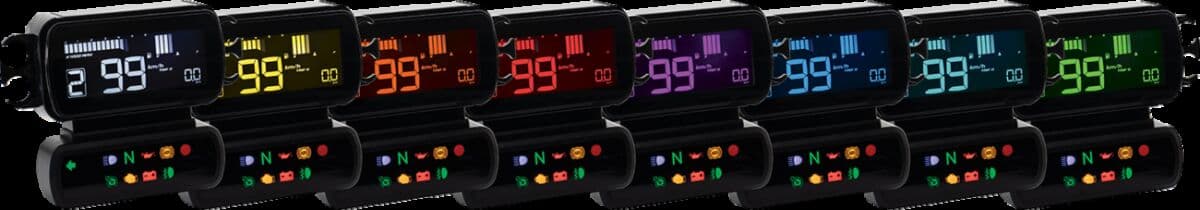

  • High quality plug & play meter that is equipped with an 8-color changeable LCD display

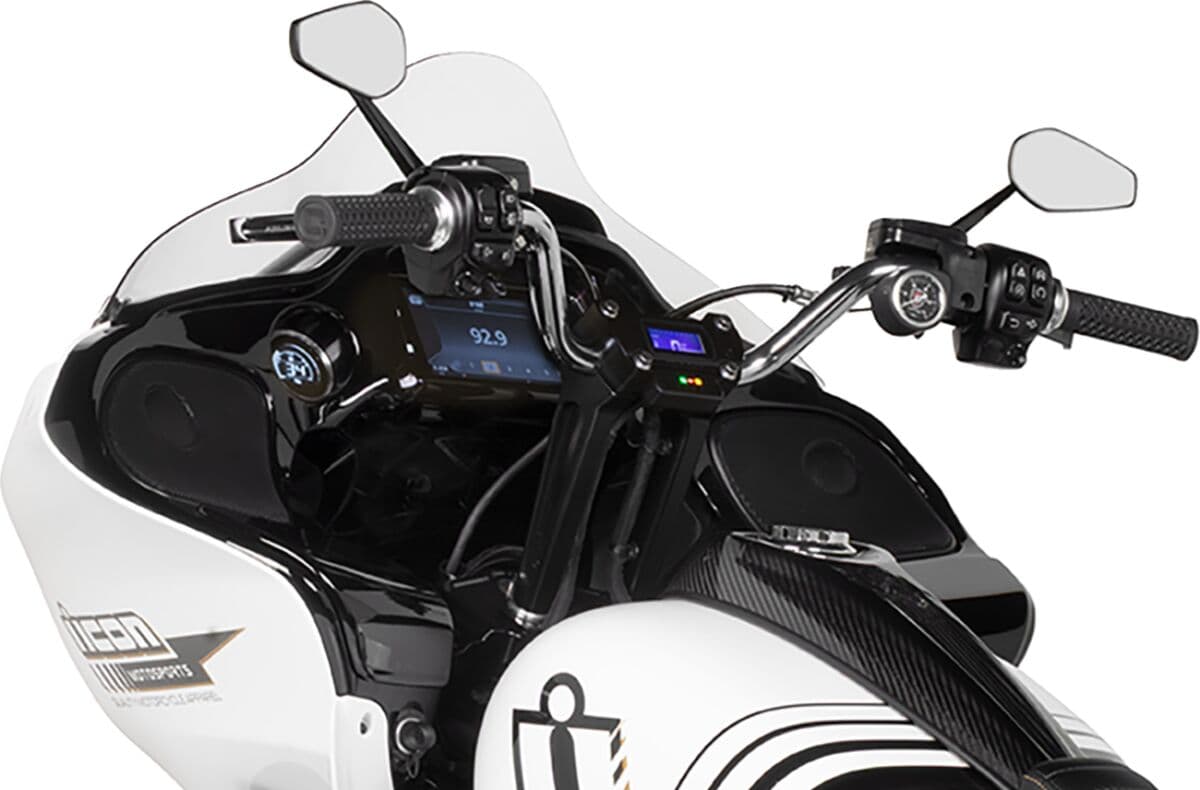

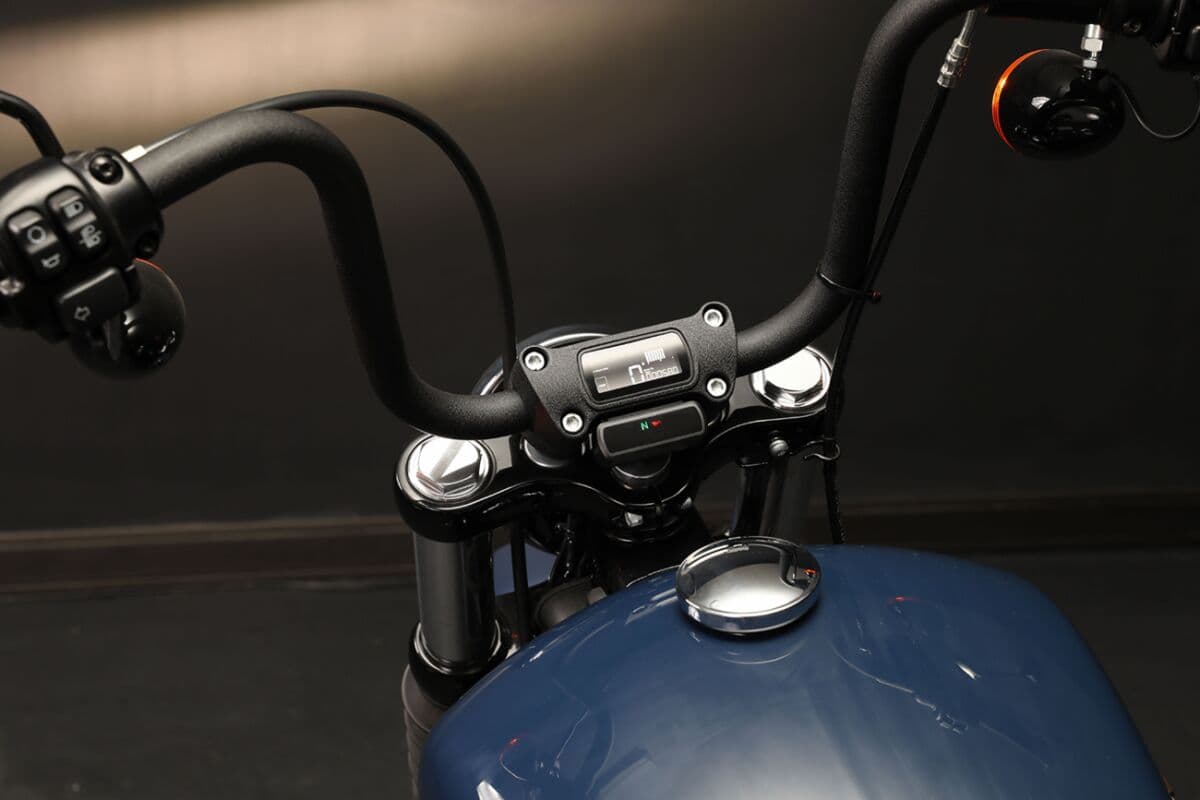

  • Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)

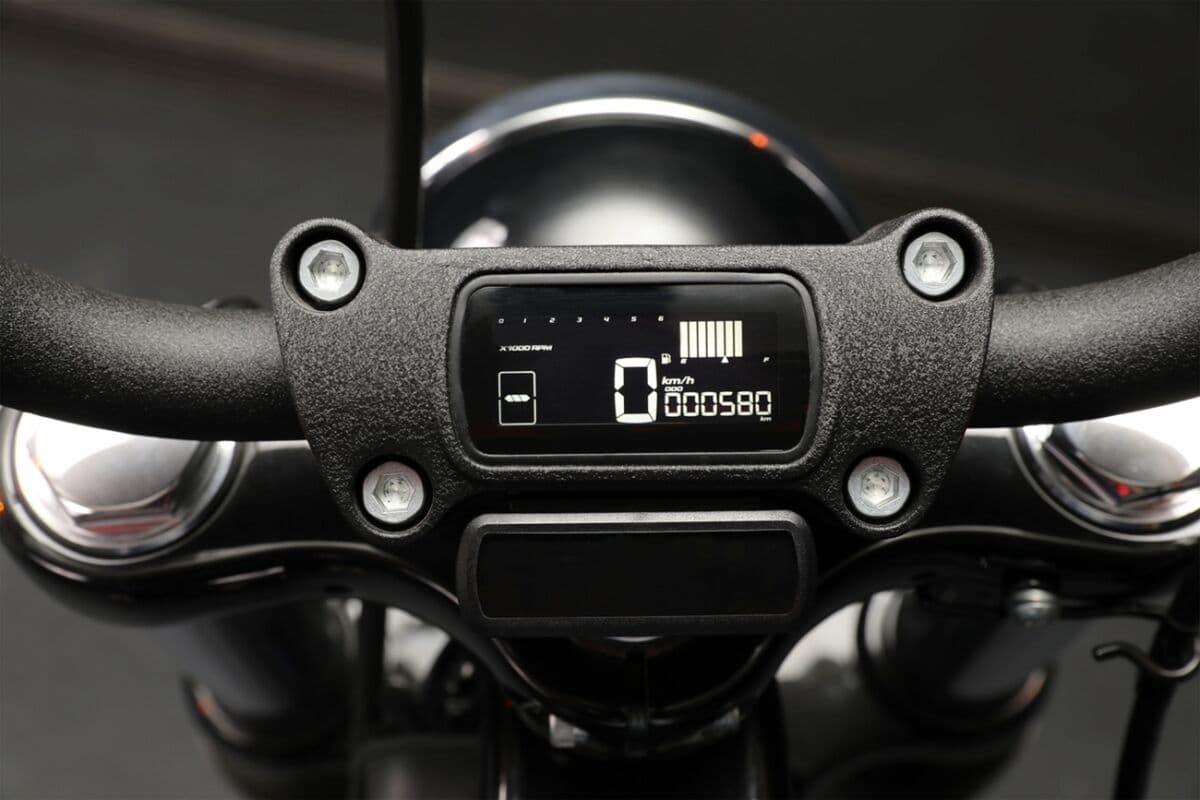

  • Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
  • Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
  • Plugs directly into the stock harness and works directly with CANBUS system
  • Display range: 0-124 mph
  • Effective temperature range: -4°F-185°F (-20°C-85°C)
  • 12VDC battery voltage
  • Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
  • XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.

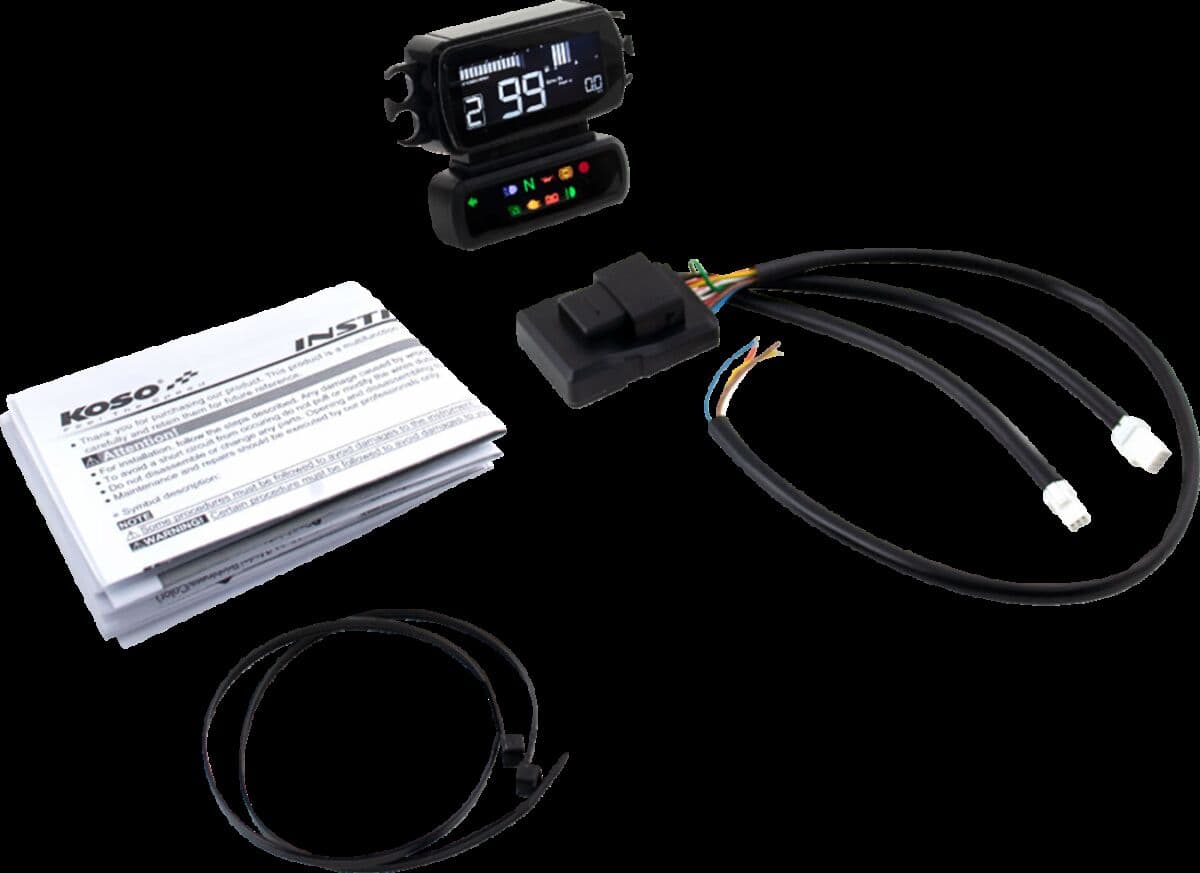

  • Kit contains: 1 x LCD Meter, 1 x Meter adapter box and 1 x Zip tie (4.6 x 300mm)

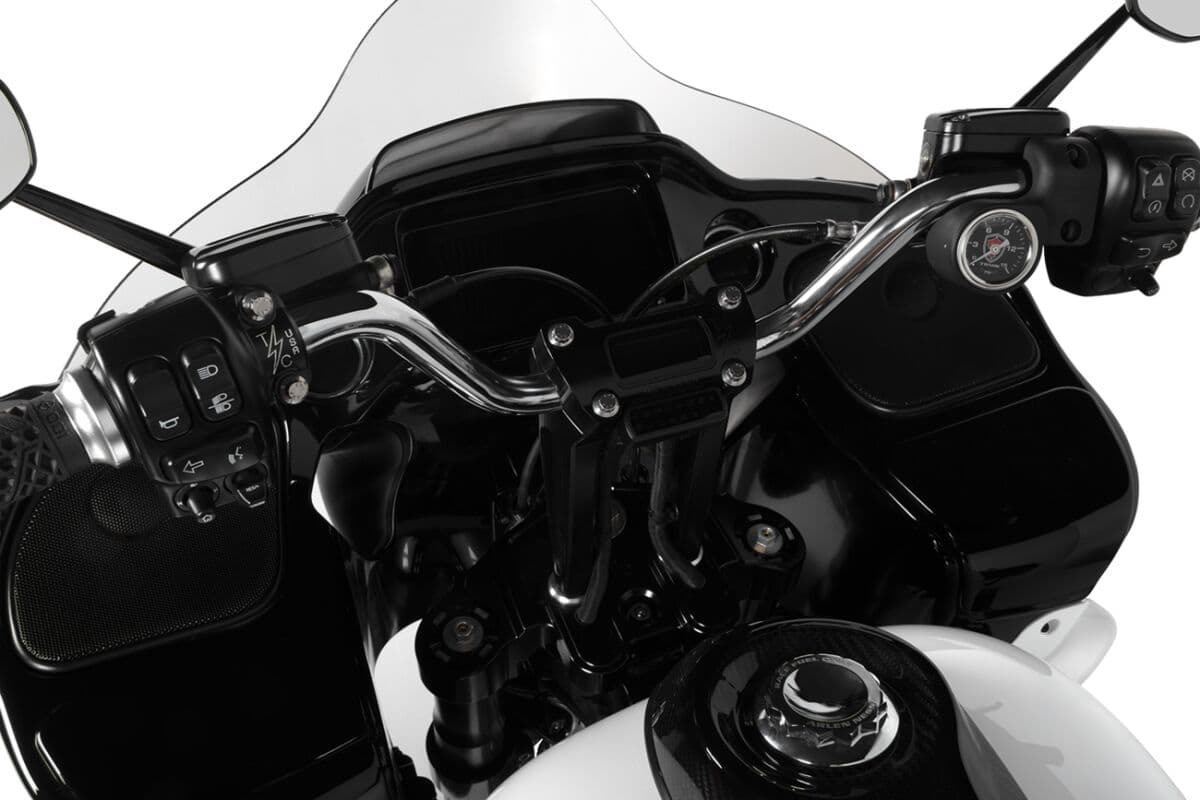

  • The installation images are for demonstration purposes only. The plate is not included.


    • Compatibilitate vehicul

    Selectează-ți vehiculul în bara de sus pentru a verifica dacă această piesă se potrivește.

    Această piesă este compatibilă cu 36 modele de motociclete.
    • HARLEY DAVIDSON FLH 1868 ABS2021
    • HARLEY DAVIDSON FLHR 17502017–2018
    • HARLEY DAVIDSON FLHR 1750 ABS2017–2018, 2021–2022
    • HARLEY DAVIDSON FLHRXS 1868 ABS2021–2022
    • HARLEY DAVIDSON FLHT 1750 ABS2019–2022
    • HARLEY DAVIDSON FLHTCU 1690 ABS2014–2016
    • HARLEY DAVIDSON FLHTCU 1750 ABS2017–2019
    • HARLEY DAVIDSON FLHTCUL 1690 ABS2015–2016
    • HARLEY DAVIDSON FLHTK 1690 ABS2014–2016
    • HARLEY DAVIDSON FLHTK 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHTK 1868 ABS2019–2023
    • HARLEY DAVIDSON FLHTKL 1690 ABS2015–2016
    • HARLEY DAVIDSON FLHTKL 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHTKL 1868 ABS2019
    • HARLEY DAVIDSON FLHX 16902014–2016
    • HARLEY DAVIDSON FLHX 1690 ABS2014–2016
    • HARLEY DAVIDSON FLHX 17502017–2019
    • HARLEY DAVIDSON FLHX 1750 ABS2017–2023
    • HARLEY DAVIDSON FLHXS 1690 ABS2014–2016
    • HARLEY DAVIDSON FLHXS 1750 ABS2017–2018
    • HARLEY DAVIDSON FLHXS 1868 ABS2019–2023
    • HARLEY DAVIDSON FLHXSE 1923 ABS2019
    • HARLEY DAVIDSON FLHXST 1923 ABS2022–2023
    • HARLEY DAVIDSON FLTRK 1868 ABS2020–2023
    • HARLEY DAVIDSON FLTRT 1868 ABS2023
    • HARLEY DAVIDSON FLTRU 1690 ABS2016
    • HARLEY DAVIDSON FLTRU 1750 ABS2017–2018
    • HARLEY DAVIDSON FLTRU 1868 ABS2019
    • HARLEY DAVIDSON FLTRX 16902015–2016
    • HARLEY DAVIDSON FLTRX 1690 ABS2015–2016
    • HARLEY DAVIDSON FLTRX 17502017–2019
    • HARLEY DAVIDSON FLTRX 1750 ABS2017–2023
    • HARLEY DAVIDSON FLTRXS 1690 ABS2015–2016
    • HARLEY DAVIDSON FLTRXS 1750 ABS2017–2018
    • HARLEY DAVIDSON FLTRXS 1868 ABS2019–2023
    • HARLEY DAVIDSON FLTRXST 1923 ABS2022–2023
    În stoc
    10 în stoc
    Livrare în 1-3 zile lucrătoare
    RON 1,702.55
    • Plată online securizatăPlățile cu cardul sunt procesate în siguranță prin Stripe.
      stripe
    • Plătește în rate cu KlarnaAlege Klarna la finalizarea comenzii.
      Klarna.

    Specificații

    Specificații

    TypeMulti-Function Speedometer
    Depth66 mm (2-5/8")
    ModelD2
    UnitsKit
    Width27 mm (1-1/16")
    Length88 mm (3-7/16")
    Face ColorBlack
    Calibration0 kph - 199 kph (0 mph - 124 mph)
    Depth Metric66 mm
    Product NameGauge
    Riding StyleStreet
    Width Metric27 mm
    Housing ColorBlack
    Length Metric88 mm
    Depth Imperial2-5/8"
    Research ValueFinalized
    Width Imperial1-1/16"
    Length Imperial3-7/16"
    Calibration Metric0 kph - 199 kph
    Calibration Imperial0 mph - 124 mph
