MAGNUM SHIELDING

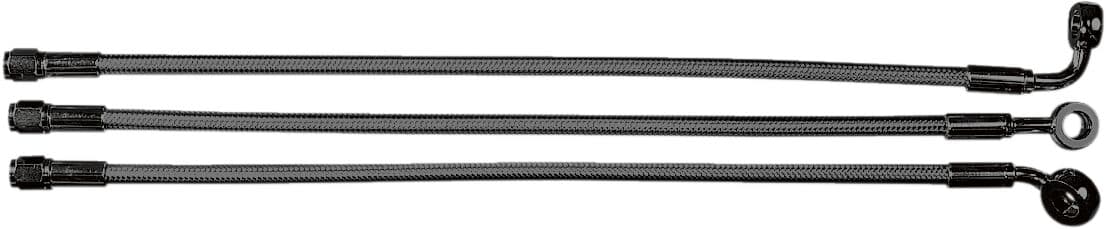

Designer Series Braided Non-ABS Front Brake Line Kit

Cod Producător47119
Cod ProdusCHM-MAGNUMSH-47119
  • Brake kits utilize a superior two-piece design consisting of a direct fit lower assembly used in conjunction with alternative length upper lines
  • All brazed manifold construction eliminates leaks, alignment problems, and unattractive threaded connections for a sleek appearance
  • Inner PTFE tubing braided with aramid reinforcement provides the ultimate in high performance by greatly reducing line expansion
  • AN-3 connections for easy installations
  • Made in the U.S.A.
  • Alternative fitments: Due to handlebar changes, fitment options are accommodated with the upper line only. You may prefer to use a different length or banjo angle based your specific routing.
  • Upper line length is determined by measuring the routing path from the top of the lower triple tree to the master cylinder. The upper and lower connection is made at this point.
  • Non-stock applications require taking a measurement for the upper brake line length and banjo angle to ensure correct fitment.
  • Non-ABS Models - one upper and lower kit is required - two kits per bike.


    • Compatibilitate vehicul

    Selectează-ți vehiculul în bara de sus pentru a verifica dacă această piesă se potrivește.

    Această piesă este compatibilă cu 15 modele de motociclete.
    • HARLEY DAVIDSON FLHT 15842008–2009
    • HARLEY DAVIDSON FLHTC 13401996–1998
    • HARLEY DAVIDSON FLHTC 14502002–2005
    • HARLEY DAVIDSON FLHTCI 1340 EFI1996–1998
    • HARLEY DAVIDSON FLHTCI 1450 EFI1999–2000, 2003–2006
    • HARLEY DAVIDSON FLHTCU 13401996–1997
    • HARLEY DAVIDSON FLHTCU 15842007, 2009–2011
    • HARLEY DAVIDSON FLHTCU 16902012–2013
    • HARLEY DAVIDSON FLHTCUI 1340 EFI1995–1998
    • HARLEY DAVIDSON FLHTCUI 1450 EFI1999–2006
    • HARLEY DAVIDSON FLHX 14502006
    • HARLEY DAVIDSON FLHX 15842007–2011
    • HARLEY DAVIDSON FLHX 16902011–2013
    • HARLEY DAVIDSON FLHXI 1450 EFI2006
    • HARLEY DAVIDSON FLTCU 13401995–1996
    La comandă
    Termenul de livrare se stabilește după consultare
    RON 509.86
    • Plată online securizatăPlățile cu cardul sunt procesate în siguranță prin Stripe.
      stripe
    • Plătește în rate cu KlarnaAlege Klarna la finalizarea comenzii.
      Klarna.

    Specificații

    Specificații

    DiscDual
    TypeStandard
    ModelDesigner Series
    UnitsEach
    Length48,5 cm (19")
    MaterialStainless Steel
    Color/FinishBlack| Black Pearl
    Product NameBrake Line
    Riding StyleStreet
    Length Metric48.5 cm
    Research ValueFinalized
    Length Imperial19"
    Mounting PositionFront| Upper
    For Braking Systemwithout ABS
    Master Cylinder Banjo10 mm 35° Banjo Fitting
